THREE TIER BOOKSHELF
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
Phillips-Head screwdriver
Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean smooth surface
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight. Do not place over heat or Air conditioning vents.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.

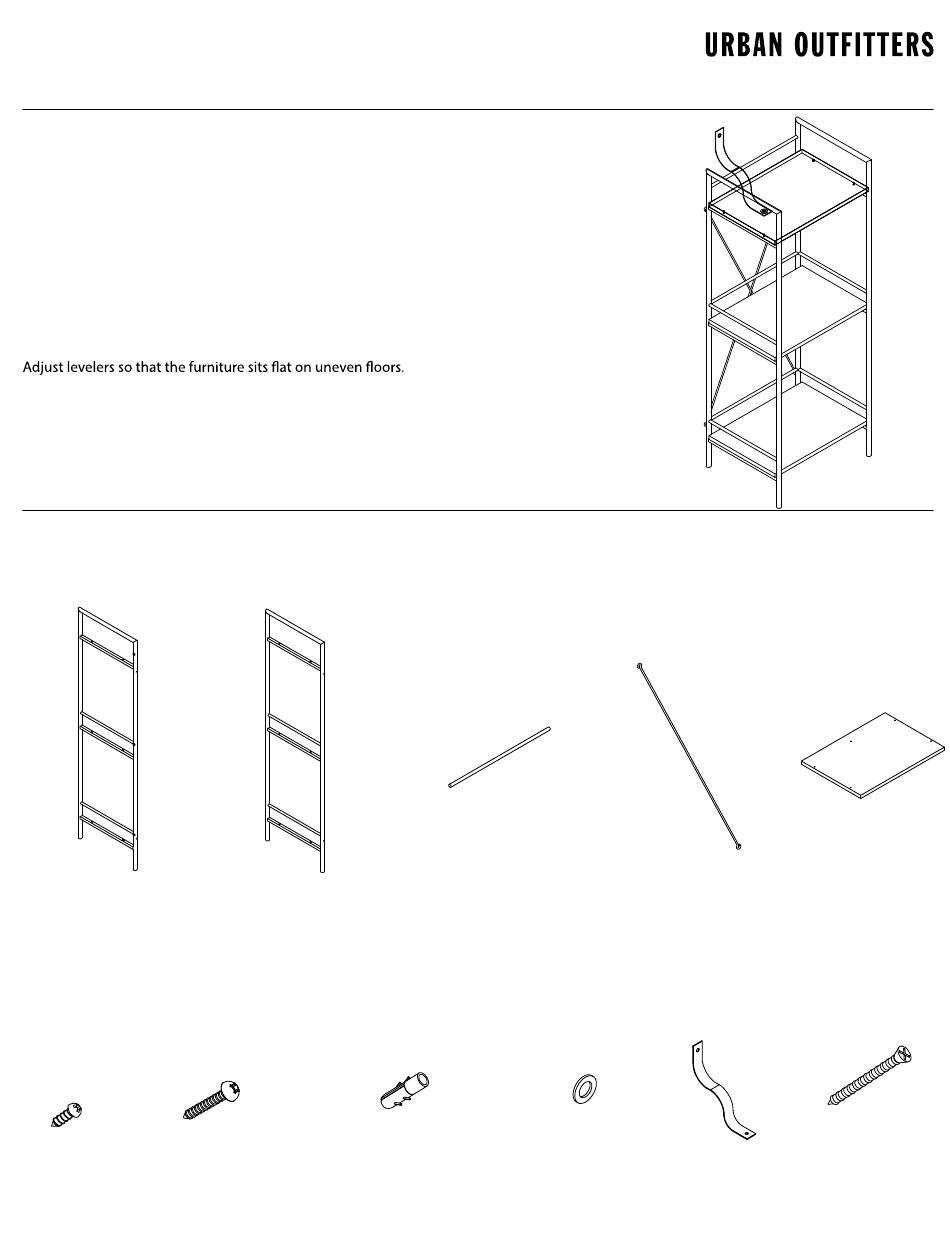

PARTS INCLUDED
AX1
BX1
CX3
DX2
EX3
(e) Strap
(f ) Screw
(d) Washer
(c) Anchor
(b) Screw
(a) Screw
[white] x 1pc
[ø12xø5mm] x2pcs
[M4x30mm] x1pc
[ø6x30mm] x1pc
[M4x22mm] x12pcs
[M4x12mm] x5pcs
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.
© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
Page 1 of 4
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
