MasterCraft 068-0004-2 Instruction Manual

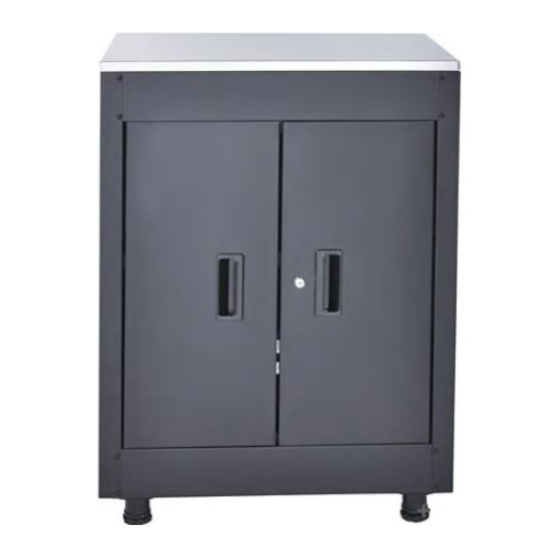

Stainless steel top base cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
model no. 068-0004-2
IMPORTANT
Please read this manual carefully before assembling and
using this product, and save it for reference.
Stainless Steel Top
Base Cabinet
INSTRUCTION
MANUAL
Due to continuing improvements,
the actual product may differ slightly
from the product described herein.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 068-0004-2 and is the answer not in the manual?

Questions and answers

Related Manuals for MasterCraft 068-0004-2

Summary of Contents for MasterCraft 068-0004-2

  • Page 1 068-0004-2 Stainless Steel Top Base Cabinet INSTRUCTION IMPORTANT MANUAL Please read this manual carefully before assembling and Due to continuing improvements, using this product, and save it for reference. the actual product may differ slightly from the product described herein.

  • Page 2: Table Of Contents

    068-0004-2 I contact us 1-800-689-9928 TABLE OF CONTENTS SAFETY MAINTENANCE EXPLODED VIEW / PARTS LIST ASSEMBLY INSTRUCTIONS COORDINATING PRODUCTS WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at: 1-800-689-9928.

  • Page 3: Safety

    SAFETY To reduce the risk of serious injury, read and follow the safety instructions below before assembling and using this product. This product is intended for indoor use only. This product is not designed for commercial nor industrial usage. Keep the product on level surfaces. The product could become unstable and it may tip over if stored or moved on an uneven surface, which may cause personal injury, death or product damage.

  • Page 4: Exploded View / Parts List

    068-0004-2 I contact us 1-800-689-9928 EXPLODED VIEW / PARTS LIST Description Qty. Description Qty. Description Qty. Rubber ring Back top beam Back panel Shelf bracket Left door Magnet Shelf Door stopper Right side panel Bottom panel M6x16 hex socket head screw...

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS TOOLS REQUIRED FOR ASSEMBLY • Hex wrench (23) • Power drill (not included) NOTE: ssemble on a flat surface. A piece of cardboard is recommended to keep the product from being scratched during assembly. STEP 1 INSTALL THE ADJUSTABLE FEET Install the adjustable feet (7) to the bottom panel (6).
  • Page 6 068-0004-2 I contact us 1-800-689-9928 STEP 3 ATTACH THE DOOR STOPPER First press the two trapezoidal taps at the centre of the front top beam (19) inwards by 90 degrees. • • Insert the door stopper (17) onto the two taps .
  • Page 7 STEP 5 ATTACH THE BACK PANELS The top edge of the top back panel should be inserted Make sure your floor is free of debris or the cabinet face is protected before laying the cabinet on its face. under the back of the back top beam. Lay the cabinet on its face.
  • Page 8 068-0004-2 I contact us 1-800-689-9928 STEP 7 ATTACH THE DOORS • Lay down the left door (15) on its face with a soft mat underneath. Pull the bottom locking tab at the right bottom corner of the door outwards. Insert a pin (14) through the hole at the door’s bottom corner and put a rubber ring (13) into the pin’s vertical end.
  • Page 9 STEP 8 INSTALL THE LOCKING HOOK Install the lock (9) per Step 1, ensuring the lock code stays on top of the lock face. Release the nut from the lock (9) back and attach the locking hook (12) per Step 3. Tighten the hook (12) securely with the nut previously removed from the lock (9) back as shown in Step 4.

  • Page 10: Coordinating Products

    068-0004-2 I contact us 1-800-689-9928 STEP 10 SECURE THE CABINET TO WALL Place the cabinet on a flat floor against a wall. Use a power drill to attach the cabinet to the wall with two M6 x 40 hex tapping screws (21) through the holes at the back top beam (1).

  • Page 11: Warranty

    This product is not guaranteed if used for industrial or commercial purposes. Made in China. Imported by Mastercraft Canada Toronto, Canada M4S 2B8...
