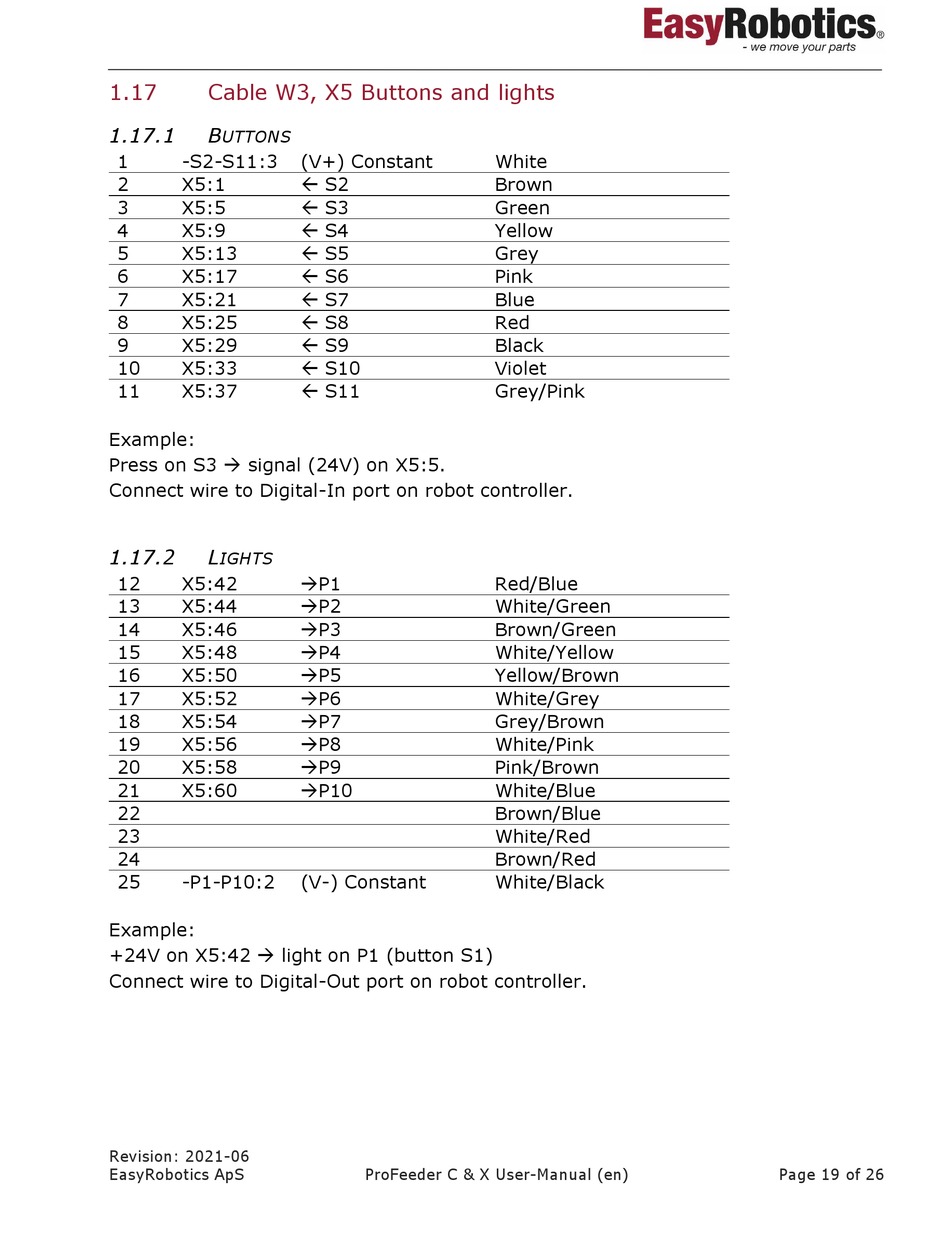

1.17 Cable W3, X5 Buttons and lights
1.17.1 B
UTTONS
1 -S2-S11:3
2 X5:1
3 X5:5
4 X5:9
5 X5:13
6 X5:17
7 X5:21
8 X5:25
9 X5:29
10 X5:33
11 X5:37
Example:
Press on S3  signal (24V) on X5:5.
Connect wire to Digital-In port on robot controller.
1.17.2 L
IGHTS
12 X5:42
13 X5:44
14 X5:46
15 X5:48
16 X5:50
17 X5:52
18 X5:54
19 X5:56
20 X5:58
21 X5:60
22
23
24
25 -P1-P10:2
Example:
+24V on X5:42  light on P1 (button S1)
Connect wire to Digital-Out port on robot controller.
Revision: 2021-06
EasyRobotics ApS
(V+) Constant
 S2
 S3
 S4
 S5
 S6
 S7
 S8
 S9
 S10
 S11
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
(V-) Constant
ProFeeder C & X User-Manual (en)
White
Brown
Green
Yellow
Grey
Pink
Blue
Red
Black
Violet
Grey/Pink
Red/Blue
White/Green
Brown/Green
White/Yellow
Yellow/Brown
White/Grey
Grey/Brown
White/Pink
Pink/Brown
White/Blue
Brown/Blue
White/Red
Brown/Red
White/Black
