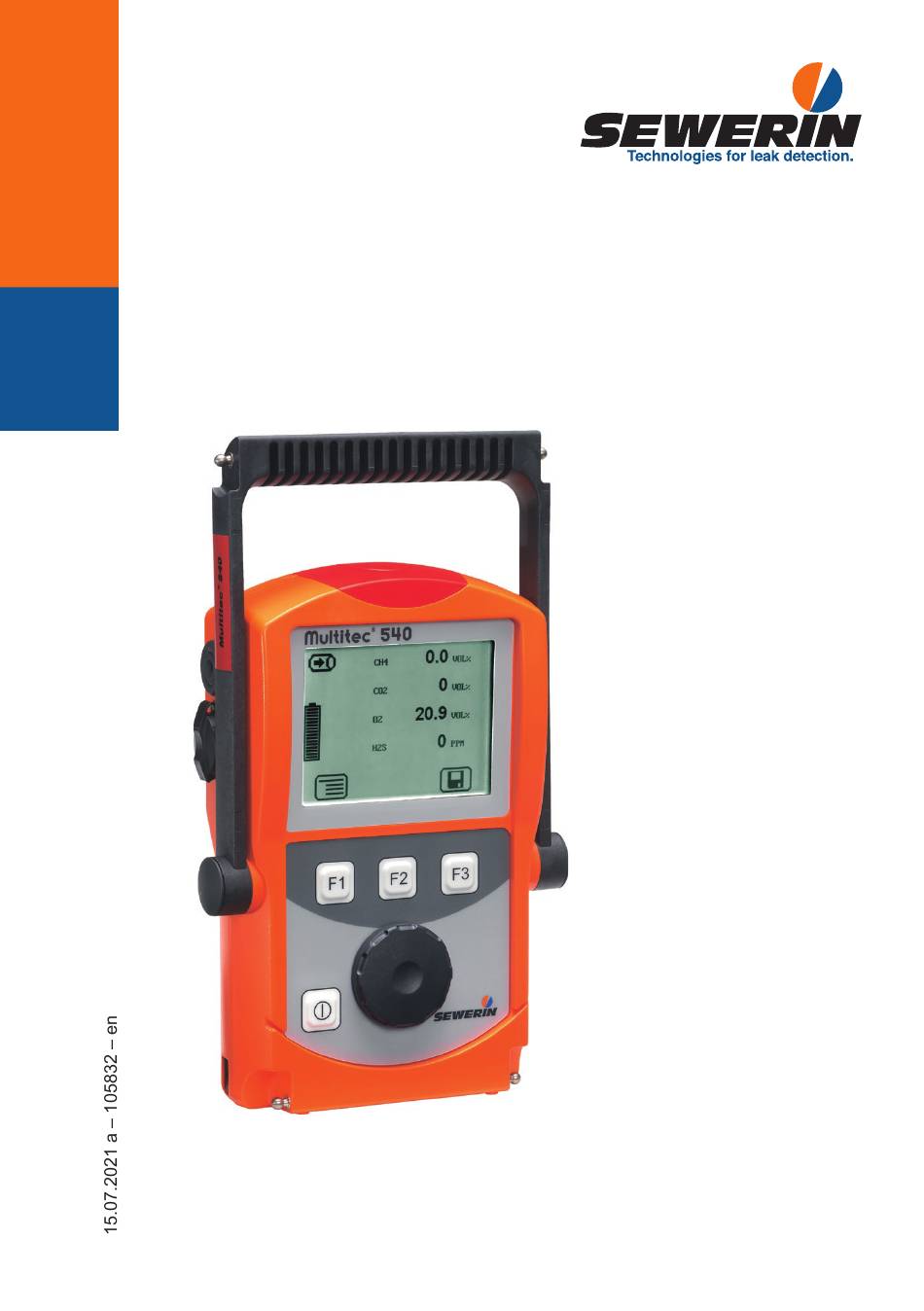

- Page 1 Multitec 545/540 ® Operating Instructions...

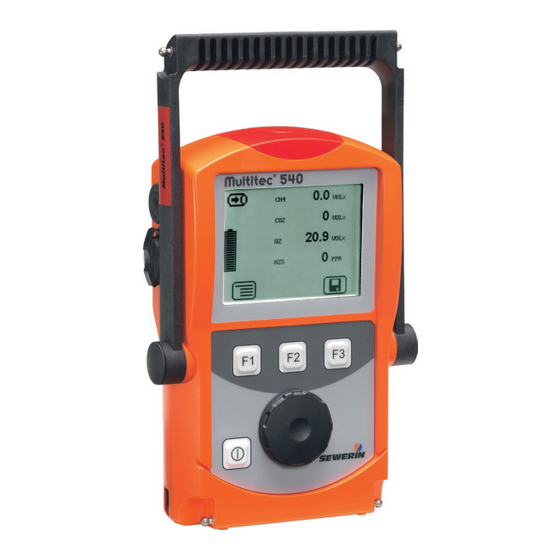

- Page 2 Multitec 545/540 ® Connector Supporting bracket Signal light Buzzer Gas input USB port Display Function keys Jog dial ON/OFF key Connection for Connector power supply Fig. 1: Multitec 540 device overview Measured Unit value Gas measuring symbol Battery capacity Current assignment of function keys F1 –...
- Page 3 Display symbols General Menu Fault Perform device inspection Cancel (jump to next input field) Save Clear Information Open stored comment Battery capacity Open stored inspector Applications Interspace Gas measuring...
- Page 4 Information about this document The warnings and notes in this document mean the following: DANGER! Risk of personal injury. Will result in serious injury or death. WARNING! Risk of personal injury. Could result in serious injury or death. CAUTION! Risk of personal injury. Could result in injury or pose a risk to health.
-
Page 5: Table Of Contents
General ..................1 Warranty ...................1 Purpose ..................2 Intended use ................3 General safety information ............4 Features ...................5 Visual and audible signals ............5 Sensors ..................5 Explosion protection ..............6 Operation .................7 General information on operation ..........7 3.1.1 Keys and jog dial ..............7 3.1.2 Selecting/exiting menus and menu items .......7 3.1.3 Switching the device on ............8 3.1.4... - Page 6 Power supply .................22 Suitable disposable/rechargeable battery types .....22 Operation with rechargeable batteries ........23 4.2.1 Charging ................23 4.2.2 Rechargeable battery maintenance ........24 Battery alarm ................25 Replacing disposable/rechargeable batteries ......25 Maintenance ................27 Device inspection ..............27 5.1.1 General information on the device inspection ......27 5.1.1.1 Scope ................27 5.1.1.2...
- Page 7 Faults ..................44 Appendix ................45 Specifications and permitted operating conditions ....45 Alarm ..................46 Limit values for the device inspection ........46 Memory capacity ..............47 Sensors ...................47 7.5.1 Infrared sensors (IR) ............47 7.5.1.1 Methane CH (interspace) ..........47 7.5.1.2 Methane CH (gas measuring) ..........47 7.5.1.3 Carbon dioxide CO ............48...
-
Page 8: General
● Changes or modifications to this product may only be carried out with the approval of Hermann Sewerin GmbH. ● Use only Hermann Sewerin GmbH accessories for the product. Hermann Sewerin GmbH shall not be liable for damages result- ing from the non-observance of this information. The warranty conditions of the General Terms and Conditions (AGB) of Her- mann Sewerin GmbH are not affected by this information. -
Page 9: Purpose
Purpose The Multitec 545 and the 540 version are gas measuring de- vices for monitoring gas mixtures that are formed in biological processes (biogas, landfill gas). They measure the concentration of several gases in the gas mixture simultaneously. The devices are ideal for use in waste disposal sites, sewage plants and bi- ogas plants. -
Page 10: Intended Use
Intended use This device is intended for professional residential and commer- cial use including small firms and commercial operations. The ap- propriate specialist knowledge is required to operate the device. The device may be used to measure the following gases (de- pending on the sensors fitted). -
Page 11: General Safety Information
● Observe the relevant safety regulations when working at agri- cultural biogas plants /1/. ● When working in closed spaces, these must be well ventilated. SEWERIN recommends: For measurements in closed spaces, attach the gas outlet adapter to the device to reduce the risk of high concentrations at H S. -
Page 12: Features
0.0 – 100% vol. × 0 – 100% vol. × 0 – 500 ppm ○ 0 – 5000 ppm × (Multitec 545 only) 0 – 2000 ppm ○ (Multitec 540only) 0 – 25.0% vol. ○ × standard, ○ optional 2 Features │... -
Page 13: Explosion Protection
The installation date of the sensor and the expected lifetime can be found in the Device information. ● Always arrange for SEWERIN Service to replace faulty or leaky sensors immediately. Explosion protection The device is assigned to the following explosion-proof groups:... -
Page 14: Operation
Operation General information on operation 3.1.1 Keys and jog dial The ON/OFF key is the only control on the device that does not change its function. When switched on, the device is operated using the jog dial and function keys to navigate the display. Control Action Function... -
Page 15: Switching The Device On
detailed information on how to select or switch applications in section 3.1.4. Exiting menus/menu items There are generally two ways to exit open menus/menu items and return to the next level up: ● Press Esc ● Select Exit from the menu 3.1.3 Switching the device on Note:... -
Page 16: Selecting/Changing The Application
An overview of the gases that can be detected will then ap- pear briefly. Display: – Symbol: Gas measuring – Detectable gases Gas measuring 0.0..100 VOL% – Measurement ranges 0..100 VOL% 0...25.0 VOL% – Battery capacity 0...2000 PPM 0... 500 PPM Fig. -
Page 17: Differences Between Measuring Mode And Settings Mode
3.1.5 Differences between measuring mode and settings mode The device is operated in two modes: ● Measuring mode (section 3.2) Measurements are taken in measuring mode. All functions needed to take readings can be accessed from one menu. ● Settings (section 3.3) The device settings can be changed in settings mode. -
Page 18: Zero Point
3.2.2 Zero point The zero point only has to be set manually if the displayed fresh air measurement is not zero after the end of the warm-up period. Content in fresh air Correct zero point on device 20.9 % vol. 20.9 % vol. -
Page 19: Interspace
3.2.3 Interspace The measuring mode can be changed to the Interspace applica- tion via this menu item. If the device is already in the Interspace application, you can access an overview of detectable gases via this menu item. The device automatically returns to measuring mode. Area of use –... -
Page 20: Gas Measuring
0 to 100 % vol. (Carbon dioxide CO Electrochemical sensor 0.0 to 25.0 % vol. (Oxygen O Multitec 545: 0 to 5000 ppm Electrochemical sensor Multitec 540: 0 to 2000 ppm (Hydrogen sulphide H Electrochemical sensor 0 to 500 ppm... -
Page 21: Settings
The saved measurements can be read out on a comput- er using the GasCom software. The software is available at www.sewerin.com. 1. Press Save. a) Press Menu. b) Select Save measurement from the menu. -
Page 22: Protocols
b) Then confirm your entry/selection with OK. Press Esc if you do not wish to enter a comment for the measurement. The measurement is saved as a protocol. The protocol name is formed from the date, time and comment. 3.2.7 Protocols You can retrieve or clear protocols of saved data under Protocol in the menu. -
Page 23: Device Information
PIN code 0001. Note: You can change the PIN code at any time. SEWERIN recommends setting a different PIN code after initial start-up so that only authorised personnel have access to the settings. 3. Enter the PIN code from left to right. The active digit is always displayed with a black background. - Page 24 Digit To change To confirm 1st digit Press the jog dial 2nd digit Press the jog dial 3rd digit Press the jog dial Turn the jog dial 4th digit If the PIN code has been entered correctly, the Settings menu will appear once the last digit has been confirmed (fig.
-
Page 25: Settings Menu Structure
3.3.2 Settings menu structure PIN Code Settings Adjustment Adjustment CH4 Adjustment CO2 Adjustment gas mixture measuring Adjustment CO Adjustment H2S Adjustment O2 Test gas Inspection OK Exit System PIN Code Service interval Display Battery Autostart Device inspection Reset Language Exit Date/time Memory Clear... -
Page 26: Adjustment
3.3.3 Adjustment The Adjustment menu is used to set the sensors. A detailed description of adjustment along with important informa- tion is provided in section 5.2. Adjustment CH4 Used to adjust the infrared sensor for methane CH in the % vol. range. -
Page 27: System
Used to change or reset the PIN code. Note: If you lose the PIN code, you must contact SEWERIN Service. If the PIN code is set to 0000, you will not be asked to enter it. The settings can then be accessed by anyone. -
Page 28: Alarms
3.3.5 Alarms Used to set the alarm threshold for CH Application: Interspace 3.3.6 Date/time Used to set the time, day, month and year. There are two formats available for the date. 3.3.7 Memory The Memory menu is used to specify how measurement data and protocols are handled. -
Page 29: Power Supply
● Only use batteries supplied by SEWERIN. Other dis- posable/rechargeable batteries, which have not been supplied by SEWERIN, may only be used if they meet the requirements of /3/. ● Only use batteries that are identical with respect to type (disposable or rechargeable), capacity and manufacturer. -
Page 30: Operation With Rechargeable Batteries
Disposable battery requirements ● Disposable alkaline batteries ● Size: mignon (AA), type: LR6 as per /4/ ● The creepage distance and air gap between the poles must not be less than 0.5 mm in accordance with /3/. Rechargeable battery requirements ●... -
Page 31: Rechargeable Battery Maintenance
DANGER! Risk of explosion from sparks High charging amperage occurs when charging batteries in explosive areas. The mains adapter is not explosion proof. ● Only ever charge the device outside of explosive areas. For charging you will need either: ● AC/DC adapter M4 ●... -
Page 32: Battery Alarm
● Connect the device (switched on) to the power supply via the side connection. ● Place the device (switched on) into the docking station. The rechargeable batteries will be fully discharged. Once the device has been discharged, it will automatically switch to charging mode. - Page 33 A 2.5 mm Allen key (supplied) is required to open the battery compartment on the back of the device. 1. Loosen the two screws securing the battery compartment. Remove the screws by repeatedly turning them alternately a short way; this ensures that the battery compartment does not twist.
-
Page 34: Maintenance
Maintenance In accordance with the legal regulations, device maintenance comprises the following elements: ● Device inspection including test of indication accuracy ● Adjustment ● Servicing All inspections must be documented. The documentation must be retained for at least one year. Device inspection 5.1.1 General information on the device inspection... -
Page 35: Integrated Device Inspection
The device inspection protocols can be accessed at any time and read on a computer using the GasCom software. The software is available at www.sewerin.com. The Perform device inspection symbol appears when a device inspection is due. It is visible in the display until the complete integrated device inspec- tion has been carried out successfully. -
Page 36: Order
Test gas CO 40 ppm CO * in synthetic air Note: Use of test gases not provided by SEWERIN can cause interfer- ence. The concentration of the test gas used must match the specified test gas concentration. Changing the test gas concentration... -
Page 37: Performing The Device Inspection
5.1.2 Performing the device inspection 5.1.2.1 Accessing the device inspection The device is in measuring mode. 1. Press Device inspection. a) Press Menu. b) Select Device inspection from the menu. The Device inspection menu appears. 2. Select an application (Interspace, Bar holes/measuring). The Dev. -
Page 38: Concluding The Device Inspection
5.1.2.2 Concluding the device inspection After all the tests have been carried out as described in sec- tion 5.1.3 to section 5.1.5, the Save symbol will appear in the display. An integrated device inspection is concluded by saving it. Up to 40 device inspections can be saved. -
Page 39: Testing The General Status
b) Then confirm your entry with OK. Press Esc if you do not wish to enter a password for the device inspection. The device inspection is saved as a protocol. An overview with the device inspection results is displayed. 4. Confirm the overview by pressing OK. The device returns again to measuring mode. -
Page 40: Signals
After a maximum of 10 seconds an error message should ap- pear. This indicates that the pump is working correctly. If the error message does not appear, the pump may be faulty. The device must be tested by SEWERIN Service. 2. Release the gas input again. 5 Maintenance │ 33... -
Page 41: Testing Indication Accuracy With Supply Of Fresh Air
The following resources are needed for the test: ● Test gas (e.g. 1.00 % vol. CH , gas mixture) SEWERIN recommends the test gas Bio IR as the gas mixture. It contains 60 % vol. CH , 40 % vol. CO and 180 ppm H ●... - Page 42 Note: Details of how to use the test set can be found in the accompany- ing operating instructions. The device inspection has been opened. An application has been selected. The Dev. Test … menu is visible (sec- tion 5.1.2.1). 1. In the Dev. Test … menu, select the menu item to be tested (e.g.
-
Page 43: Adjustment
Changing the test gas concentration If no test gas with the specified concentrations is available for the test, the values can be changed accordingly under Test gas in the adjustment menu (section 3.3.3). Adjustment NOTICE! Incorrect adjustment can lead to incorrect measurement results. ●... -
Page 44: Test Gases For The Adjustment
Carbon monoxide can only be adjusted with an individual gas. Note: Use of test gases not provided by SEWERIN can cause interfer- ence. The concentration of the test gas used must match the specified test gas concentration. -
Page 45: Special Features Of Adjustment With Gas Mixture
5.2.3 Special features of adjustment with gas mixture If you are using a SEWERIN gas mixture as the test gas, the fol- lowing gases can be adjusted in a single step via Adjustment gas mixture measuring: ● Methane CH ● Carbon dioxide CO ●... -
Page 46: Preparation
5.2.4 Preparation Performing an adjustment always takes some time. Leave your- self plenty of time to prepare the necessary steps of the proce- dure. ● Have all necessary tools available. ● Let the device run for several minutes to guarantee that the temperature is correct, for example. -
Page 47: Adjusting The Sensitivity
Note: For Adjustment gas mixture measuring, all values must be stable. This time required for this varies. 6. Select Zero point from the menu. 7. Press OK to confirm. The zero point is adjusted. The reading shows zero (0.00 % vol. / 0 ppm). 5.2.5.2 Adjusting the sensitivity For all gases except oxygen O , the sensitivity is adjusted follow-... -
Page 48: Performing An Oxygen Adjustment
6. Press and hold the release button on the test set. The test gas is added. Do not let go of the release button. 7. Wait at least 1 minute. The displayed reading must be stable. Note: For Adjustment gas mixture measuring, all values must be stable. -
Page 49: Adjusting The Sensitivity For Oxygen
5. Select Zero point from the menu. Do not confirm with OK yet. 6. Press and hold the release button on the test set. The test gas is added. Do not let go of the release button. 7. Wait at least 1 minute. The displayed reading must be stable. 8. -
Page 50: Servicing
Servicing The device must only be serviced and repaired by SEWERIN Service. ● Send the device to SEWERIN for repairs and for annual main- tenance. Note: If there is a service agreement in place, the device can be ser- viced by the mobile maintenance service. -
Page 51: Faults
CO2 or Adjustment gas mixture measuring required (section 5.2) Adjustment failed Check test gas Test gas XFLASH Error can only be corrected by SEWERIN Service SEWERIN Service Error unknown Error can only be corrected by SEWERIN Service SEWERIN Service IR sensor... -
Page 52: Appendix
Appendix Specifications and permitted operating conditions Device data Dimensions approx. 148 x 57 x 205 mm (W × D × H) approx. 148 x 57 x 253 mm with supporting bracket Weight approx. 1000 g, depending on equipment Features Display monochromatic graphic display, 320 x 240 pixels Buzzer frequency 2.4 kHz, volume 80 dB (A) / 1 m... -
Page 53: Alarm
Alarm Adjustable: Latching: Trigger: when alarm threshold AL is exceeded Indicator: – audible signal – visual signal – AL notification on display Acknowledge- possible for audible signal when alarm threshold AL is ment: exceeded – automatic when level falls below alarm threshold AL Reset: Limit values for the device inspection Interspace... -
Page 54: Memory Capacity
Memory capacity The total memory capacity of the device is divided up as follows: Protocol type Maximum number of storable protocols Device inspection Measurement There is a choice of two memory modes (section 3.3.7). The se- lected memory mode applies for all protocol types. Sensors Note: Probes increase the stated response times. -
Page 55: Carbon Dioxide Co
±3 % or ±0.3 % vol. (±3 digits) Interference none Lifetime, expected 24 months 7.5.2.2 Hydrogen sulphide H Multitec 545 Measuring range 0 – 5000 ppm Resolution 1 ppm (0 – 100 ppm) 2 ppm (100 - 998 ppm) 0.02 % vol. / 200 ppm (0.10 - 0.5 % vol.) Response times <... -
Page 56: Carbon Monoxide Co
MultiTec 540 Measuring range 0 – 2000 ppm Resolution 1 ppm (0 – 100 ppm) 2 ppm (100 - 998 ppm) 0.02 % vol. / 200 ppm (0.10 - 0.2 % vol.) Response times < 30 s Warm-up time approx. 1 min Temperature range -20 °C –... -
Page 57: Cleaning
7.6.2 Cleaning The device must only be cleaned with a damp cloth. NOTICE! Possible damage to property from unsuitable cleaning agents Unsuitable cleaning agents can chemically corrode the housing surface. Fumes from solvents and substances containing silicone can get into the device and damage the sensors. ●... -
Page 58: Accessories And Consumables
Test gas 40 ppm CO in synthetic air, test gas can ZT39-10000 1 l, pressure approx. 12 bar Other accessories and consumables are available for the prod- uct. Please contact our SEWERIN sales department for further information. 7 Appendix │ 51... -
Page 59: Declaration Of Conformity
Declaration of conformity Hermann Sewerin GmbH hereby declares that the Multitec ® fulfils the requirements of the following directives: ● 2014/34/EU ● 2014/30/EU Gütersloh, 2016-04-20 Dr S. Sewerin (Managing Director) Hermann Sewerin GmbH hereby declares that the Multitec ® fulfils the requirements of the following directives: ●... -
Page 60: Advice On Disposal
Disposable battery, 16 06 05 rechargeable battery End-of-life equipment Used equipment can be returned to Hermann Sewerin GmbH. We will arrange for the equipment to be disposed of appropriately by certified specialist contractors free of charge. 7.10 Terminology and abbreviations CENELEC –... -
Page 61: Referenced Documents
7.11 Referenced documents The following standards, guidelines and regulations are referred to in these operating instructions: Bundesverband der landwirtschaftlichen Berufsgenossenschaften e. V.: (Federal Association of Institutions for Statutory Accident Insur- ance and Prevention in the Agricultural Sector): Safety regulations for agricultural biogas plants (Procedure Document 69); available from regional agricultural employer's liability insurance association DVGW G 465-4 Deutsche Vereinigung des Gas- und Wasserfaches e. -
Page 62: Index
Index Device inspection 15, 20, 27 accessing 30 Accessories 51 concluding 31 Adjustment 19, 36 documentation 27 CH4 19 frequency 27 CO 19 integrated 28 CO2 19 limits 46 gas mixture measuring 19 order 29 H2S 19 performing 30 menu 19 protocol 15 O2 19 reading protocol 28... - Page 63 Inspection OK 19 Pump 33 Inspector 31 Interspace 12 Rechargeable battery 23 charging 23 Jog dial 7 replacing 25 requirements 23 self-discharge 23 servicing 24 Keys 7 setting the type 20 suitable types 22 Reset 20 Language 20 Ring memory 21 Maintenance 27 Sensitivity Manual zero point setting see Zero point...
- Page 64 Fax.: +351 234 024 446 Tel.: +34 91 74807-57 www.sewerin.com Fax: +34 91 74807-58 info@sewerin.pt www.sewerin.com info@sewerin.es Sewerin Sp. z o.o. Sewerin Ltd. ul. Twórcza 79L / 1 Hertfordshire 03-289 Warszawa, Polska Tel.: +48 22 675 09 69 Phone: +44 1462-634363 Tel.
