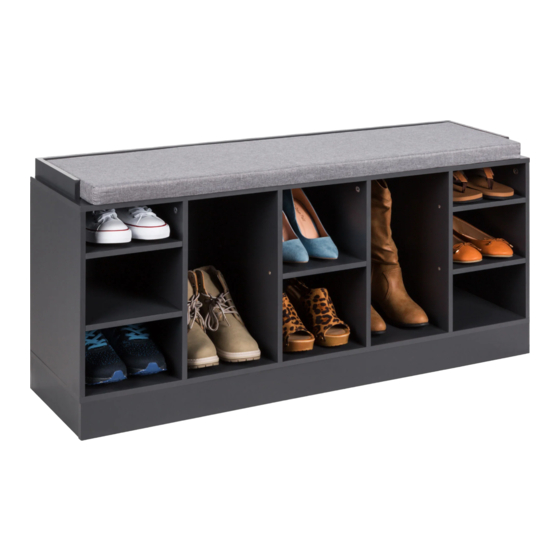

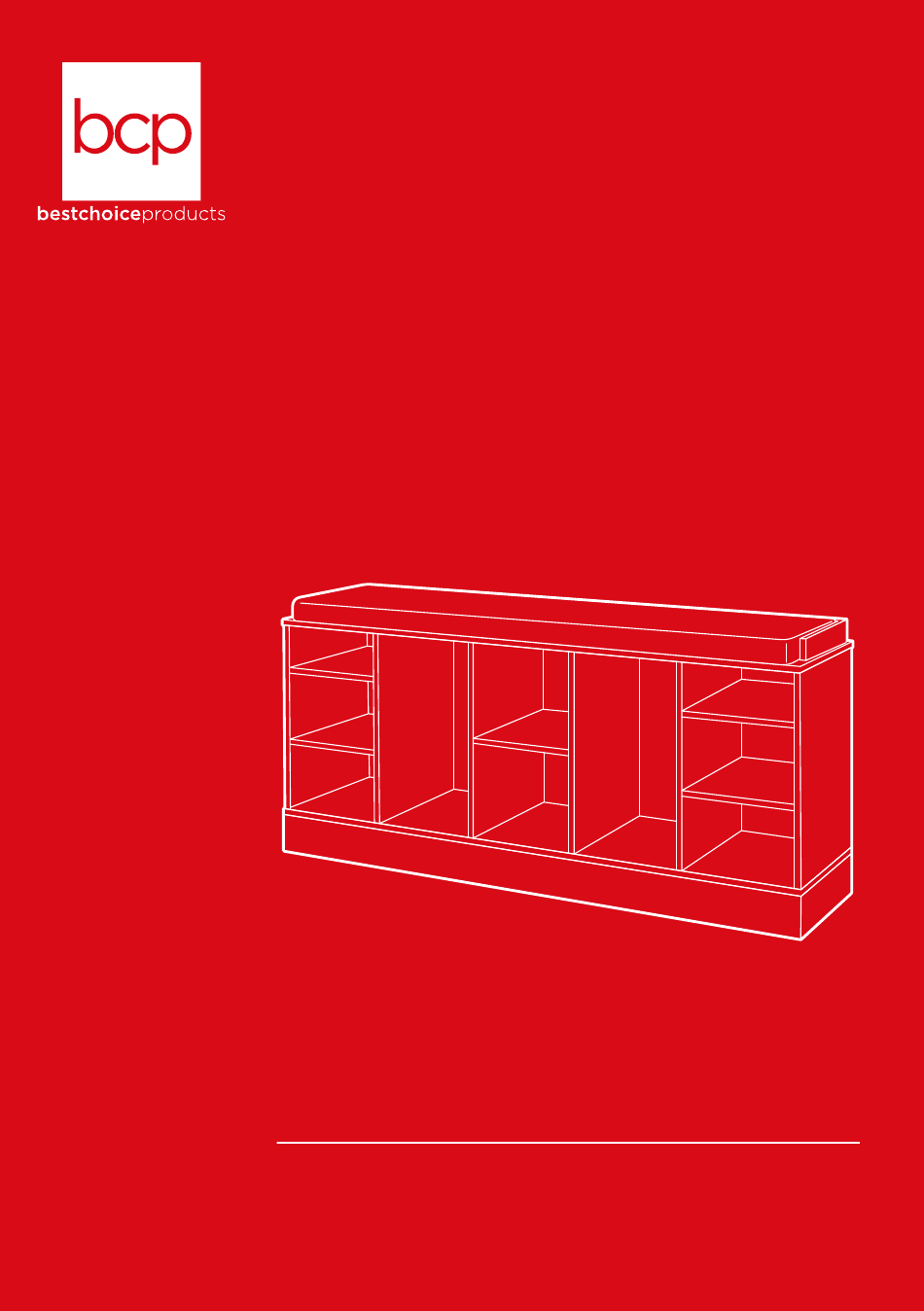

- Page 1 INSTRUCTION MANUAL Shoe Storage Rack Bench SKY4766 + SKY6078 + SKY6079 Ver. 3...
-
Page 2: Tools Required
NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws, and knobs before use. •... - Page 3 PARTS TOP PANEL LEFT SIDE BOTTOM FRAME 1 PC 1 PC 2 PCS BOTTOM PANEL LEFT SHELF SIDE MIDDLE SHELF SIDE I 1 PC 1 PC 1 PC MIDDLE SHELF SIDE II TOP FRAME SIDE I MIDDLE SHELF 1 PC 1 PC 1 PC BOTTOM SIDE FRAME...
- Page 4 PARTS TOP FRAME SIDE II RIGHT SHELF SIDE RIGHT SIDE 1 PC 1 PC 1 PC LEFT SHELF RIGHT SHELF CUSHION 2 PCS 2 PCS 1 PC TIGHTENING CAMLOCKS Screw cam bolt Insert cam bolt and cam lock into Screw cam lock in completely.
- Page 5 PRODUCT ASSEMBLY Attach part H and part M top frame sides to part L top frame with two part 3 screws. Attach the top frame to part A top panel with four part 4 dowels and seven part 3 screws. Screw twelve part 1 cam bolts into the other side of the top panel.
- Page 6 PRODUCT ASSEMBLY Attach part F and part G middle shelf sides to part I middle shelf with four part 3 screws. Screw four part 1 cam bolts into part B left side. Attach the left side and part E left shelf side to two part P left shelves with four part 2 cam locks and four part 3 screws.
- Page 7 PRODUCT ASSEMBLY Screw four part 1 cam bolts into part O right side. Attach the right side and part N right shelf side to two part Q right shelves with four part 2 cam locks and four part 3 screws. Screw four part 1 cam bolts into two part C bottom frames.
- Page 8 PRODUCT ASSEMBLY Insert twelve part 4 dowels into the assembled shelves. Attach the part D bottom panel with twelve part 3 screws.
- Page 9 PRODUCT ASSEMBLY Screw six part 1 cam bolts into the bottom panel. Attach the bottom frame with twelve part 4 dowels and six part 2 cam locks.
- Page 10 PRODUCT ASSEMBLY Attach the top panel with twelve part 4 dowels and twelve part 2 cam locks.
- Page 11 PRODUCT ASSEMBLY Flip the assembly over. Attach the part K back panel with twenty-eight part 5 screws. Place the part R cushion.
-
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
