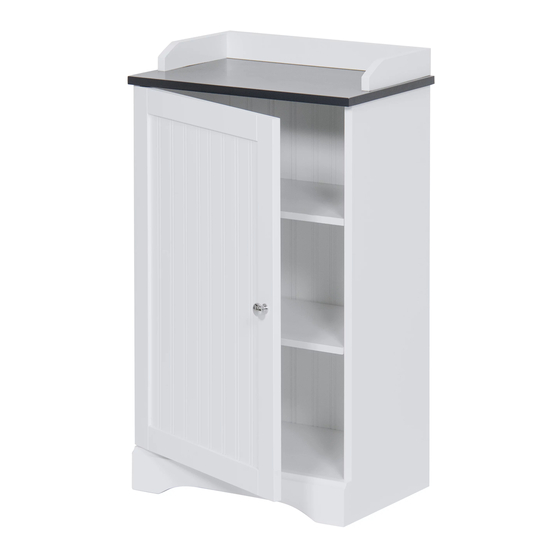

- Page 1 INSTRUCTION MANUAL Modern Bathroom Floor Cabinet SKY3076 + SKY3523 Ver. 1...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
- Page 3 NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws, and knobs before use. •...
- Page 4 HARDWARE M2.5 X 12MM M5 X 11MM SHELF PEG SCREW SCREW 14 PCS 4 PCS 8 PCS PARTS TOP PANEL MIDDLE SHELF BOTTOM SHELF 1 PC 2 PCS 1 PC FRONT SKIRT LEFT PANEL RIGHT PANEL 1 PC 1 PC 1 PC DOOR BACK PANEL...
- Page 5 PARTS RIGHT RAILING BACK RAILING 1 PC 1 PC PRODUCT ASSEMBLY Screw eight part 2 cam bolts into the part D front skirt, part E left panel, part F right panel, part I left railing, and part J right railing.
- Page 6 PRODUCT ASSEMBLY Attach part I left railing and part J right railing to part K back railing with two part 1 dowels and two part 3 cam locks. Attach two part 4 hinges to the part G door with four part 5 screws. Attach part 7 knob with a part 6 screw.
- Page 7 PRODUCT ASSEMBLY Attach the top railings to the part A top panel with four part 1 dowels and four part 8 screws. Screw in four part 2 cam bolts. Attach part C bottom shelf to part E left panel with two part 1 dowels and two part 3 cam locks.
- Page 8 PRODUCT ASSEMBLY Attach part F right panel with two part 1 dowels and two part 3 cam locks. Attach part D front skirt with four part 1 dowels and two part 3 cam locks.
- Page 9 PRODUCT ASSEMBLY Attach the top panel assembly with four part 1 dowels and four part 3 cam locks.
- Page 10 PRODUCT ASSEMBLY Attach the part H back panel with fourteen part 9 screws.
- Page 11 PRODUCT ASSEMBLY Attach the hinges on the part G door with four part 10 screws. NOTE: Depending on preference, door can be installed on the left or right panel. Insert eight part 11 shelf pegs. Place two part B middle shelves on the pegs. NOTE: Insert the shelves at an angle.
-
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
