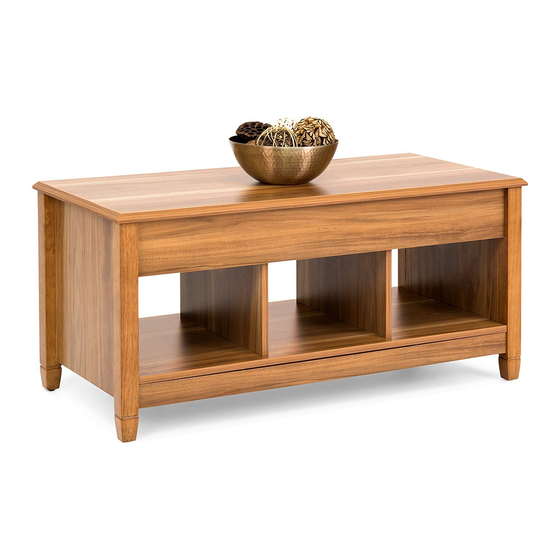

- Page 1 INSTRUCTION MANUAL Lift-Top Co ee Table SKY2788 + SKY3688 Ver. 2...
- Page 2 NOTICE Please retain these instructions for future reference. The following safety hazards may result in serious injury or death: • Firmly secure all bolts, screws and knobs before use. • Reconfirm that all bolts, screws, and knobs are secure every 90 days. •...
-
Page 3: Tools Required
TOOLS REQUIRED 1 PERSON APPROXIMATELY PHILLIPS ASSEMBLY 45 MIN. 1 PERSON APPROXIMATELY SCREWDRIVER ELECTRIC DRILL 45LY ASSEMBLY 45 MIN. ASSEMBLY HARDWARE CAM COVER DOWEL CAM BOLT CAM LOCK 32 PCS 40 PCS 40 PCS 40PCS TABLETOP WOOD SCREW CORNER BRACKET 6PCS 44PCS 4 PCS... - Page 4 TOOLS REQUIRED PRODUCT ASSEMBLY Insert four part A dowels, four part B cam bolts, and four part C cam locks into each part 2 end panel. Insert four part A dowels and four part C cam locks into part 3 dividers. Pg.
- Page 5 TOOLS REQUIRED PRODUCT ASSEMBLY Insert two part B cam bolts and four part C cam locks into each part 4 side panel. Insert eight part A dowels, four part B cam bolts, and eight part C cam locks into part 5 inner shelf. Pg.
- Page 6 TOOLS REQUIRED PRODUCT ASSEMBLY BOTTOM Insert four part A dowels and four part B cam bolts into the top end of part 6 bottom shelf. Then insert four part A dowels, four part B cam bolts, and four part C cam locks into the bottom end of part 6 bottom shelf.
- Page 7 TOOLS REQUIRED PRODUCT ASSEMBLY Insert five part B cam bolts into each part 8 and 9 legs. Attach part 8 and 9 table legs to part 2 end panels. Pg. 7...
- Page 8 TOOLS REQUIRED PRODUCT ASSEMBLY Use drill to attach part 10 lift hinges to end panels with eight part E4 wood screws each. Insert part 4 side panels into part 5 inner shelf. Pg. 8...
- Page 9 TOOLS REQUIRED PRODUCT ASSEMBLY Use drill to attach part 7 baseboards to part 6 bottom shelf with four part E4 wood screws. Connect part 5 inner panels to part 6 bottom shelf with two part 3 dividers. Pg. 9...
- Page 10 TOOLS REQUIRED PRODUCT ASSEMBLY Attach part 2 end panels to inner shelf and bottom shelf. Place part M1 tabletop pads on the tops of each part 8 and 9 legs. Then apply part P cam covers over each exposed cam lock. Pg.
- Page 11 TOOLS REQUIRED PRODUCT ASSEMBLY Use drill to attach part 1 tabletop to lift hinges with twelve part E4 wood screws. Pg. 11...
-
Page 12: Product Warranty Information
ASSEMBLY IS COMPLETE! PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included. All returned items will receive a full refund back to the original payment method.
