STEP 4
Attach Back Support Panel (E) to Bottom Panel (C) using Screw (1).
D
STEP 5
5.1 Insert Cam-Lock Screw (2) to Top Panel (A).
5.2 Attach Top Panel (A) to completed unit in
Step 4 and tighten with Cam-Lock Nut (2).
x10pcs
2
D
Recommended Maximum Weight
50
15
15
15
*Unit in Pound(lbs)
D
D
B
E
G
D
1
C
A
D
E
D
D
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
x2pcs
Approx. 40 minutes
Recomm. 2 Person
Tool Required
www.furinno.com
Assembly Instruction

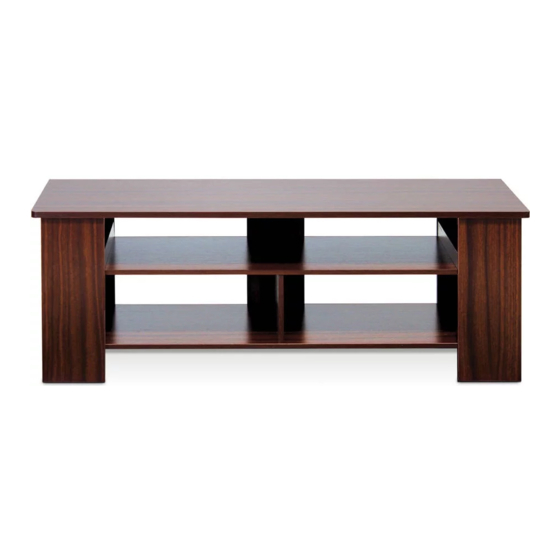

Furinno Boyate TV Entertainment Stand
FNAJ-11109
MODEL
:
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
FNAJ1110920180424
