STEP 4
Connect assembled unit in Step 2 and
Step 3 using Wooden Dowel (1).
1
X 2pcs
A
Recommended Maximum Weight
25
*Unit in Pound(lbs)
STEP 5
Mark the hole on wall before drill.
Drill Nut (2) into wall and tighten with Screw (2).
2
X 5pcs
A
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
its Space. its Budget
Approx. 30 minutes
Recomm. 1 Person
Tool Required
Customer Support
NEED HELP? For help with assembly, or if you are missing a
part, please call Furinno Customer Service, 1-773-299-8111
from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com
www.furinno.com
Assembly Instruction

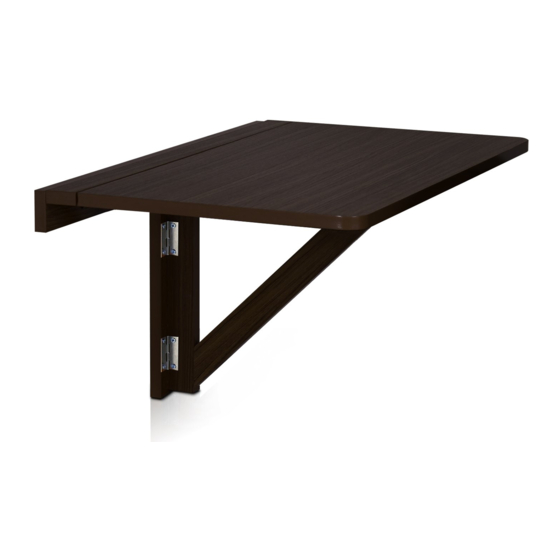

Furinno Wall-Mounted Drop-Leaf
Folding Table
FNAJ-11019
MODEL
:
FNAJ1101920171106
Advertisement
Table of Contents
Related Manuals for Furinno FNAJ-11019
Summary of Contents for Furinno FNAJ-11019
- Page 1 >This unit has been designed to support the NEED HELP? For help with assembly, or if you are missing a maximum loads shown. Exceeding these part, please call Furinno Customer Service, 1-773-299-8111 load limits could cause sagging, instability, from Mon-Fri, 9am-5pm (CST) or email: support@furinno.com product collapse, and/or serious injury.
- Page 2 STEP 1 Hardware List Parts List Insert Wooden Dowel (1) to Pole (B) and tighten Pole (B),(C) using Screw/Dowel Nut (4). Top Panel Wood Dowel 4pcs Top Pole Screw/Nut 4pcs 4 X 3pcs Hinge 4pcs Wall Long Pole Screw/Dowel Nut 3pcs Wall Short Pole Triangle Support...
