Finn T90 Technical Bulletin
Hide thumbs
Also See for T90:
- Practical service manual for the parts professional (51 pages) ,
- Operator instructions and parts manual (126 pages)
Advertisement
PROD UCT:
TOPI C:
EFFECTI VI TY:
Purpose:
On all Finn machines equipped with a Yanmar 3TNV88C-DYEM engine (031504), some engine settings
are set at the factory and are password protected to prevent tampering. When a new replacement
control box assembly or display is installed on one of these machines, those settings need to be re-input
for proper operation of the engine and machine. This Technical Bulletin provides the steps for this
process. The steps for BB302 machines differ slightly from the rest and are detailed separately below.
DO NOT DEVIATE FROM THE SETTINGS PROVIDE BELOW. OPERATING THE MACHINE WITH
SETTINGS OTHER THAN THOSE APPROVED HEREIN BY FINN CORPORATION COULD RESULT IN
DAMAGE TO THE EQUIPMENT, DEATH, OR SERIOUS INJURY.
Affected Part Numbers are as follows:
031520
CONTROLLER/DISPLAY YANMAR T4F
005907
T90/120 CONTROL BOX ASSEMBLY
031515
B70 CONTROL BOX ASSEMBLY
055828
BB302 CONTROL BOX ASSEMBLY
Steps (T90, T120, B70)
1. After display or control box is installed, Turn the key switch to "ON". It is not necessary to start
the engine.

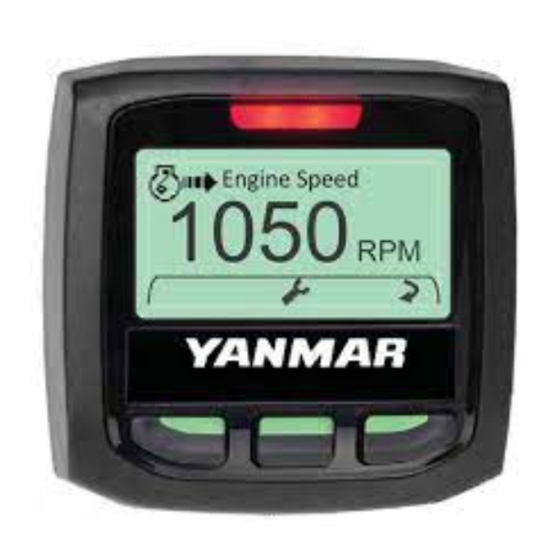

2. On the display, press any key to activate the Soft Key menu.
T9 0 , T1 2 0 , B7 0 , BB3 0 2
I nit ia l se t up of r e pla ce m e nt Ya nm a r Engin e D ispla ys
ALL M L SERI AL N UM BERS
:
9281 LeSaint Drive Fairfield, Ohio 45014-5457 U.S.A.
(513) 874-2818 800-543-7166 Fax (513) 874-2914
TECHNICAL BULLETIN
Date Released:
www.finncorp.com
No. 2015-0007
December 2, 2015
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Finn T90
Summary of Contents for Finn T90

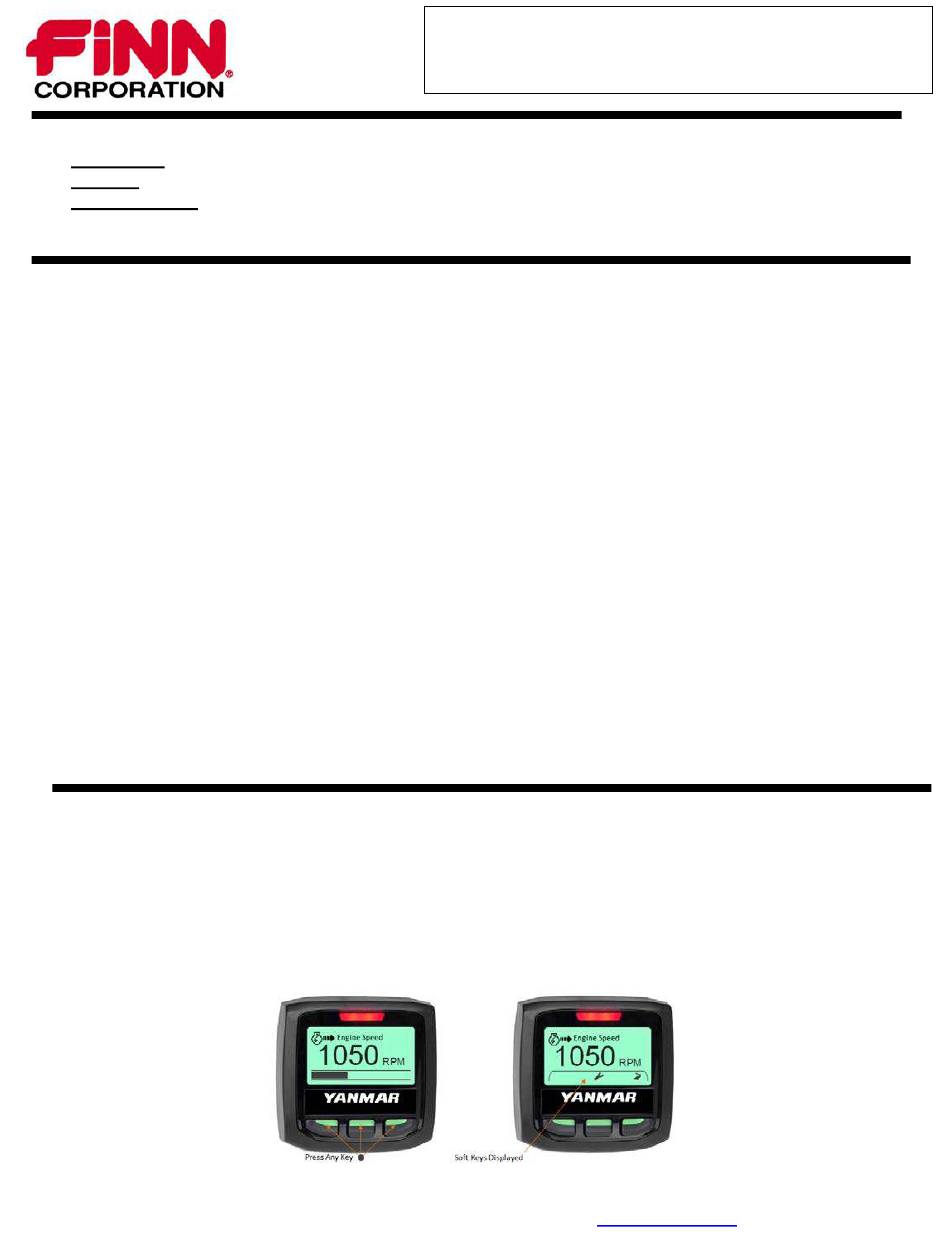

- Page 1 ALL M L SERI AL N UM BERS Purpose: On all Finn machines equipped with a Yanmar 3TNV88C-DYEM engine (031504), some engine settings are set at the factory and are password protected to prevent tampering. When a new replacement control box assembly or display is installed on one of these machines, those settings need to be re-input for proper operation of the engine and machine.
- Page 2 TECHNICAL BULLETIN No. 2015-0007 Date Released: December 2, 2015 3. Press the middle Soft Key with the wrench icon above it to access the Main Menu. 4. Scroll down with the down arrow key to "Engine Settings" and press the right arrow Soft Key to enter. 5.
- Page 3 TECHNICAL BULLETIN No. 2015-0007 Date Released: December 2, 2015 10. Using the “-“ or “+” Soft Keys, adjust the setting to 3000 rpm. 11. Press the left “Exit” Soft Key to return to the Engine Settings Menu. 12. Scroll down with the down arrow key to “Droop/Iso” and press the right arrow to enter. 13.
- Page 4 TECHNICAL BULLETIN No. 2015-0007 Date Released: December 2, 2015 Steps (BB302) 1. After display or control box is installed, Turn the key switch to “ON”. 2. Press the engine start (ENG START) button on the key pad one time to turn on the fuel pump. After the fuel pump has run, press and hold the engine start (ENG START) button until the engine starts.
- Page 5 TECHNICAL BULLETIN No. 2015-0007 Date Released: December 2, 2015 7. Scroll down with the down arrow key to “Min RPM” and press the right arrow to enter. 8. Using the “-“ or “+” Soft Keys, adjust the setting to 1000 rpm. 9.
- Page 6 21. Press the engine stop (ENG STOP) button on the key pad one time to turn off the engine. 22. Turn the key switch to "OFF". * For any addit ional inform at ion please call t he Finn Service depart m ent at 1- 800- 543- 7166 Ext . 226 9281 LeSaint Drive Fairfield, Ohio 45014-5457 U.S.A.
