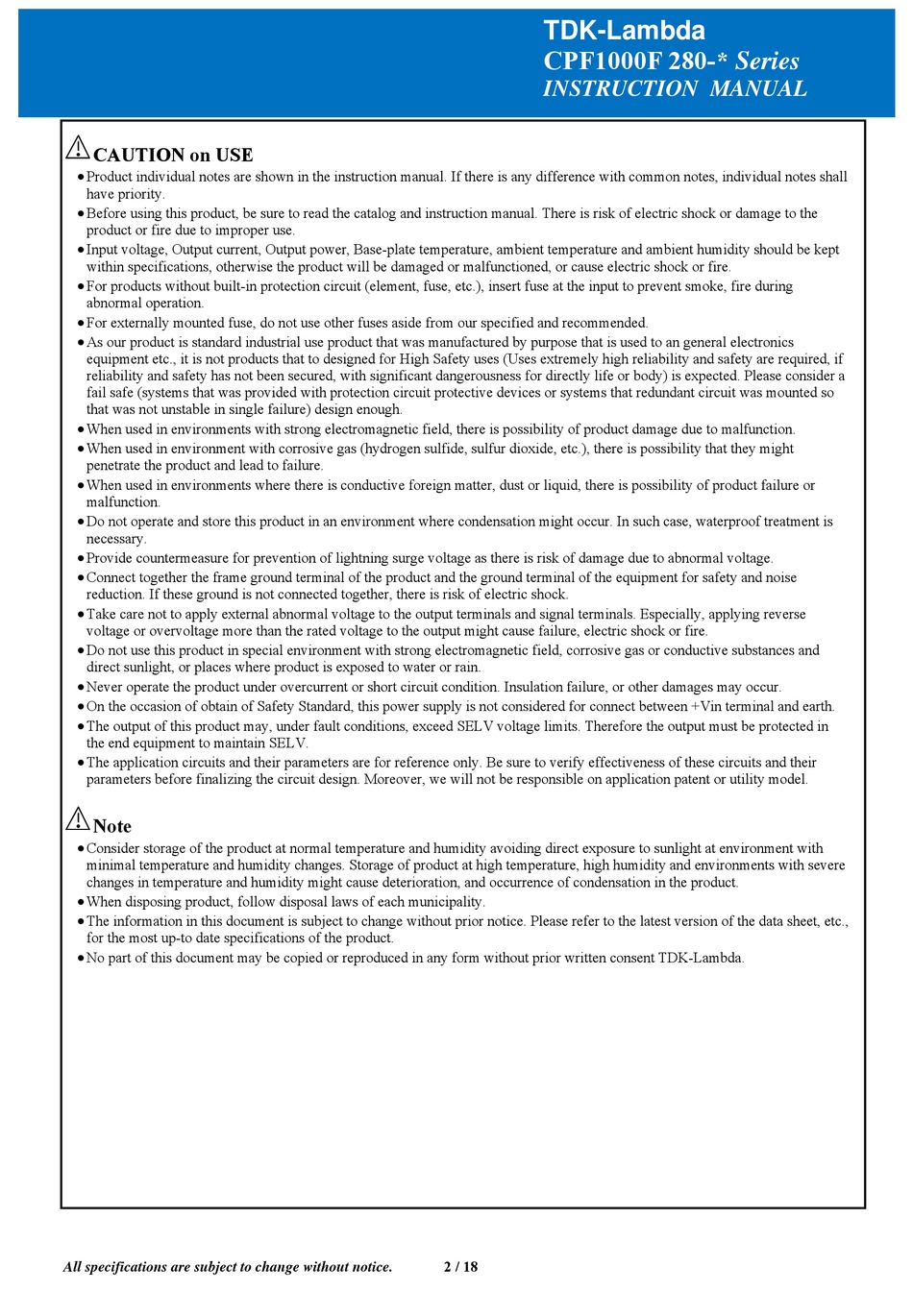

CAUTION on USE


Product individual notes are shown in the instruction manual. If there is any difference with common notes, individual notes shall
have priority.

Before using this product, be sure to read the catalog and instruction manual. There is risk of electric shock or damage to the
product or fire due to improper use.

Input voltage, Output current, Output power, Base-plate temperature, ambient temperature and ambient humidity should be kept
within specifications, otherwise the product will be damaged or malfunctioned, or cause electric shock or fire.

For products without built-in protection circuit (element, fuse, etc.), insert fuse at the input to prevent smoke, fire during
abnormal operation.

For externally mounted fuse, do not use other fuses aside from our specified and recommended.

As our product is standard industrial use product that was manufactured by purpose that is used to an general electronics
equipment etc., it is not products that to designed for High Safety uses (Uses extremely high reliability and safety are required, if
reliability and safety has not been secured, with significant dangerousness for directly life or body) is expected. Please consider a
fail safe (systems that was provided with protection circuit protective devices or systems that redundant circuit was mounted so
that was not unstable in single failure) design enough.

When used in environments with strong electromagnetic field, there is possibility of product damage due to malfunction.

When used in environment with corrosive gas (hydrogen sulfide, sulfur dioxide, etc.), there is possibility that they might
penetrate the product and lead to failure.

When used in environments where there is conductive foreign matter, dust or liquid, there is possibility of product failure or
malfunction.

Do not operate and store this product in an environment where condensation might occur. In such case, waterproof treatment is
necessary.

Provide countermeasure for prevention of lightning surge voltage as there is risk of damage due to abnormal voltage.

Connect together the frame ground terminal of the product and the ground terminal of the equipment for safety and noise
reduction. If these ground is not connected together, there is risk of electric shock.

Take care not to apply external abnormal voltage to the output terminals and signal terminals. Especially, applying reverse
voltage or overvoltage more than the rated voltage to the output might cause failure, electric shock or fire.

Do not use this product in special environment with strong electromagnetic field, corrosive gas or conductive substances and
direct sunlight, or places where product is exposed to water or rain.

Never operate the product under overcurrent or short circuit condition. Insulation failure, or other damages may occur.

On the occasion of obtain of Safety Standard, this power supply is not considered for connect between +Vin terminal and earth.

The output of this product may, under fault conditions, exceed SELV voltage limits. Therefore the output must be protected in
the end equipment to maintain SELV.

The application circuits and their parameters are for reference only. Be sure to verify effectiveness of these circuits and their
parameters before finalizing the circuit design. Moreover, we will not be responsible on application patent or utility model.
Note

Consider storage of the product at normal temperature and humidity avoiding direct exposure to sunlight at environment with
minimal temperature and humidity changes. Storage of product at high temperature, high humidity and environments with severe
changes in temperature and humidity might cause deterioration, and occurrence of condensation in the product.

When disposing product, follow disposal laws of each municipality.

The information in this document is subject to change without prior notice. Please refer to the latest version of the data sheet, etc.,
for the most up-to date specifications of the product.

No part of this document may be copied or reproduced in any form without prior written consent TDK-Lambda.
All specifications are subject to change without notice.
