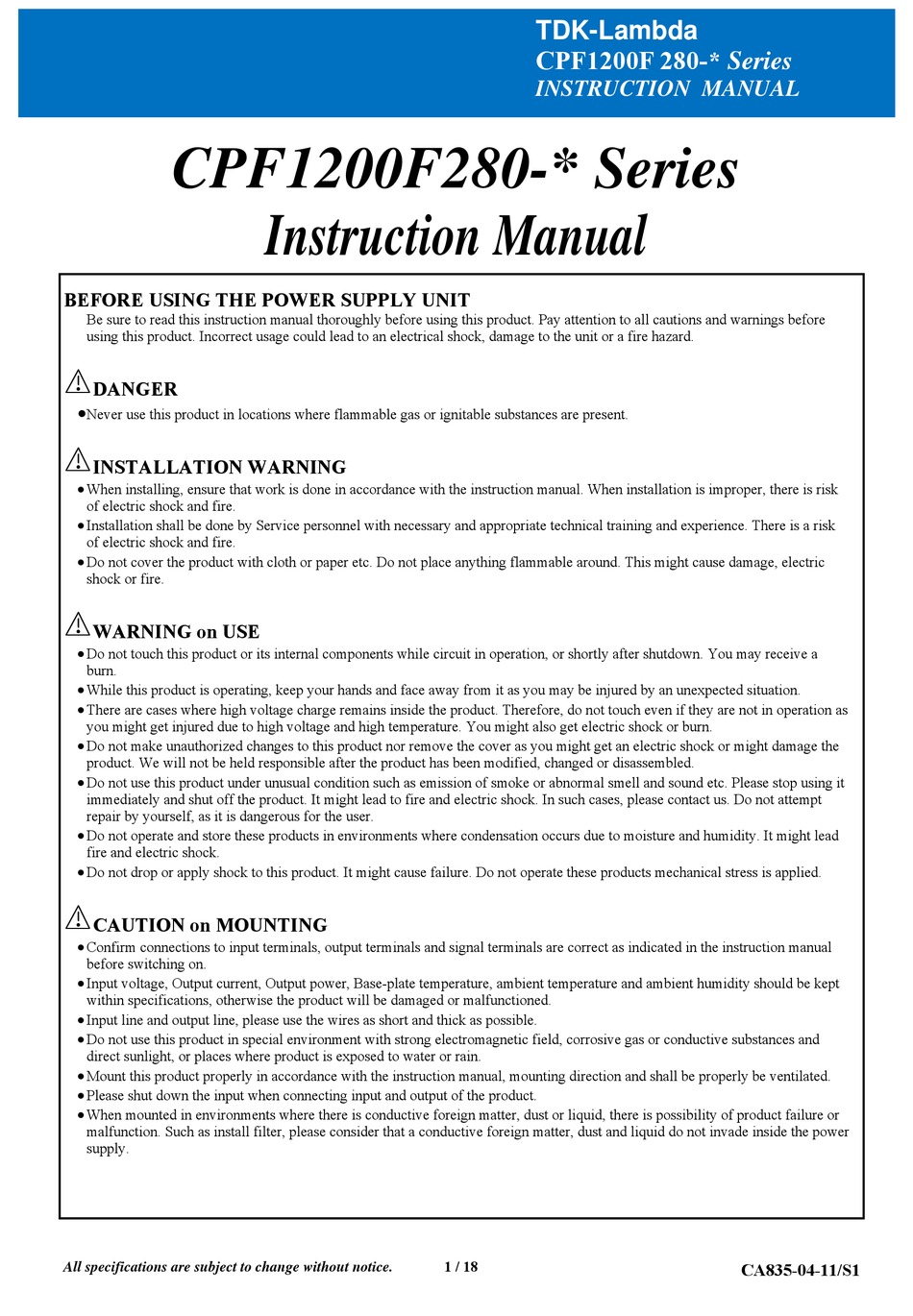

TDK-Lambda CPF1200F280 Series Instruction Manual

CPF1200F280-* Series
BEFORE USING THE POWER SUPPLY UNIT
Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings before
using this product. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard.
DANGER

Never use this product in locations where flammable gas or ignitable substances are present.
INSTALLATION WARNING

When installing, ensure that work is done in accordance with the instruction manual. When installation is improper, there is risk
of electric shock and fire.

Installation shall be done by Service personnel with necessary and appropriate technical training and experience. There is a risk
of electric shock and fire.

Do not cover the product with cloth or paper etc. Do not place anything flammable around. This might cause damage, electric
shock or fire.
WARNING on USE

Do not touch this product or its internal components while circuit in operation, or shortly after shutdown. You may receive a
burn.

While this product is operating, keep your hands and face away from it as you may be injured by an unexpected situation.

There are cases where high voltage charge remains inside the product. Therefore, do not touch even if they are not in operation as
you might get injured due to high voltage and high temperature. You might also get electric shock or burn.

Do not make unauthorized changes to this product nor remove the cover as you might get an electric shock or might damage the
product. We will not be held responsible after the product has been modified, changed or disassembled.

Do not use this product under unusual condition such as emission of smoke or abnormal smell and sound etc. Please stop using it
immediately and shut off the product. It might lead to fire and electric shock. In such cases, please contact us. Do not attempt
repair by yourself, as it is dangerous for the user.

Do not operate and store these products in environments where condensation occurs due to moisture and humidity. It might lead
fire and electric shock.

Do not drop or apply shock to this product. It might cause failure. Do not operate these products mechanical stress is applied.
CAUTION on MOUNTING

Confirm connections to input terminals, output terminals and signal terminals are correct as indicated in the instruction manual
before switching on.

Input voltage, Output current, Output power, Base-plate temperature, ambient temperature and ambient humidity should be kept
within specifications, otherwise the product will be damaged or malfunctioned.

Input line and output line, please use the wires as short and thick as possible.

Do not use this product in special environment with strong electromagnetic field, corrosive gas or conductive substances and
direct sunlight, or places where product is exposed to water or rain.

Mount this product properly in accordance with the instruction manual, mounting direction and shall be properly be ventilated.

Please shut down the input when connecting input and output of the product.

When mounted in environments where there is conductive foreign matter, dust or liquid, there is possibility of product failure or
malfunction. Such as install filter, please consider that a conductive foreign matter, dust and liquid do not invade inside the power
supply.
All specifications are subject to change without notice.
Instruction Manual
TDK-Lambda
CPF1200F 280-* Series
INSTRUCTION MANUAL
1 / 18
CA835-04-11/S1
