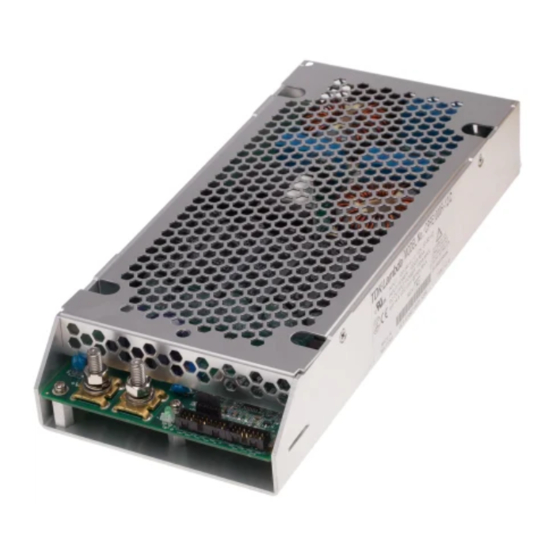

CPFE1000FI Installation Manual
ENGLISH
General Safety Instructions:
READ SAFETY INSTRUCTIONS
Servicing:
These products are not customer serviceable TDK-Lambda UK LTD and their authorised agents only are permitted
to carry out repairs.
Critical Components:
These products are not authorised for use as critical components in nuclear control systems, life support systems or
equipment for use in hazardous environments without the express written approval of the Managing Director of TDK-
Lambda EMEA.
Product Usage:
These products are designed for use within a host equipment which restricts access to authorised competent
personnel.
This product is a component power supply and is only to be installed by qualified persons within other equipment and
must be not operated as a stand alone product.
This product is for sale to business to business customers and can be obtained via distribution channels.
It is not intended for sale to end users.
This product is a component power supply and does not fall within the scope of the EMC directive. Compliance with
the EMC directive must be considered in the final installation. Please contact your local TDK-Lambda office.
Environmental:
These products are IPX0, and therefore chemicals/solvents, cleaning agents and other liquids must not be used.
Environment:
This power supply is a switch mode power supply for use in applications within a Pollution Degree 2, overvoltage
category II environment. Material Group IIIb PCB's are used within it.
Output Loading:
The output power taken from the power supply must not exceed the rating stated on the power supply label, except
as stated in the product limitations in this handbook.
Input Parameters:
This product must be operated within the input parameters stated in the product limitations in this handbook.
End of Life Disposal:
The unit contains components that require special disposal. Make sure that the unit is properly disposed of at the
end of its service life and in accordance with local regulations.
RISK OF ELECTRIC SHOCK
High Voltage Warning:
Dangerous voltages are present within the power supply. The professional installer must protect service personnel
from inadvertent contact with these dangerous voltages in the end equipment.
WARNING: When installed in a Class 1 end equipment, this product must be reliably earthed and professionally
installed.
The (+) or (-) output(s) can be earthed or left floating.
The unit cover(s)/chassis (where applicable) must not be made user accessible.
The mains input connector is not acceptable for use as field wiring terminals.
Page 1 of 12
19 August 2020 (c)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPFE1000FI Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TDK-Lambda CPFE1000FI Series

  • Page 1 General Safety Instructions: READ SAFETY INSTRUCTIONS Servicing: These products are not customer serviceable TDK-Lambda UK LTD and their authorised agents only are permitted to carry out repairs. Critical Components: These products are not authorised for use as critical components in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Managing Director of TDK- Lambda EMEA.
  • Page 2 Internal fuses protect the unit and must not be replaced by the user. In case of internal defect, the unit must be returned to TDK-Lambda UK LTD or one of their authorised agents. A suitable mechanical, electrical and fire enclosure must be provided by the end use equipment for mechanical, electric shock and fire hazard protection.
  • Page 3 Allgemeine Sicherheitsvorschriften: LESEN SIE DIE SICHERHEITSVORSCHRIFTEN Wartung: Diese Produkte können nicht durch den Kunden gewartet werden. Nur TDK-Lambda UK LTD. und deren zugelassene Vertriebshändler sind zur Durchführung von Reparaturen berechtigt. Kritische Komponenten: Diese Produkte sind nicht für die Verwendung als kritische Komponenten in nuklearen Kontrollsystemen, Lebenserhaltungssystemen oder Geräten in gefährlichen Umgebungen geeignet, sofern dies nicht ausdrücklich und...
  • Page 4 Für ummantelt Produkte, verwenden Sie keine Schrauben, die das Gerät mehr als durchdringen; siehe Zeichnung Eine interne Sicherung schützt das Gerät und darf durch den Benutzer nicht ausgetauscht werden. Im Fall von internen Defekten muss das Gerät an TDK-Lambda UK LTD oder einen der autorisierten Vertriebshändler zurückgeschickt werden.
  • Page 5 Consignes générales de sécurité: LIRE LES CONSIGNES DE SECURITE Entretien: Ces produits ne peuvent pas être réparés par l’utilisateur. Seuls, TDK-Lambda UK LTD et ses agents agréés sont autorisés à effectuer des réparations. Composants critiques: Ces produits ne doivent pas être utilisés en tant que composants critiques dans des systèmes de commande nucléaire, dans des systèmes de sauvetage ou dans des équipements utilisés dans des environnements dangereux,...
  • Page 6 Un fusible interne protège le module et ne doit pas être remplacé par l'utilisateur. En cas de défaut interne, le module doit être renvoyé à TDK-Lambda UK LTD ou l'un de ses agents agréés. Une enceinte appropriée doit être prévue par l'utilisateur final pour assurer la protection contre les chocs mécaniques, les chocs électriques et l'incendie.
  • Page 7 Manutenzione: Il cliente non può eseguire alcuna manutenzione su questi prodotti. L'esecuzione delle eventuali riparazioni è consentita solo a TDK-Lambda UK LTD e ai suoi agenti autorizzati. Componenti critici: Non si autorizza l'uso di questi prodotti come componenti critici all'interno di sistemi di controllo nucleari, sistemi necessari alla sopravvivenza o apparecchiature destinate all'impiego in ambienti pericolosi, senza l'esplicita approvazione scritta dell'Amministratore Delegato di TDK-Lambda EMEA.
  • Page 8 Un fusibile interno protegge l'unità e non deve essere sostituito dall'utente. Nell'eventualità di un difetto interno, restituire l'unità a TDK-Lambda UK LTD o a uno dei suoi agenti autorizzati. L'apparecchiatura finale deve includere una recinzione meccanica, elettrica e antincendio per proteggere dai pericoli di natura meccanica, dalle scosse elettriche e dai pericoli di incendio.
  • Page 9 Instrucciones generales de seguridad: LEA LAS INSTRUCCIONES DE SEGURIDAD Servicio: Estos productos no pueden ser reparados por los clientes. TDK-Lambda UK LTD. y sus agentes autorizados son los únicos que pueden llevar a cabo las reparaciones. Componentes fundamentales: Estos productos no pueden ser utilizados como componentes fundamentales en sistemas de control nuclear, sistemas de soporte vital o equipos a utilizar en entornos peligrosos sin el consentimiento expreso por escrito del Director General de TDK-Lambda EMEA.
  • Page 10 Un fusible interno protege la unidad y este no debe ser nunca reemplazado por el usuario. En caso de existir algún defecto interno, la unidad debe ser enviada a TDK-Lambda UK LTD o a uno de sus agentes autorizados. El equipo de uso final debe constituir un recinto de protección mecánica, eléctrica y contra incendios de protección mecánica, contra descargas eléctricas y contra el peligro de incendios.
  • Page 11 Instruções gerais de segurança: LEIA AS INSTRUÇÕES DE SEGURANÇA Manutenção: Estes produtos não são podem ser submetidos a manutenção por parte do cliente. Apenas a TDK-Lambda UK LTD e os seus agentes autorizados têm permissão para realizar reparações. Componentes essenciais: Não é...
  • Page 12 Existe um fusível interno que protege a unidade e que não deve ser substituído pelo utilizador. Em caso de defeito interno, a unidade deve ser devolvida à TDK-Lambda UK LTD ou a um dos seus agentes autorizados. O equipamento de utilização final deve fornecer um bastidor com protecção mecânica, eléctrica e contra incêndios adequada.
  • Page 13: Table Of Contents

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL GENERAL SAFETY INSTRUCTIONS..........................2 1. Timing Sequence ................................4 2. Output Voltage Adjustment Range ..........................4 3. Ripple and Noise ................................5 4. Maximum Line Regulation ............................. 6 5. Maximum Load Regulation ............................6 6.
  • Page 14: General Safety Instructions

    Critical Components This product is not authorized for use as a critical component in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Engineering Director of TDK-Lambda Americas. Servicing This product is not customer serviceable.
  • Page 15 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL CAUTION  As a component part, compliance with the standard will be based upon installation in the final application. This product must be installed in a restricted access location, accessible to authorized competent personnel only. These AC to DC converters have reinforced insulation between the input and the output.
  • Page 16: Timing Sequence

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 1. Timing Sequence Note: IOG is an internal factory measurement test point that is not accessible to the user. When recovering from any fault or reapplication of AC input, the output recovery may be delayed for up to 20 seconds.
  • Page 17: Ripple And Noise

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL Load TRIM Fig. 2-1 Output Voltage Adjustment by applying external voltage Model Adjustment Range Typical External Voltage Range CPFE1000FI-12 9.6 – 14.4V 0.65 – 1.0V CPFE1000FI-28 22.4 – 33.6V 0.65 – 1.0V CPFE1000FI-48 38.4 – 57.6V 0.67 –...
  • Page 18: Maximum Line Regulation

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL Fig. 3-1 Output Ripple Voltage (including Spike Noise) Measurement Method 4. Maximum Line Regulation Maximum line regulation is defined as the maximum output voltage change when the input voltage is gradually changed within the specification range.
  • Page 19: Over Voltage Protection (Ovp)

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 7. Over Voltage Protection (OVP) The CPFE1000FIxx is equipped with OVP feature. The unit will shut down if the voltage on the output is between 125% and 145% of nominal output voltage. The output voltage will recover within 20 seconds after the OVP condition is removed.
  • Page 20: On/Off Control

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 10. ON/OFF Control (+ON/OFF, -ON/OFF terminal) The CPFE1000FIxx is equipped with a ON/OFF control function. Without turning the input supply on and off, the output can be enabled and disabled using this function. The ON/OFF control circuit is isolated from input circuit of the power supply by a photo-coupler.
  • Page 21: Parallel Operation (Ps Terminal)

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 11. Parallel Operation (PS terminal) By connecting the PS terminal of each CPFE1000FIxx, output current can be equally drawn from each unit. A maximum of 6 units of the same model can be connected.
  • Page 22: 11A. Parallel For Non-Redundant Operation

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 11a. Parallel for Non-Redundant Operation The VSH terminal of each CPFE1000FIXX should be connected together during parallel operation. Fig. 11-2 Parallel Operation 19 August 2020...
  • Page 23: 11B. Parallel For Redundant Operation

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 11b. Parallel for Redundant Operation: In cases where an end product or system cannot tolerate any downtime, a redundant power supply or system configuration should be considered. There are a number of ways to construct redundant or fault-tolerant power system. The most common method is to have at least one supply with sufficient output power to fully satisfy the system’s power...
  • Page 24: Series Operation

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 12. Series Operation The output of several units can be connected in series for increased output voltage. It is recommended that diodes be connected in parallel with each unit output to prevent reverse voltage during start-up sequence or in case one of the units shuts down.
  • Page 25: Power On Signal (Ena Terminal)

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 13. Power ON Signal (ENA terminal) This signal is located at the secondary side (output side) and is internally connected to a 5V source via a 4.99kΩ pullup resistor. (Maximum sink current is 100mA and maximum applied voltage is 50V.) Return line for ENA terminal is the COM terminal.
  • Page 26: Auxiliary Power Supply

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 18. Auxiliary Power Supply For external circuits (AUX terminal) The auxiliary output voltage is within the range of 10~14VDC and has a maximum output current of 20mA. The Ground for the auxiliary output is the COM terminal. Avoid shorting the AUX terminal with any other terminal as this will damage the unit.
  • Page 27: Operating Temperature Range

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 19. Operating Temperature Range The CPFE1000FIxx can be mounted in any direction; however, careful consideration should be given to avoid heat accumulation around the module. Verify baseplate temperature at worst case operating condition at the measurement point as shown on page 34. The baseplate temperature must be maintained at or below 85°C on all models.
  • Page 28 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL OUTPUT RATINGS TABLES Model CPFE1000FI-48 (also represents CPFE1000FI-48/P, CPFE1000FI-48/PH CPFE1000FI-48/H) Output Rating (DC) Current (A) @ Current (A) @ Orientation Voltage (V) 90-135 V ac Power Max 170-265 V ac Power Max 48 (38.4–...
  • Page 29 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL For Model CPFE1000FI-48/C (also represents CPFE1000FI-48/CH) Output Rating (DC) Current (A) @ Current (A) @ Orientation Voltage (V) 90-135 V ac Power Max 170-265 V ac Power Max 48 (38.4– 21 @ 30°C 1008 @ 30°C 21 @ 30°C,...
  • Page 30 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL Model CPFE1000FI-28 (also represents CPFE1000FI-28/P, CPFE1000FI-28/PH CPFE1000FI-28/H): Output Rating (DC) Current (A) @ Current (A) @ Orientation Voltage (V) 90-135 V ac Power Max 170-265 V ac Power Max 28 (22.4– 36 @ 50°C 1008 @ 50°C...
  • Page 31 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL For Model CPFE1000FI-28/C (also represents CPFE1000FI-28/CH): Output Rating (DC) Current (A) @ Current (A) @ Orientation Voltage (V) 90-135 V ac Power Max 170-265 V ac Power Max 28 (22.4– 36 @ 30°C 1008 @ 30°C 36 @ 30°C,...
  • Page 32 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL For Model CPFE1000FI-12 (also represents CPFE1000FI-12/P, CPFE1000FI-12/PH, CPFE1000FI- 12/H, CPFE1000FI-12C and CPFE1000FI-12/CH): Output Rating (DC) Current (A) @ Current (A) @ Orientation Voltage (V) 90-135 V ac Power Max 170-265 V ac Power Max 60 @ 50°C,...
  • Page 33: Withstand Voltage

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 20. Withstand Voltage This unit is safety certified to meet a withstand voltage of 4242VDC between input to output, 2500VDC between input and baseplate, and 500VDC from output to baseplate. During production the unit is tested, in accordance with safety requirements, to verify withstand voltage performance.
  • Page 34 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 2.5kVDC 1 minute (20mA) (Short Output to Baseplate) Fig. 20-2 Input to Output Withstand Voltage Test Method 500VDC 1 minute (20mA) Fig.20-3 Output to Baseplate Withstand Voltage Test Method 19 August 2020...
  • Page 35: Insulation Resistance

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 21. Insulation Resistance Use DC Insulation Resistance test equipment (MAX.500V) between output and baseplate. Insulation Resistance must be 100Mohm or more at 500VDC. Take caution that some types of test equipment generate high pulse voltage when switching applied voltage. After test, discharge this module using resistor, etc.
  • Page 36: Connection Details

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 22. Connection Details Input Connection Mains input connection by 3way AMP ‘Mate-n-lock’ connector Mating 3-way housing: AMP 350766-1. Mating crimp terminals: AMP 926893-1 (14~20AWG), 926895-1 (18~24AWG) Pin 3 : Live Pin 2 : Earth...
  • Page 37: Safety Approvals

    When recovering from a fault, the output recovery may be delayed for up to 20 seconds to allow for proper start-up. If the unit still fails to power up, return to TDK-Lambda Americas for evaluation and repair. 26. Connector Locations...
  • Page 38 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 27. I2C Bus Interface 1.- Introduction The I C interface option includes facilities to monitor operating parameters of the Power Supply (PS). The parameters are then transferred to the host PC if demanded, over a standard I C bus.
  • Page 39 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 5.- Operation and Functions 5.1 Digital status Digital status functions are provided by a status byte register. This is an 8-bit word when read by the I controller. Status Byte: Address: 07 Bytes: 1...
  • Page 40 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 5.2 EEPROM Data A 512 bytes EEPROM is included on the I2C option. The EEPROM is programmed at the factory with the data shown on the following table: Serial Number: Address: 01 Bytes: 20 Example: Each number represents an ASCII character in hexadecimal numbering system.
  • Page 41 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 5.3 Analog Functions Analog functions are provided by a 8-channel 10-bit resolution Analog-Digital Converter (ADC).When this device is read by the I2C bus controller it provides a 2 bytes word information. Address Bytes Data...
  • Page 42 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL Output Voltage: Address: 04 Bytes: 2 Example: For 12 volts output Get the HEX number: 2C4 Convert the HEX to DEC number: 708 Multiply the DEC number by Scaling Factor (SF): 0.01668 Vout = 708 * 0.016687 = 11.814 Volts Same method is used for current readings.
  • Page 43 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 6.- Typical application diagram CLOCK RS232/USB DATA SDA (J3) I2C CONVERTOR LOAD CPFE1000FI (J6, J7) A0 A1 A2 ADDRESS SETTING 19 August 2020...
  • Page 44: Mechanical Drawing

    OPERATION MANUAL 28. Mechanical Drawing The CPFE1000Fi series of units are available in the following three chassis configurations: 1) The standard configuration is installed in a U-channel chassis, without a top cover, 2) The /C option is installed in the U- channel chassis with a ventilated top cover (shown in Fig 28-1), and 3) The /P option which has neither the top cover nor the U-channel chassis (shown in Fig 28-2).
  • Page 45 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL Fig 28-2: Dimensions for /P chassis configuration. 19 August 2020...
  • Page 46: Baseplate Temperature Measurement Point

    CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL 29. Baseplate Temperature Measurement Point 30. Heat Sink Selection 19 August 2020...
  • Page 47 CPFE1000FI SERIES POWER SUPPLY OPERATION MANUAL PD = Power Dissipation − �������� = − 1000 = 176 ���������� �� = Thermal Resistance, degrees C per Watt, °C/W Tb = Temperature of Base Plate Ta = Temperature of Ambient Air ��sa = Thermal resistance between Heat Sink and Ambient Air ����a = Thermal resistance between Base Plate and Heat Sink...
