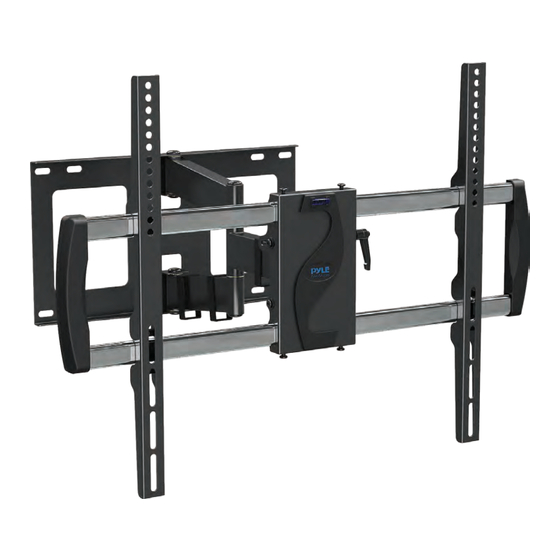

- Page 1 PYWM66 TV Wall Mount Bracket Fits for 42-70'' LED/LCD/OLED & Plasma Flat Screen TV with 2x Standard Weight Support, Weight Up to 132lbs.
-
Page 2: Part List
CAUTION: Please read this instruction carefully before assembly. • Fits for 42-70" plasma and LCD TV. • Weight Capacity: 60Kg (132Lbs). CAUTION: SAFETY WARNING: • Never let children climb on product or play with product. • Do not sit or stand on product. •... -
Page 3: Wall Mounting Hardware
WALL MOUNTING HARDWARE Lag bolt 4pcs Anchor 4pcs M8 washer 4pcs Allen Key 1pc Tube 2pcs Bolt 8pcs TV MOUNTING HARDWARE a--M4x12 bolt b--M6x12 bolt c--M8x25 bolt d--M4x30 bolt e--M6x35 bolt 4pcs 4pcs 4pcs 4pcs 4pcs f--M8x50 bolt g--M6x17mm spacer h--M8x22mm spacer i--M8x10mm spacer 4pcs... - Page 4 If you mount TV mount into wood studs, pre-drill the mark 4 holes using 7/32" drill bit to a depth of 2.5", x Wall plate (A) to the wall with lag bolt and washers (Figure 2) CAUTION: The wood stud min size is 2x4 inches, and surface covering can't more than 5/8 inches.
- Page 5 Step 2: Attach TV Bracket B to the back of TV, choose corresponding bolt, washer and spacer to x the holes of TV rear. (Figure 3) If the back of TV is not at, or the bolts used to assemble TV are too long, or there is interfere between TV bracket and cable inlets, we highly recommend you to use spacers.
- Page 6 Figure 4 Step 4: Adjust the TV angle and manage the wire (Figure 5) Check and tighten all screws you can use handle to adjust tilt angle. Tighten handle when the screen is in a desire angle. Manage the wire to avoid the wire will be damaged by TV when turning and x the wire clip with the wire tie according to the length of the wire.
-
Page 7: Product Dimensions
PRODUCT DIMENSIONS: 728mm MAX: 626mm +5° ~ -15° 71mm~421mm 530mm MAX: 506mm PAY EXTRA CARE AND ATTENTION WHEN YOU FASTEN TWO TV MOUNTS TO THE BACK PANEL OF TV IN STEP 2. MAKE SURE THE APPROPRIATE MOUNT HARDWARE IS BEING USED PROPERLY. 1. - Page 8 PYWM66 TV Wall Mount Bracket Fits for 42-70'' LED/LCD/OLED & Plasma Flat Screen TV with 2x Standard Weight Support, Weight Up to 132lbs. Features: • Fits for 42'' to 70'' TV or Fits for 16’’ Studs Plus Concrete Wall •...
- Page 9 Technical Specs: • Mount Type: Large Full Motion Mount • TV Size: 42''- 70'' • Fitting Studs Spacing: Up to 16 • Max VESA: 23.62'' x 19.69'' -inches • Weight Capacity: 132 lbs. (60 Kg.) • Tilt angle: +5°/-15° • Left to Right Swivel Range: 90°...
- Page 10 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
