ELECTRICAL CONNECTIONS

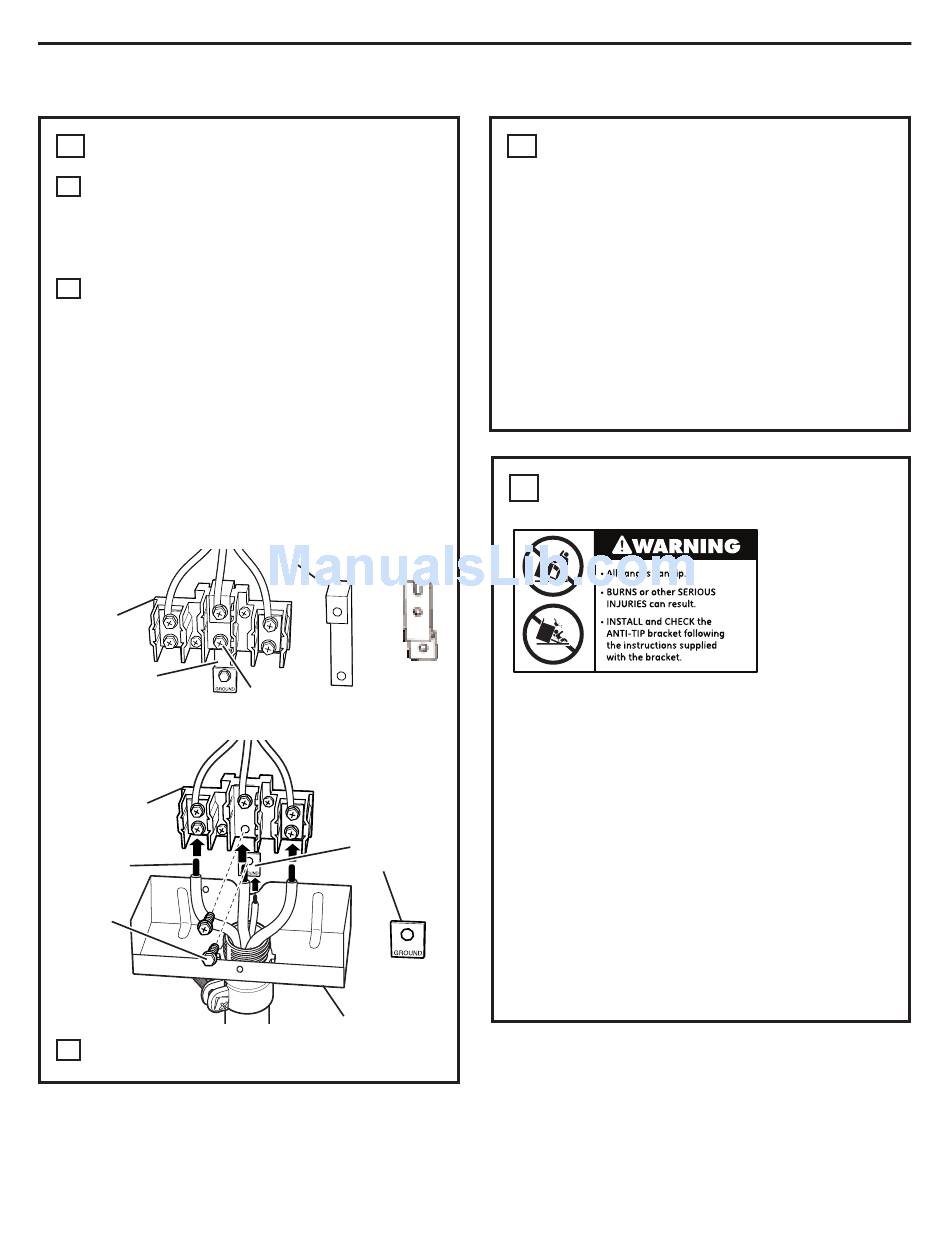

4-WIRE CONDUIT INSTALLATION
17
Loosen the three lower terminal screws
A
from the terminal block. Remove the
ground screw and ground plate and
retain them. Cut and discard the ground
strap. DO NOT DISCARD ANY SCREWS.
Insert the ground bare wire tip between
B
the range frame and the ground plate
(removed earlier) and secure it in place
with the ground screw (removed earlier).
Insert the bare wire (white/neutral) tip
through the bottom center of the
terminal block opening. Insert the two
side bare wire tips into the lower left and
the lower right terminal block openings.
Tighten the screws until the wire is firmly
secured (35 to 50 inch-lbs.). Do not over-
tighten the screws since it could damage
the wires.
Before
Terminal
block
Ground strap
After
Terminal
block
Wire tips
Ground
screw
C Proceed to Step 18.
Installation Instructions
Ground strap
or
Neutral
terminal
Ground
plate
(grounding
to range)
Bracket
(CONT.)
REINSTALL WIRE COVER
18
NOTE: When reinstalling the wire cover,
make sure that wires do not become pinched
between the wire cover and the housing.
NOTE: The ground strap must be attached
when using the 3-wire cord.
• Terminations must be either closed loop
terminals or open-end spade lugs.
• On some models, a filter capacitor may
be connected between the black and
ground leads on the junction block.
Do not remove capacitor.
19

ANTI-TIP DEVICE INSTALLATION

instructions shipped with the bracket for complete
details before attempting to install.
To check if the bracket is installed and engaged
properly, remove the storage drawer or kick
panel and look underneath the range to see that
the leveling leg is engaged in the bracket. On
models without a storage drawer or kick panel,
carefully tip the range forward. The bracket
should stop the range within 4 inches. If it does
not, the bracket must be reinstalled. If the range is
pulled from the wall for any reason, always repeat
this procedure to verify the range is properly
secured by the anti-tip bracket. Never completely
remove the leveling legs or the range will not be
secured to the anti-tip device properly.
10
To reduce
the risk of
tipping the range,
the range must
be secured by a
properly installed
anti-tip bracket.
See installation
