INSTALL THE RANGE

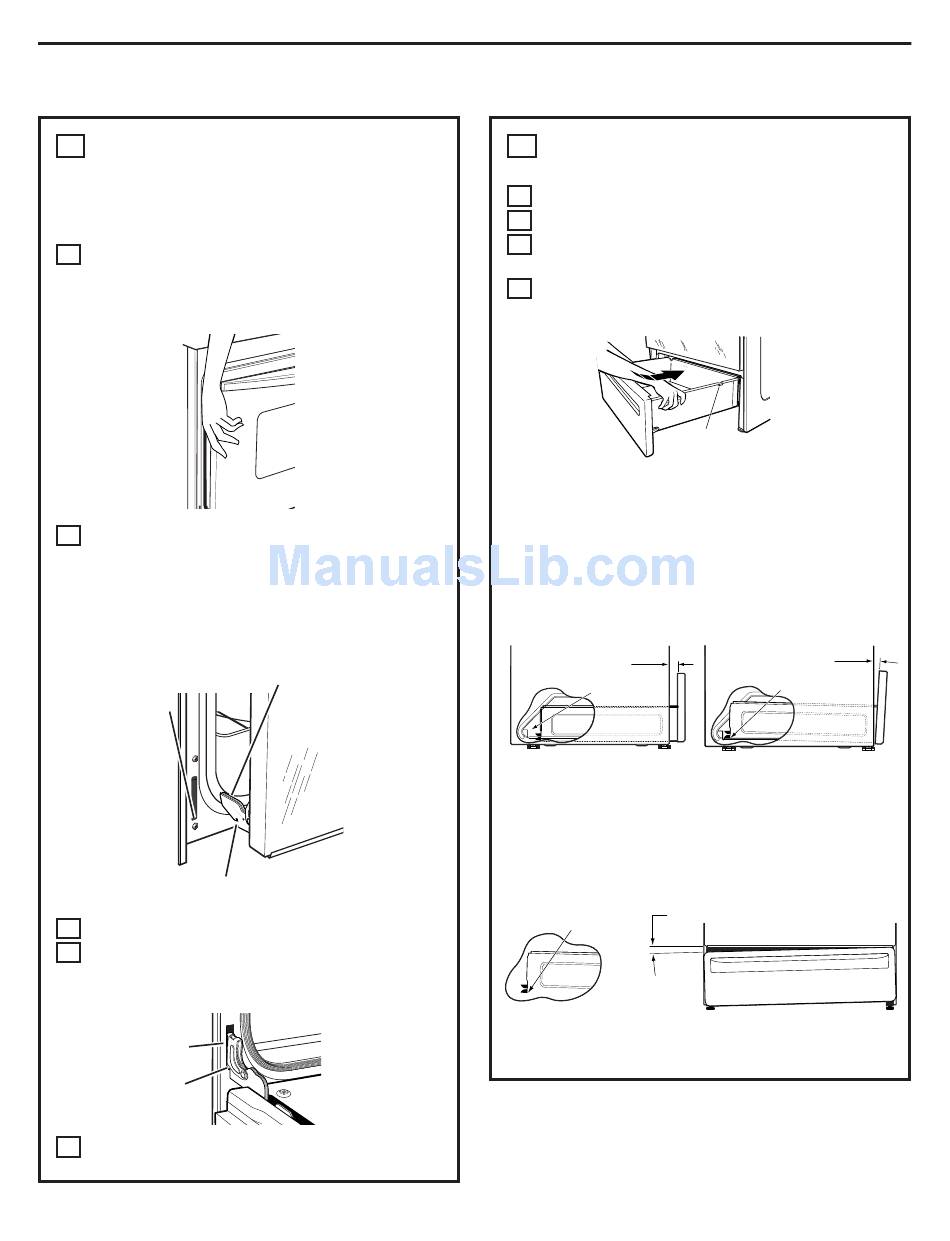

REPLACE THE OVEN DOOR

22
NOTE: The oven door is heavy. You may need
help lifting the door high enough to slide it
into the hinge slots. Do not lift the door by
the handle.
A
Lift the oven door by placing one hand
on each side. The door is heavy, so you
may need help. Do not lift the door by
the handle.
B With the door at the same angle as the
removal position (halfway between the
closed and broil stop position), seat the
notch of the hinge arm into the bottom
edge of the hinge slot. The notch of the
hinge arm must be fully seated into the
bottom of the slot.
Bottom edge
of slot
Hinge notch
C Open the oven door as far as it will open.
D Push the hinge locks up against the front
frame of the oven cavity, to the locked
position.
Hinge in
locked position
Notch of hinge
securely fitted
into bottom of
hinge slot
E Close the oven door.
Installation Instructions
(CONT.)
Hinge arm
REPLACE THE STORAGE
23
DRAWER
Place the drawer rail on the guides.
A
Push the drawer in until it stops.
B
C Lift the front of the drawer and push in
until the stops clear the guides.
Lower the front of the drawer and push in
D
until it closes.
SPECIAL INSTRUCTIONS IF YOU ARE
HAVING PROBLEMS WHILE REPLACING
THE STORAGE DRAWER
If Drawer Won't Close:
Drawer does
not close
Power cord
may be completely
obstructing
drawer
in this area
Remove and replace, making sure the power
cord is not obstructing the drawer and/or the
rail is in the guide.
If Drawer is Crooked:
Rear drawer
support is on top
of guide rail on
the high side
Remove and replace, making sure the rail is in
the guide.
12
Stop
Drawer
front panel
tipped away
from body
Rear drawer
side
support is
resting on top
of guide rail
Drawer front panel
tipped to one side
