44 C 4: C
HAPTER ONFIGURING THE

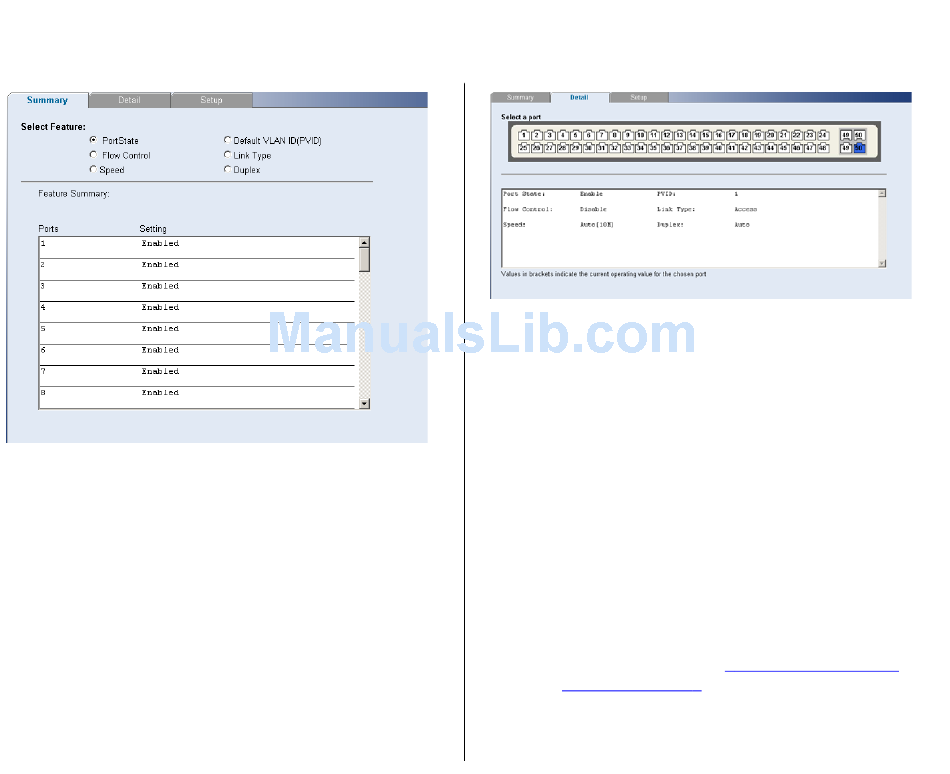

Figure 38 Port Administration Summary Screen
Detail
Use the Detail tab to display detailed port setting
information for a port.
S
WITCH
Figure 39 Port Administration Detail Screen
Setup
Use the Setup tab to configure the port settings. The
following options are available:
Port State – Enables and disables the port.
■
Flow Control – Enables and disables flow control
■
for the entire Switch. When flow control is
enabled, the Switch regulates the packet flow so
that a sending device does not transmit more
packets than a receiving device can process. If flow
control is disabled, packets may be dropped under
certain periods of high traffic.
Flow control is disabled by default.
Speed – Sets the speed mode of the port. Available
■
options include auto, 10, 100, and 1000. For 1000
Mbps connections, see
Mbps Connections" below.
Auto (or autonegotiation) sets the optimum
combination of speed and duplex that can be
supported by both ends of the link.
"Speed/Duplex for 1000
