Baseline Switch 2126-G (3C16472)
User Guide
DUA1647-2AAA01
I
NTRODUCTION
®
The 3Com
Baseline Switch 2126-G is a versatile, easy-to-use
unmanaged switch. It is ideal for users who want the high-speed
performance of 10/100 switching but do not need sophisticated
management capabilities. The Baseline Switch 2126-G is shipped
ready for use. No configuration is necessary.
The Switch has 24 shielded RJ-45, 10/100 Mbps auto-negotiating
ports and two 10/100/1000BASE-T ports. Each port automatically
determines the speed and duplex mode of the connected
equipment and provides a suitable switched connection. Each
port also supports automatic MDI/MDI-X detection.
The Switch is suitable for office use where it can be free
standing, or rack mounted (in a wiring closet or equipment
room).
The Switch comes with:
One power cord for use with the Switch
Four self-adhesive rubber pads
One mounting kit
The Switch provides high performance switched connections to
10 Mbps and 100 Mbps hubs, servers and workstations that
require a dedicated switched link.

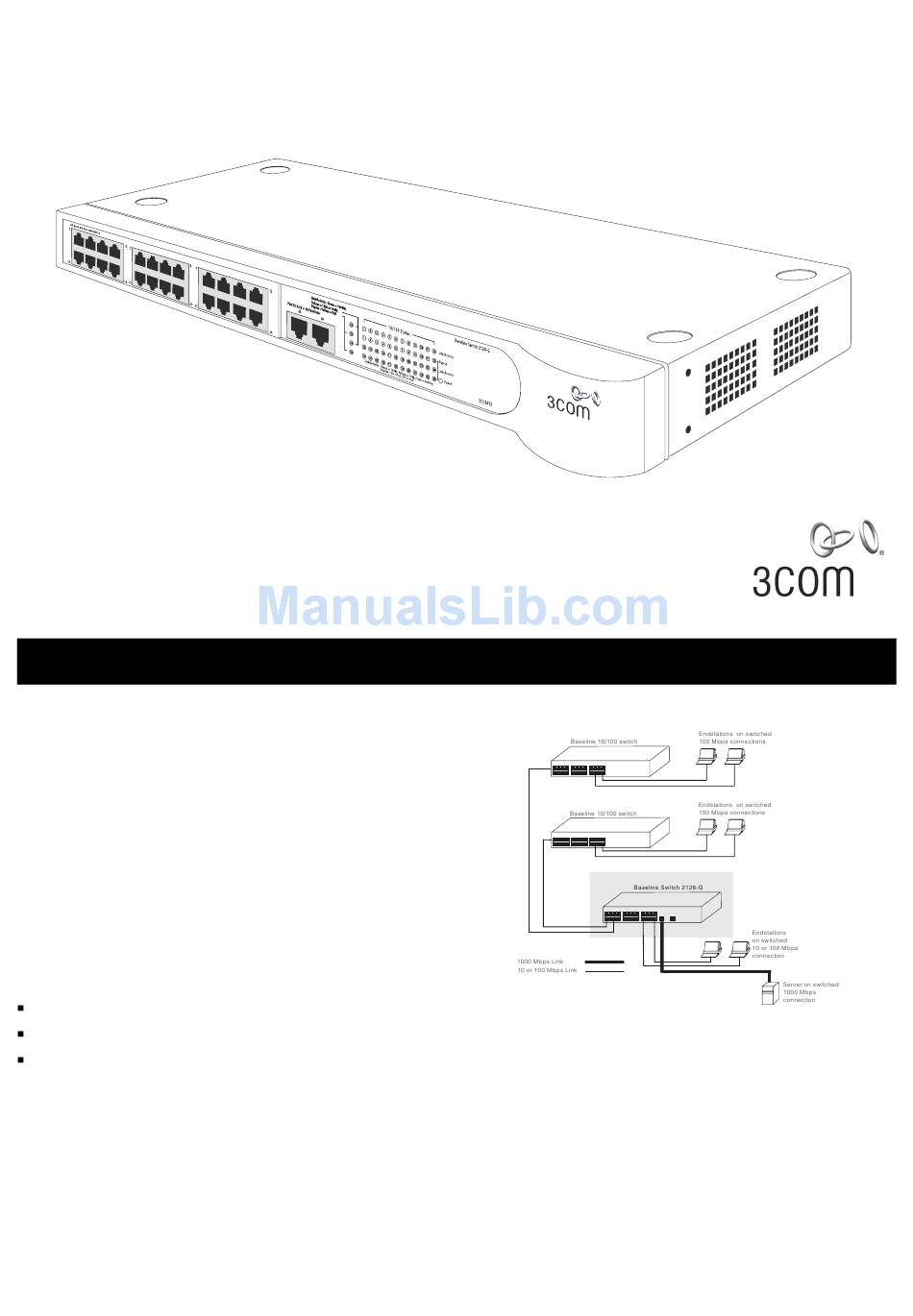

The following diagram shows an example configuration.
