Group Coverage Member Assignments - Lucent Technologies Merlin Magix Configuration Note

Lucent Technologies
Communications
Applications Group
Extensions è
or More
èGroup Coverage èDial Group
Number(1-30) for Octel 50
èEnter èDial extension number
èEnter à Back à Back
Magix's Mode All
Factory Setting Not applicable
Extensions è
or More
è Cover Delay è
or More
Group èDial Sender's Extension
èEnter è Number of Rings (1 -
9) 4èEnter à Back à Back

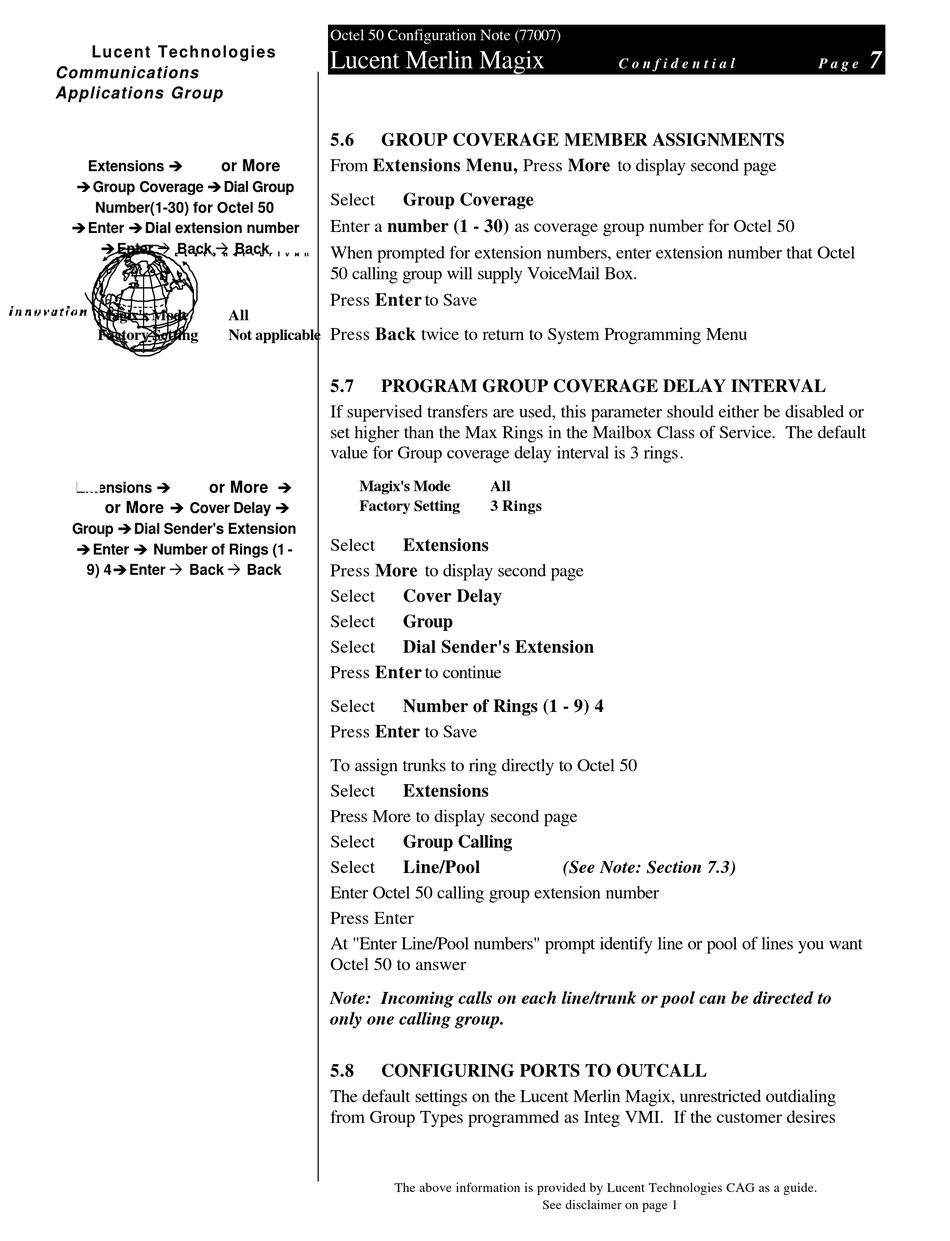

Octel 50 Configuration Note (77007)
Lucent Merlin Magix
5.6

GROUP COVERAGE MEMBER ASSIGNMENTS

From Extensions Menu, Press More to display second page
Select Group Coverage
Enter a number (1 - 30) as coverage group number for Octel 50
When prompted for extension numbers, enter extension number that Octel
50 calling group will supply VoiceMail Box.
Press Enter to Save
Press Back twice to return to System Programming Menu
5.7 PROGRAM GROUP COVERAGE DELAY INTERVAL
If supervised transfers are used, this parameter should either be disabled or
set higher than the Max Rings in the Mailbox Class of Service. The default
value for Group coverage delay interval is 3 rings.
è
Magix's Mode
Factory Setting
Select Extensions
Press More to display second page
Select Cover Delay
Select Group
Select Dial Sender's Extension
Press Enter to continue
Select Number of Rings (1 - 9) 4
Press Enter to Save
To assign trunks to ring directly to Octel 50
Select Extensions
Press More to display second page
Select Group Calling
Select Line/Pool
Enter Octel 50 calling group extension number
Press Enter
At "Enter Line/Pool numbers" prompt identify line or pool of lines you want
Octel 50 to answer
Note: Incoming calls on each line/trunk or pool can be directed to
only one calling group.
5.8 CONFIGURING PORTS TO OUTCALL
The default settings on the Lucent Merlin Magix, unrestricted outdialing
from Group Types programmed as Integ VMI. If the customer desires
The above information is provided by Lucent Technologies CAG as a guide.
C o n f i d e n t i a l
All
3 Rings
(See Note: Section 7.3)
See disclaimer on page 1
7
P a g e
