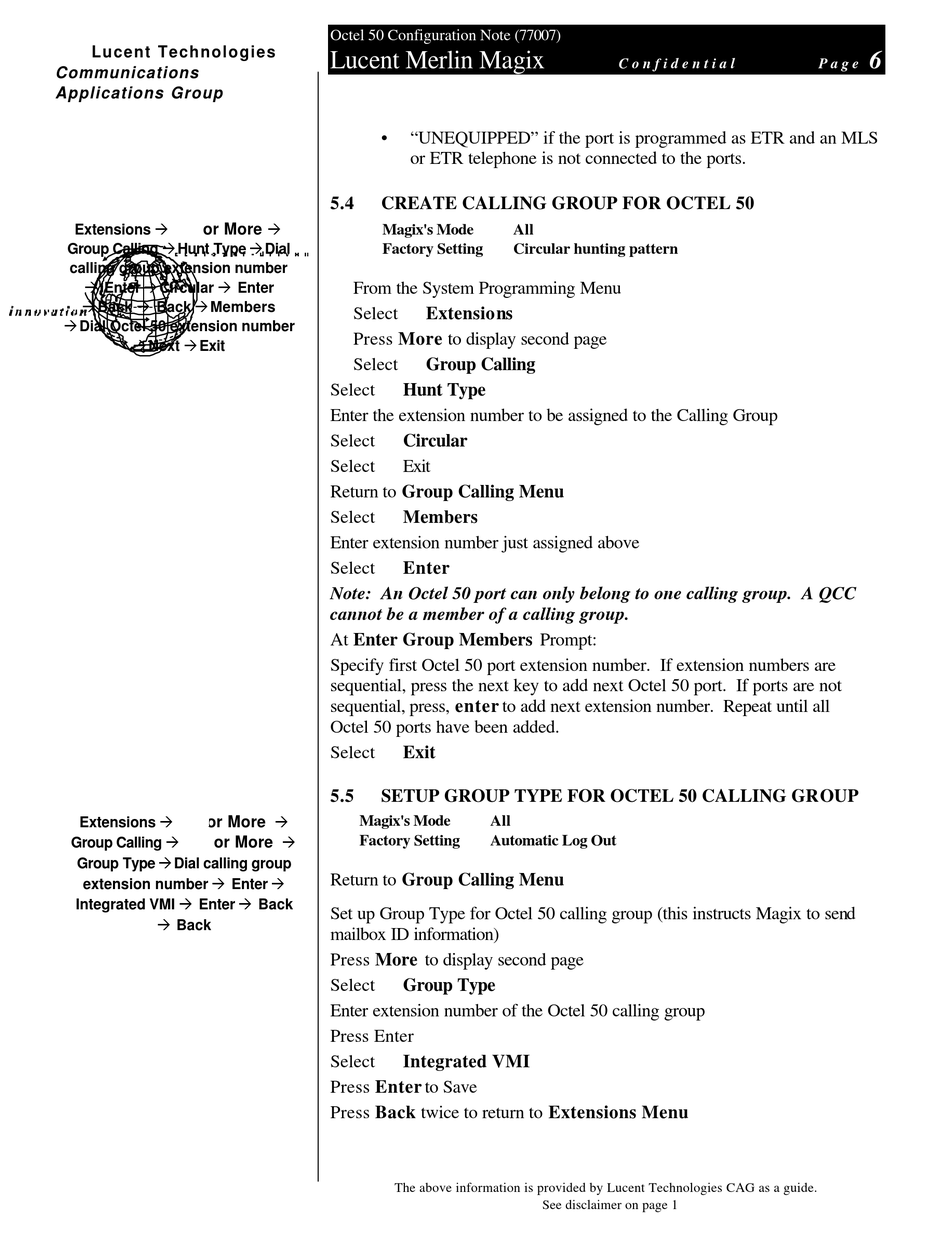

Lucent Technologies Merlin Magix Configuration Note page 6

Lucent Technologies
Communications
Applications Group
Extensions à
or More
Group Calling à Hunt Type à Dial
calling group extension number
à Enter à Circular à Enter
à Back à Back à Members
à Dial Octel 50 extension number
à Next à Exit
Extensions à
or More
Group Calling à
or More
Group Type à Dial calling group
extension number à Enter à
Integrated VMI à Enter à Back
à Back
Octel 50 Configuration Note (77007)
Lucent Merlin Magix
• "UNEQUIPPED" if the port is programmed as ETR and an MLS
or ETR telephone is not connected to the ports.
5.4 CREATE CALLING GROUP FOR OCTEL 50
à
Magix's Mode
Factory Setting
From the System Programming Menu
Select Extensions
Press More to display second page
Select Group Calling
Select Hunt Type
Enter the extension number to be assigned to the Calling Group
Select Circular
Select Exit
Return to Group Calling Menu
Select Members
Enter extension number just assigned above
Select Enter
Note: An Octel 50 port can only belong to one calling group. A QCC
cannot be a member of a calling group.
At Enter Group Members Prompt:
Specify first Octel 50 port extension number. If extension numbers are
sequential, press the next key to add next Octel 50 port. If ports are not
sequential, press, enter to add next extension number. Repeat until all
Octel 50 ports have been added.
Select Exit
5.5 SETUP GROUP TYPE FOR OCTEL 50 CALLING GROUP
à
Magix's Mode
à Factory Setting
Return to Group Calling Menu
Set up Group Type for Octel 50 calling group (this instructs Magix to send
mailbox ID information)
Press More to display second page
Select Group Type
Enter extension number of the Octel 50 calling group
Press Enter
Select Integrated VMI
Press Enter to Save
Press Back twice to return to Extensions Menu
The above information is provided by Lucent Technologies CAG as a guide.
C o n f i d e n t i a l
All
Circular hunting pattern
All
Automatic Log Out
See disclaimer on page 1
6
