O c t e l ® 5 0
M e s s a g i n g
S e r v e r
Central Office
Trunks
Telephone
Inband signaling is
used for integration
Supported Voice Processing
Module
Configuration Note 77007
Lucent Merlin Magix
Revised 1/26/00
1.0
METHOD OF INTEGRATION
Integration is achieved by Inband signaling. Call forward to personal
greeting is achieved via DTMF signals passed from the Lucent Merlin
Magix to Octel 50. Message waiting indicators are set and canceled by
dialing a feature access code followed by the extension number. A hook-
flash followed by the extension transfers the caller to the operator.
1.1 SUPPORTED VOICE PROCESSING MODULE
The Octel 50 is a Year 2000 (Y2K) compliant, PC based, enhanced voice
messaging product release intended to replace the Smooth Operator,
Smooth Operator Lite and Cooperator product lines.
Disclaimer: Configuration Notes are designed to be a general guide reflecting Octel
Communications Corporation, a subsidiary of Lucent Technologies Inc., experience configuring its
systems. The information contained in this note is based on knowledge available at the time of
publication and is subject to change without notice. Please understand that you may experience a
problem not detailed in a Configuration Note. If so, please notify Sales Design Support Center
(SDSC) at (888) 297-4700, and if appropriate we will include it in our next revision. Lucent
Technologies accepts no responsibility for errors or omissions contained herein.
™

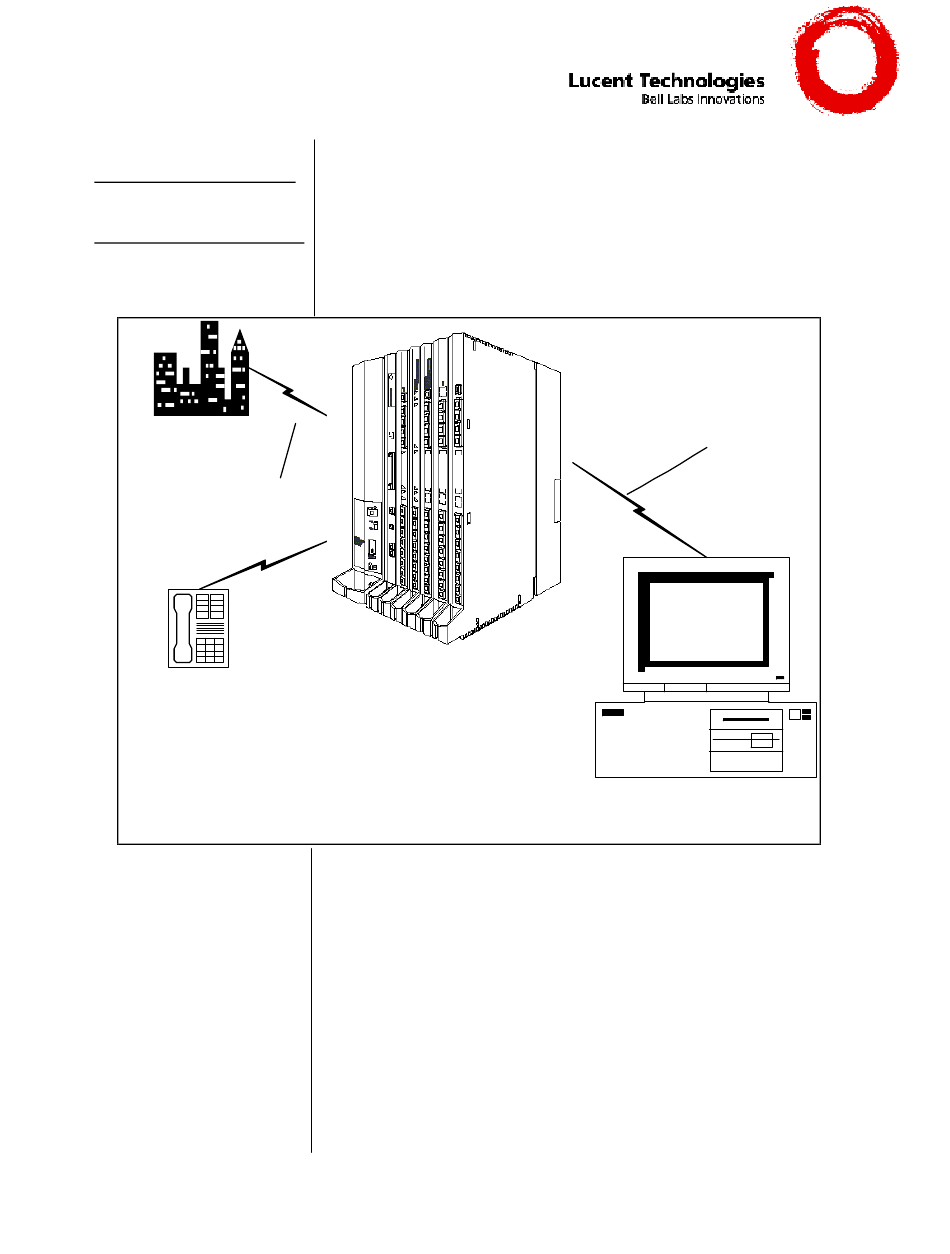

Merlin Magix
Analog Lines
Desktop Computer
With
Dialogic Analog Board(s)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lucent Technologies Merlin Magix
Summary of Contents for Lucent Technologies Merlin Magix
- Page 1 Smooth Operator Lite and Cooperator product lines. Disclaimer: Configuration Notes are designed to be a general guide reflecting Octel Communications Corporation, a subsidiary of Lucent Technologies Inc., experience configuring its systems. The information contained in this note is based on knowledge available at the time of publication and is subject to change without notice.
- Page 2 Octel 50 FaxMail is a two-port board. You will need: One RJ-14 jack with 4-conductor line cord for every two Octel 50 < ports. For optional remote service access: < The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1...
-
Page 3: Supported Features
All changes Magix system parameters to the Lucent Merlin Magix should be performed by a certified System Manager—those personnel who plan, program, maintain, and manage the system or, qualified support personnel who are responsible for installation and initial system programming. - Page 4 Extensions can be renumbered to any number shown in the white spaces. LUCENT MERLIN MAGIX SYSTEM PROGRAMMING Refer to the Programming section in the Lucent Merlin Magix manual for Lucent Merlin Magix System information on entering, saving, and exiting database programming.
- Page 5 From the System Programming Menu à Status Select Maintenance Select Ports Select Stations Select Status The profile shows: • “T/R” if the port is programmed as T/R. The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1...
- Page 6 Enter extension number of the Octel 50 calling group Press Enter Select Integrated VMI Press Enter to Save Press Back twice to return to Extensions Menu The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1...
-
Page 7: Group Coverage Member Assignments
CONFIGURING PORTS TO OUTCALL The default settings on the Lucent Merlin Magix, unrestricted outdialing from Group Types programmed as Integ VMI. If the customer desires The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1... - Page 8 Repeat until all the Octel 50 ports that you require for outdialing have been changed. CONFIGURING THE SUBSCRIBER STATIONS Set up a coverage group for extending call to Octel 50 The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1...
- Page 9 Number of Milliseconds to Wait for Digits Code for Go to Voice Mail #03# Start at End of String for Go to Voice Mail Disabled The above information is provided by Lucent Technologies CAG as a guide. See disclaimer on page 1...
- Page 10 Enabled Location of Mailbox Number for Default Code Note -- Code for Go to Voice Mail - The Lucent Merlin Magix will send either a #02# or a #03# for a code to go to Voice Mail depending on whether a call is internal or external. We chose...
-
Page 11: Intercom Paging
= the trunk number of the paging trunk port. CALLING GROUP LOG OUT If the Lucent Merlin Magix loses power, or the Voice Mail System is shut down for a period of time, the Voice Mail Calling group will log itself out and not direct calls to the Voice Mail. - Page 12 TR114 is a registered trademark of Brooktrout Technology Inc. © Copyright 1996 - 2000 Octel Communications Corporation, a subsidiary of Lucent Technologies Inc. All rights reserved. All trademarks identified by the ® and ™ are registered trademarks or trademarks respectively of Octel Communications Corporation, a subsidiary of Lucent Technologies.
