AVProEdge AC-DA210-HDBT User Manual
Hdbaset 2-8-2 splitter with audio de-embedding, edid management, and switchable inputs
Hide thumbs
Also See for AC-DA210-HDBT:
- Operation manual (12 pages) ,
- Quick start manual (4 pages) ,
- Operation manual (12 pages)
Related Manuals for AVProEdge AC-DA210-HDBT
Summary of Contents for AVProEdge AC-DA210-HDBT
- Page 1 User Manual HDBaseT 2-8-2 splitter with Audio De-Embedding, EDID Management, and switchable inputs. AC-DA210-HDBT...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F E A T U R E S ... -
Page 3: Introduction
The dual HDMI inputs allow you to expand the switching virtually forever. The AC-DA210-HDBT is ideal for Retail Spaces, Bars, Restaurants, Showrooms and Public Spaces where you want to have consistent messaging, images or signage across large spaces. Having two inputs allows you to option between sources like custom signage, computers and any HDCP protected content. -
Page 4: Specifications
Specifications... -
Page 5: Compatible Hdbaset Receivers
Compatible HDBaseT Receivers AC-EX70-444-RNE (Receiver /No Ethernet) AC-EX70-SC2-R (Scaling Receiver) · 70M 4k 60 4:4:4 & HDR · 70M 4k 60 4:4:4 & HDR · 100M 1080P · 100M 1080P AC-CX100-RAMP · 70M 4k 60 4:2:0 & HDR · 70M 1080P AC-EX70-UHD-R ·... -

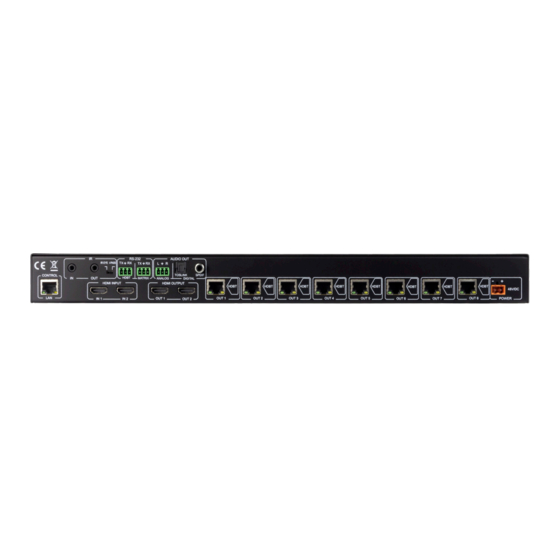

Page 6: Front And Rear Panel Overview
Front and Rear Panel Overview These devices are perfect for distributing any one/two sources to an unlimited amount of displays. (One source at a time) Think: · Retail signal distribution – Big Box Stores & Local Retail for Advertising; School’s & Office’s for Infoboards –... -
Page 7: Front Panel Control - Switching
Front Panel Control - Switching The AC-DA210-HDBT can be switched from the front panel by pressing the “Select” button. This switches back and forth from Input 1 and Input 2. Input Status Indicator Lights Output Status Input Selection Indicator Lights... -
Page 9: Extracted Audio
Extracted Audio: The extracted audio is always active by default, you may simply plug into any/all of the ports (Toslink, SP- DIF, 2CH) and the audio will be output based on the active source. Additionaly the extracted audio ports can be disabled/enabled via RS-232 & TCP/IP. See page(s) for command list. - Page 10 I-PASS: Set the switch to “I-PASS” to utilize a 3.5mm direct connection to a control system. IR EYE: Set the switch to “IR EYE” to utilize an IR Receiving eye.
-
Page 11: R S - 2 3 2 A N D T C P / I P C O N T R O
RS-232 and TCP/IP Control: The AC-DA210-HDBT can be controlled with either RS-232 or TCP/IP commands. Certain switching or format configurations can only be done using these commands. We recommend using either the MyUART (RS-232 - free) or Hercules (TCP/IP - free) apps as they are very easy to use for sending commands to the machine. -
Page 12: R S - 2 3 2 A N D T C P / I P C O N T R O L C O N
RS-232 and TCP/IP Control Cont. The AC-DA210-HDBT has two RS-232 ports on the back. One is for controlling the AC-DA210-HDBT (Matrix) and the other is for sending RS-232 commands to/through the HDBaseT Extenders. · HDBT - For sending RS-232 commands to the HDBaseT Receivers� · MATRIX - For controlling the DA, see Page 13 for the AC-DA210-HDBT complete command list� ... -
Page 13: C O M M A N D L I S
Command List: · Baudrate: 57600 · Bit Num: 8 · Checksum: None · Stop Bit: 1 ... -
Page 14: T R O U B L E S H O O T I N
Troubleshooting · Verify Power - Check that the power supply is properly connected and on an active circuit. The red power LED on the front should be illuminated along with any active Input(s) and Out- put(s). · Verify Connections - Check that all cables are properly connected. ·... -
Page 15: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. · Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 16: S U P P O R
Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provid- · Product name and model number · Product serial number ·... - Page 17 Dealers, Re-sellers, and Installers can request an RMA AVPro Edge Tech Support Rep or their Sales Engineer. Or you may email support@avproedge.com or fill out the general contact form at www.avproedge.com End users may not request and RMA directly from AVPro Edge and will be referred back to the Dealer, Re-seller or Installer.
- Page 18 The maximum liability of AVPro Global Holdings LLC under this limited warranty shall not exceed the actual purchase price paid for the product. AVPro Global Holdings LLC is not responsible for direct, special, inci- dental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory to the maximum extent permitted by law.
- Page 21 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge�com...
