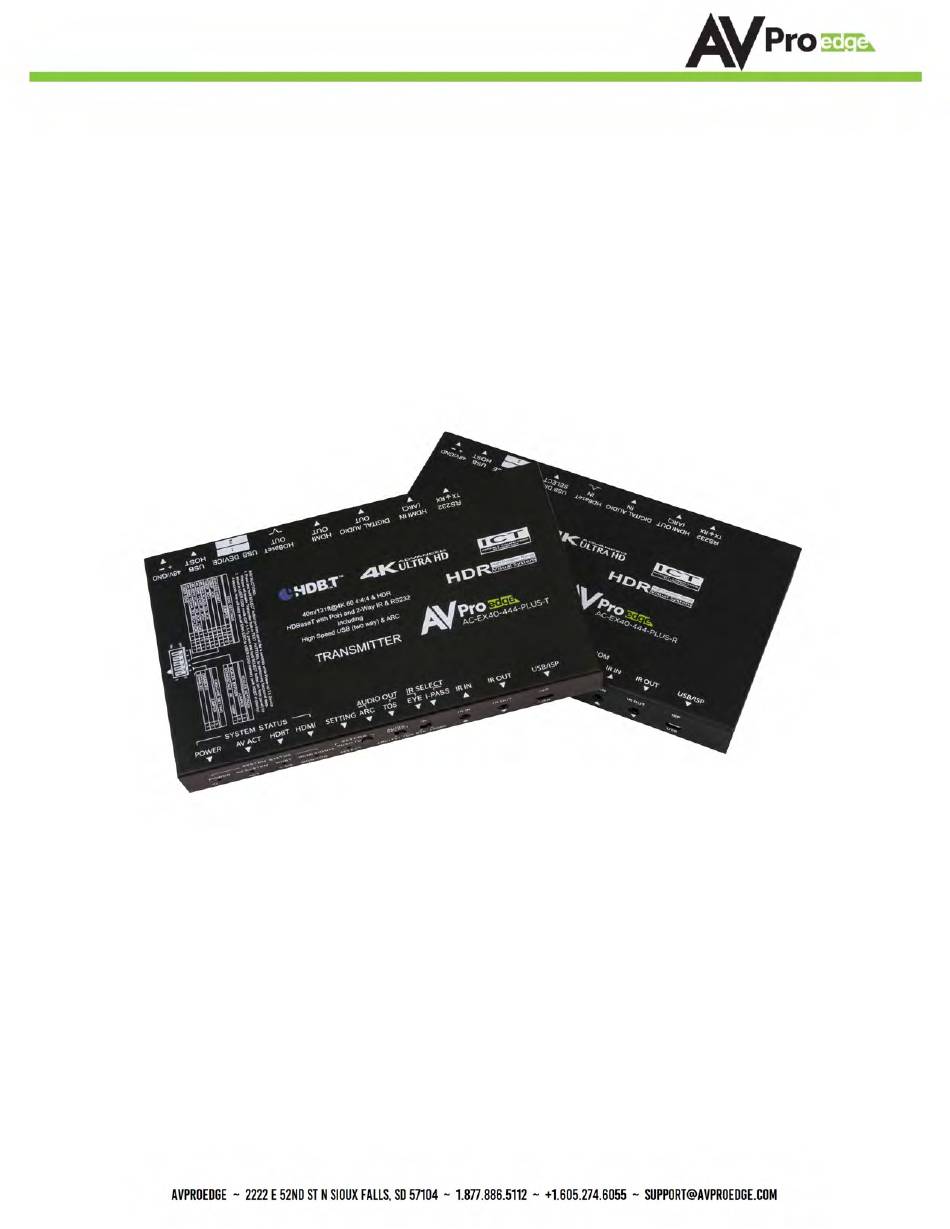

- Page 1 AC-EX40-444-PLUS User Manual AC-EX40-444-PLUS-KIT Ultra Slim 40m (70m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio Extraction, EDID Management, Scaling & Ethernet, USB Selectable Host Page 1...
-
Page 2: Product Overview

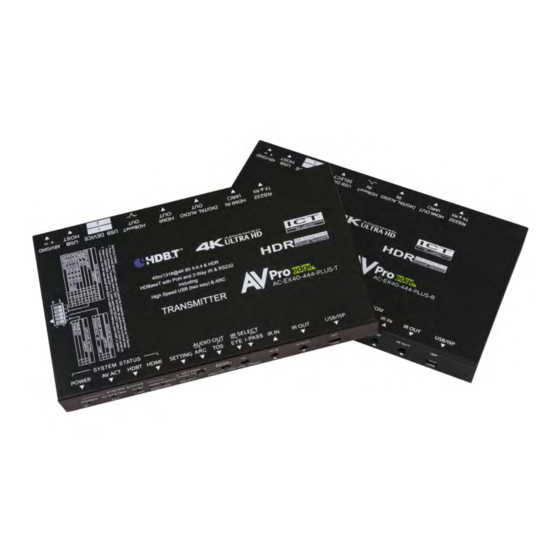

Product Overview Model Numbers: AC-EX40-444-PLUS-T ~ HDBaseT Transmitter w/ Audio Extraction, IR, RS-232, EDID, ARC, Test Patterns and Scaler AC-EX40-444-PLUS-R ~ HDBaseT Receiver w/ IR, RS-232, ARC, Test Patterns Features Whats in the box •... - Page 3 AC-EX40-444-PLUS Page 3...
- Page 4 AC-EX40-444-PLUS Page 4...
- Page 5 1. The source. Plug it directly into the display to be sure it's functioning properly 2. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths 3. Set the EDID to state #1 (See below) 4. Contact AVProEdge if these suggestions do not work Page 5...
- Page 6 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. *Standard RJ45 ends are recommended. Pass through style types can cause interference/crosstalk 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port: (AMBER) This is an indicator showing that the power is present between the Transmitter and Receiver.
- Page 7 AC-EX40-444-PLUS Functions & Setup of the Transmitter: IR Mode Slide Switch: (On Front) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye.
- Page 8 OFF, check the following: 1. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths 2. Try another port on the Display if possible 3. Contact AVProEdge if these suggestions do not work Page 8...
- Page 9 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. a. Standard RJ45 ends are recommended. Pass through style types can cause interference/crosstalk 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port:...
- Page 10 AC-EX40-444-PLUS RS-232 Configuration RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
- Page 11 AC-EX40-444-PLUS RS-232 Sample Application IR Configuration IR can be used in three ways: From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "IR IN" port on the AC-EX40-444 Transmitter to pass IR signals directly to the remote end. NOTE - Be sure the IR MODE Slide Switch is set to "I-PASS"...
- Page 12 IR OUT Emitter (Non-Flashing) IR IN w/ Receiver Eye Audio Extraction on the AC-EX40-444-PLUS-T TOSLINK Port This feature extracts up to 8ch Audio from the source device in order to be run to a separate amplifier or AVR. Both the Transmitter and Receiver have "AUDIO SELECT"...
- Page 13 AC-EX40-444-PLUS ARC - Audio Return Channel Setup The Audio Return Channel (ARC) in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data “upstream” to an A/V receiver or surround audio controller, our extender will continue the upstream audio all the way to the Transmitter.
- Page 14 AC-EX40-444-PLUS USB SELECT Switch on Receiver There are 3 options to select on the Receiver • HOST - Select this if you are plugging the Host Device into the Receiver • AUTO - Default, will automatically detect what port you are using. Issues, try selecting HOST or DEVICE •...
- Page 15 AC-EX40-444-PLUS Page 15...
-
Page 16: Troubleshooting
AC-EX40-444-PLUS Troubleshooting • Verify Power - Pg.5 & 8 o Verify POE Switch is correct - Pg.10 • Verify Connections - Check that all cables are properly connected o TX Indicator Troubleshooting Lights - Pg. 5-6 o RX Indicator Troubleshooting Lights - Pg. 8-9 •... -
Page 17: Maintenance
AC-EX40-444-PLUS Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 18: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 19 AC-EX40-444-PLUS _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 19...
- Page 20 AC-EX40-444-PLUS _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 20...
- Page 21 AC-EX40-444-PLUS Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 21...
