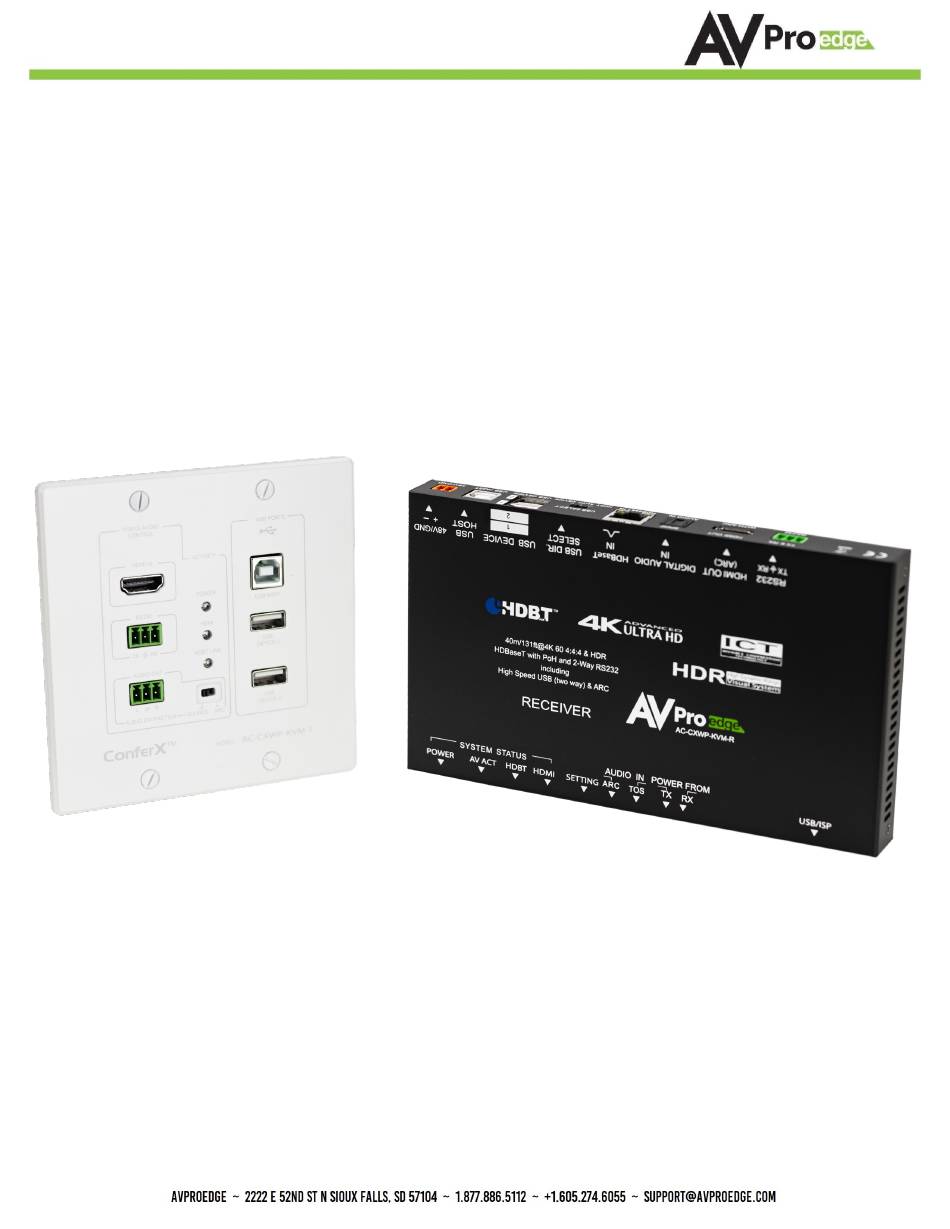

- Page 1 User Manual Dual Gang 40m/131ft@4k 60 4:4:4 & HDR HDBaseT Kit with PoH and Bi-Directional USB AC-CXWP-KVM-KIT...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F E AT U R E S �... -
Page 3: Introduction
Introduction The AC-CXWP-KVM-KIT is a 4K60 4:4:4 18Gbps supported HDBaseT wall plate extender kit over single CAT UTP/STP. This device can take in any HDMI signal and transfer it long distances; simultaneously, it’s able to send a USB 2.0 sig- nal (bi-directionally) through the same cable. -
Page 4: Specifications
Specifications... -
Page 5: Key Benefits
· Down Scaling: The AC-CXWP-KVM-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K to 1080P. Essential when working with projectors or displays that are only 1080p. -
Page 6: Device Overview - Transmitter Front
Device Overview - Transmitter Front Video/Audio Control HDMI IN • For connecting to an HDMI source. RS-232 • 3 pin terminal for device control and RS-232 pass- through. Audio Out • 3 pin terminal for extracting 2Ch audio. Audio Extraction •... -
Page 7: Device Overview - Transmitter Top
USB Ports USB Host • Type B for connecting to Host Device typically a PC USB Device-1 • Type A for connecting USB devices like Mice, Keyboards, etc. Provides 5V USB Device-2 • Second type A for connecting USB devices like Mice, Keyboards, etc. Also supplies 5V power *NOTE: See USB SELECT under Device Overview - Receiver Back on page 10 *NOTE: See page 12-14 for diagram/application examples. -
Page 8: Device Overview - Transmitter Back
Device Overview - Transmitter Back 2 Pin Terminal Block There are two options for power, you can power the Transmitter and the Receiver will be powered over the Category cable. Or you can power the Receiver and power will be provided to the Transmitter over the Category cable. -
Page 9: Device Overview - Receiver Front
Device Overview - Receiver Front System Status LED Indicator Lights Power • Red LED indicates if power is present (on) • Red LED off means no power AV System ACT • Blue LED will flash along with the Amber LED light on the HDBaseT IN port on the back. HDBT Link •... -
Page 10: D E V I C E O V E R V I E W - R E C E I V E R B A C
Device Overview - Receiver Back RS-232 • 3 pin terminal for device control and RS-232 pass-through. HDMI OUT • For connecting to an HDMI Display. SPDIF / AUDIO IN • Connect a Toslink cable to this port and on the front move the AUDIO IN SELECT switch to TOS HDBaseT IN •... -
Page 11: R S - 2 3 2 C O N F I G U R At I O
In order to control via RS-232, follow the wiring information below. Connecting to a DB9 only pins 2, 3, and 5 are used. If your control device does not have a DB9 port, a USB to DB9 adapter may be required. AVProEdge has these cables available (AC-USB-DB9-ADPT). USB Ports... -
Page 12: E X A M P L E A P P L I C At I O N D I A G R A M
Example Application Diagrams... -
Page 14: E X A M P L E A P P L I C At I O N D I A G R A M U S B E X T E N S I O
Example Application Diagram USB Extension... - Page 15 2Ch PCM audio this unit does not down-mix. Verify connected source is set to 2Ch PCM audio. *NOTE: ARC must be enabled on the display/sync, and the output should be set to PCM. Still having issues after troubleshooting, feel free to contact our Tech Support Department. • Email support@avproedge.com • Web page support.avproedge.com • Support Direct +1-605-977-3477 •...
-
Page 16: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. · Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 17: S U P P O R
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as be- low, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 20 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
