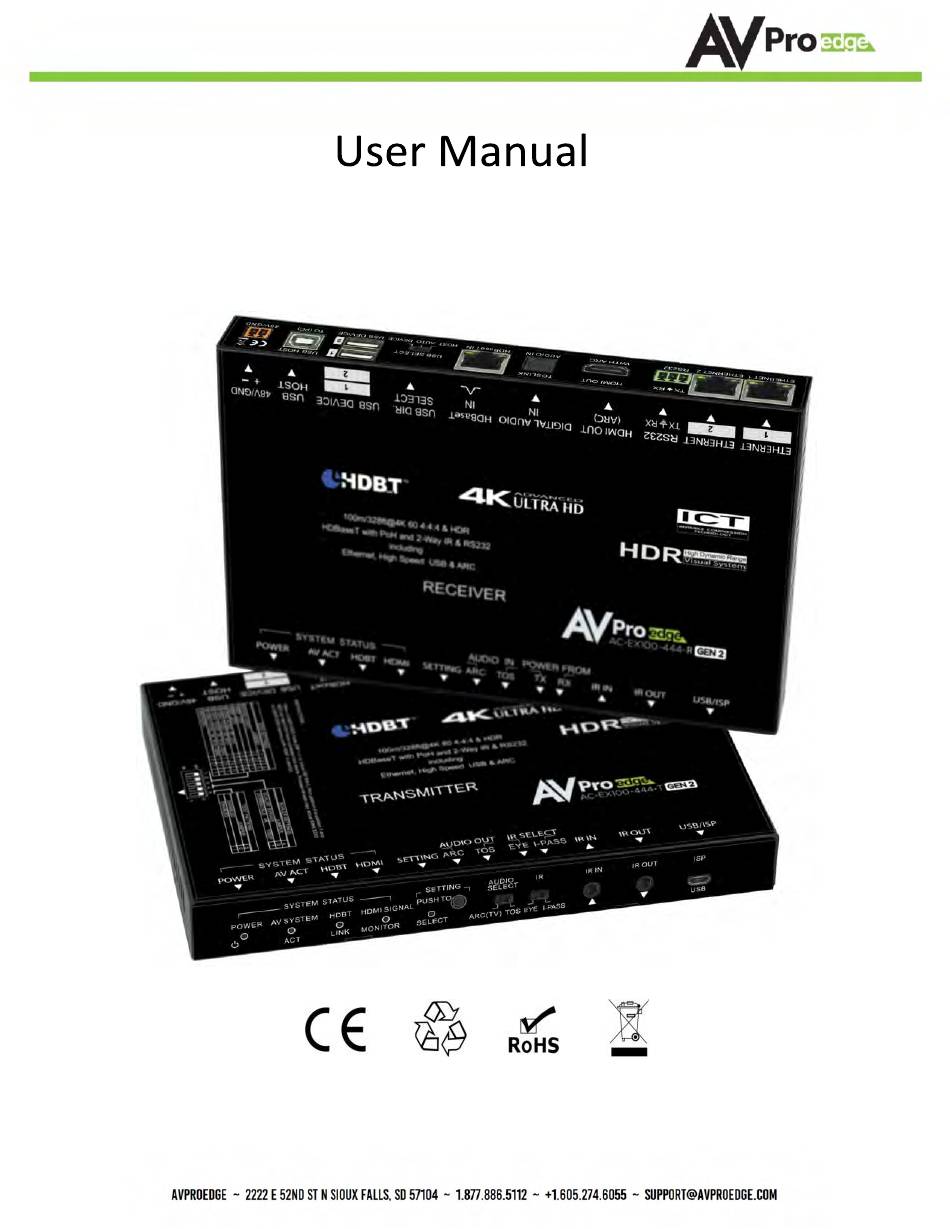

AVProEdge AC-EX100-444-KIT-GEN2 User Manual

Ultra slim 100m (100m hd) 4k60 4:4:4, hdr hdbaset extender audio extraction, edid management, scaling & ethernet, usb selectable host
Hide thumbs Also See for AC-EX100-444-KIT-GEN2:

Advertisement

Quick Links

Download this manual
AC-EX100-444-GEN2
AC-EX100-444-KIT-GEN2
Ultra Slim 100m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio
Extraction, EDID Management, Scaling & Ethernet, USB Selectable Host
A V P r o E d g e
2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5
s u p p o r t @ a v p r o e d g e . c o m
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-EX100-444-KIT-GEN2 and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge AC-EX100-444-KIT-GEN2

Summary of Contents for AVProEdge AC-EX100-444-KIT-GEN2

  • Page 1 AC-EX100-444-GEN2 AC-EX100-444-KIT-GEN2 Ultra Slim 100m (100m HD) 4K60 4:4:4, HDR HDBaseT Extender Audio Extraction, EDID Management, Scaling & Ethernet, USB Selectable Host A V P r o E d g e 2 2 2 2 E 5 2 n d S t N ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e .

  • Page 2: Product Overview

    AC-EX100-444-GEN2 AVPro Edge presents its 18Gbps over copper extender. Using ICT (Invisible Compression Technology) we have achieved what was thought to be impossible. We can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps. Deep Color and HDR Metadata remain intact making the transmission free of artifacts like banding.
  • Page 3 AC-EX100-444-GEN2 Page 3...
  • Page 4 AC-EX100-444-GEN2 Page 4...
  • Page 5 1. The source. Plug it directly into the display to be sure it's functioning properly 2. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths 3. Set the EDID to state #1 (See below) 4. Contact AVProEdge if these suggestions do not work Page 5...
  • Page 6 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. *Standard RJ45 ends are recommended. Pass through style types can cause interference/crosstalk 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port: (AMBER) This is an indicator showing that the power is present between the Transmitter and Receiver.
  • Page 7 AC-EX100-444-GEN2  Functions & Setup of the Transmitter: IR Mode Slide Switch: (On Front) This is used to select a preferred IR Mode - There are two modes: • IR-EYE - The IR Input will be configured to operate with an IR Receiver Eye. •...
  • Page 8 OFF, check the following: 1. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths 2. Try another port on the Display if possible 3. Contact AVProEdge if these suggestions do not work Page 8...
  • Page 9 4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off. a. Standard RJ45 ends are recommended. Pass through style types can cause interference/crosstalk 5. Contact AVProEdge if these suggestions do not work. STATUS- Above RJ45 (HDBT) Port:...
  • Page 10 AC-EX100-444-GEN2 • TX (Default)= You will need to power the TRANSMITTER, the receiver will be powered over the CAT Cable (Default). • RX = You will need to power the RECEIVER, the transmitter will be powered over the CAT Cable from the receiver (This is called "Reverse Power"). AUDIO IN SELECT Slide Switch : (On the front) This is used to select how you want the extracted audio is originated from.
  • Page 11 AC-EX100-444-GEN2 RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly 1. Control System --> Display/Projector (ie, Power On/Off) 2. Display/Projector --> Control System (ie, Display Status, Volume Status etc...) 3.
  • Page 12 AC-EX100-444-GEN2 RS-232 Sample Application ■ IR Configuration ■ IR can be used in three ways: From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "IR IN" port on the AC-EX40-444 Transmitter to pass IR signals directly to the remote end. NOTE - Be sure the IR MODE Slide Switch is set to "I-PASS"...
  • Page 13 AC-EX100-444-GEN2 IR INPUT to AC-EX100-444-GEN2-T (Transmitter) has two options ■ Set to the left, "EYE" Mode to use an IR Receiving Eye Set to the right, "I-PASS" to connect directly to a control system IR OUTPUT (TX & RX) IR INPUT (RX) ■...
  • Page 14 AC-EX100-444-GEN2 ARC - Audio Return Channel Setup  The Audio Return Channel (ARC) in HDMI 1.4 and 2.0 enables a TV, via a single HDMI cable or Toslink, to send audio data “upstream” to an A/V receiver or surround audio controller, our extender will continue the upstream audio all the way to the Transmitter.
  • Page 15 AC-EX100-444-GEN2 Using Ethernet: ■ Ethernet usage is very straight-forward. It is used for driving network communication over the HDbaseT link. This of these ports as a "hub", if you plug one port into a router all the other ports on both the Tx & Rx now have access to the network. Usage Examples: •...
  • Page 16 AC-EX100-444-GEN2  USB SELECT Switch on Receiver There are 3 options to select on the Receiver • HOST - Select this if you are plugging the Host Device into the Receiver • AUTO - Default, will automatically detect what port you are using. Issues, try selecting HOST or DEVICE •...
  • Page 17 AC-EX100-444-GEN2 Page 17...

  • Page 18: Troubleshooting

    USB Issues - Pg. 16 • o Verify the USB SELECT switch is correct • Still having issues, contact us o Support Direct - +1-605-977-3477 o All inquiries - + 1-605-274-6055 o Submit a support request ticket  https://support.avproedge.com/hc/en-us/requests/new Page 18...

  • Page 19: Maintenance

    AC-EX100-444-GEN2 Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 20: Warranty

    If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
