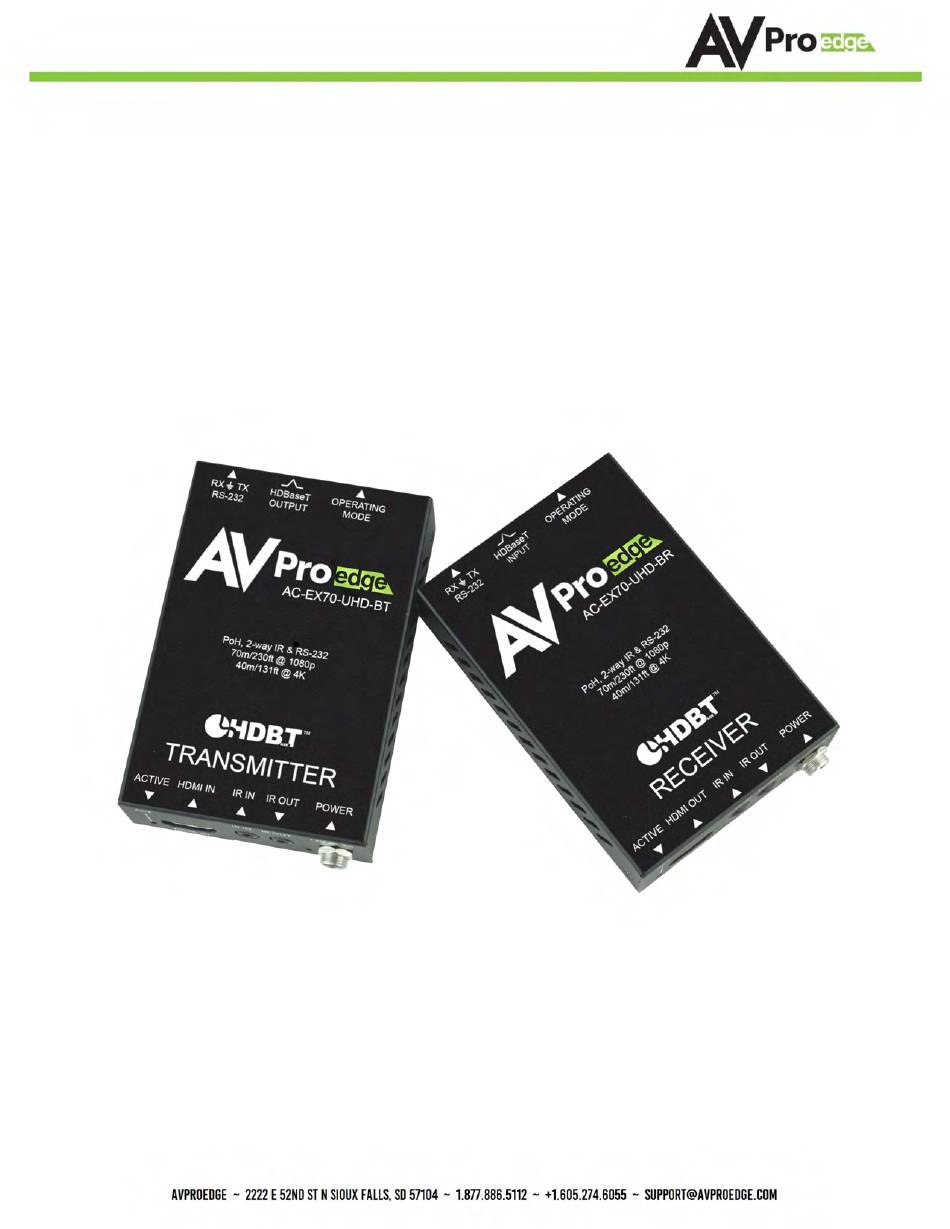

- Page 1 AC-EX70-UHD-BKT USER MANUAL AC-EX70-UHD-BKT 70m (40m 4K) HDBaseT Extender w/ 4K60 4:2:0 support. Bi-Directional PoE, IR and RS232. Page 1...
-
Page 2: Product Overview
AvproEdge presents the quick deployment 4K HDBaseT Extender Set. This set is capable of delivering 4K signals over CAT cable up to 40 meters (131 ft) and Full HD signals up to 70 meters (230 ft). The AC-EX70-UHD-BKT features field critical features including, Bi-Directional PoH (Power Over HDBaseT), Bi-Directional RS232 for control. - Page 3 AC-EX70-UHD-BKT Page 3...
- Page 4 AC-EX70-UHD-BKT Page 4...
- Page 5 4. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths (try 2 meters or longer) 5. Contact AVProEdge if these suggestions do not work LINK - On the back next to th RJ45 (HDBT) Port:...
- Page 6 4. Try a longer HDMI cable. Some HDMI cables do not sync well at shorter lengths (try 2 meters or longer) 5. Contact AVProEdge if these suggestions do not work LINK - On the back next to th RJ45 (HDBT) Port:...
- Page 7 AC-EX70-UHD-BKT RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly used to route control signals in the following way: 1. Control System --> Display/Projector (ie, Power On/Off) 2.
- Page 8 AC-EX70-UHD-BKT Page 8...
- Page 9 AC-EX70-UHD-BKT IR Configuration ■ IR can be used in two ways: 1. From Rack (Using IR-EYE): Plug an IR-Receiver Eye into the "IR IN" of the AC-EX40-444 Transmitter in order to pass infrared signals generated from a device or IR Remote. NOTE - Be sure the IR MODE Slide Switch is set to "IR-EYE"...
- Page 10 AC-EX70-UHD-BKT IR Connections to AC-EX70-UHD-BT (Transmitter) ■ IR INPUT IR OUTPUT (IR (RECEIVER EYE) EMITTER) IR Connections to AC-EX70-UHD-BR (Receiver) ■ IR INPUT IR OUTPUT (IR (RECEIVER EYE) EMITTER) *NOTE: For best results, only use the provided IR EYE's and Emitters...
-
Page 11: Troubleshooting
AC-EX70-UHD-BKT Troubleshooting ■ • Verify Power - Pg. 5 & 6 • Verify Connections - Check that all cables are properly connected o TX Indicator Troubleshooting Lights - Pg. 5 o RX Indicator Troubleshooting Lights - Pg.6 • IR Issues - Verify correct connections - P. 9-10... -
Page 12: Maintenance
AC-EX70-UHD-BKT Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 13: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 14 AC-EX70-UHD-BKT _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 14...
- Page 15 AC-EX70-UHD-BKT _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ Page 15...
- Page 16 AC-EX70-UHD-BKT Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 16...
