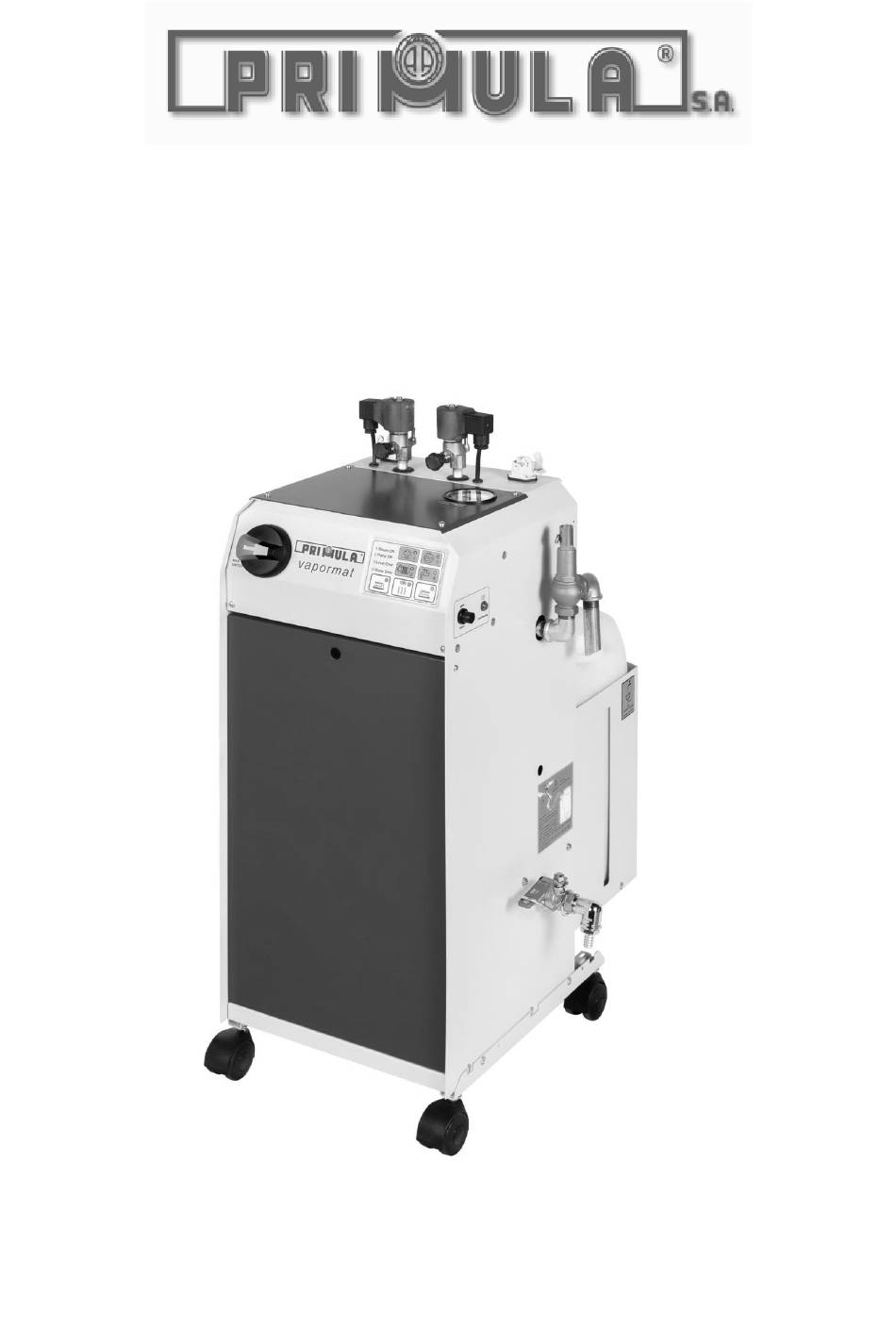

- Page 1 IRONING PRESSING MACHINERIES - FUSING PRESSES Instruction Manual Vapormat...
-
Page 2: Table Of Contents
Instruction Manual VARORMAT Table of contents 1.ATTENTION!!! ............................... 2.Technical Details……………………………………………………………………………………………………..4 2.1 Identification Data……………………………………………………………………………………………….4 2.2 Use of the instruction Manual ……………………………………………………………………………..4 2.3 Technical Description …………………………………………………………………………………………..5 2.4 Technical Characteristics………………………………………………………………………………………5 3. General rules and Warnings………………………………………………………………………………..…6 3.1 General rules of using the steam generator……………….…………………………………………6 3.2 Warning marks placed on the steam generator……………………………………………………6 4. -
Page 3: Attention
The customer by purchasing this product declares that he is fully aware, and accepts everything mentioned in this operating manual. Primula SA assumes neither responsibility for any errors herein, nor for incidental nor for resulting damage in connection with the performance or use of this operating manual. -
Page 4: Technical Details
2. Technical Details 2.1 Identification Data The steam generator "VAPORMAT" is a machine of high advanced technology with many advantages, unique in its kind. It is manufactured according to International and European safety standards by a company with experience ,since 1969, in this sector. Congratulations... -
Page 5: Technical Description
Double steam outlet for 2 Irons which keeps the steam dry Water inlet through a copper tube Ø12mm External Safety valve 20L external water tank Wheels for easy transport and service Technical Characteristics Model Vapormat/1-2,5 Vapormat/1-4 Vapormat/2-4 Vapormat/2-6 Vapormat/3-6 Heating capacity 2,5KW... -
Page 6: General Rules And Warnings
It is strictly forbidden to proceed any modification to the technical specifications (according to CE directives) of the machine (electrical or mechanical). Primula has not the responsibility in case of any intervation against the initial function of the machine. -
Page 7: Instrutions For Installation
Instruction Manual VARORMAT The operator of the system has the obligation to inform himself regarding the dangers which may occur during usage, so that he/she can avoid them or minimize their occurrence as best as he/she is able to. 4.Instrutions for installation 4.1 Installation The machine is ready to work. -
Page 8: Operating Instructions
Adjust the steam consumption by the adjustor knob No 37, according to the fabric requirements. You can start ironing! In case of purchasing the Vapormat/3-6, turn on the switch of AD/5 cell for supplying steam to the third iron. -
Page 9: Instructions For Turning Off The Steam Generator
Instruction Manual VARORMAT CAUTION ! The first time you press the iron's microswitch to flow steam you may have a steam liqui- dation,due to the cold condition of the iron's steam hose.So please press 2-3 times the micro -switch away from the working surface until only clean dry steam flows out. -
Page 10: Troubleshooting
Instruction Manual VARORMAT 7.Troubleshooting 7.1 The pump does not run: Check the red lamp (LED) responding to the pump, on the PC card typ.1098 or 0599, which is next to the black micro relay of 30A. If the red lamp is on check the fuse 6 Amber responding to the pump on the PC card typ 1098 or 0599. -
Page 11: The Pump Is Ordered To Feed Water In Very Short Periods & Steam Draining Is Appeared In The Feeder Vessel No 41
Instruction Manual VARORMAT 7.6 The pump is ordered to feed water in very short periods & steam draining is appeared in the feeder vessel No 41 Check the one-way valve No 16:Clean or replace it, paying attention on putting it back correctly. -
Page 12: Control Keyboard Indications
Instruction Manual VARORMAT 8. Control keyboard indications Symbol Indication Message What to do 1-"steam ON" The green light is on. The procedure of water heating starts. When the green light is off (in 15- 18’ from 10 C) steam is ready. -
Page 13: Images Of The Spare Parts
Instruction Manual VARORMAT Images of spare parts... -
Page 14: List Of Spare Parts
Instruction Manual VARORMAT List of spare parts Pos. Articel nr. Designation 193-03-001 Boiler 303-06-002-4 Water pump 0,5HP Apm37 303-06-002 Water pump 0,5HP Pedrolo 303-03-003-4 Heating element 2500W/VR 230V 303-03-003-1 Heating element 4000W/VR 230V 303-03-003-2 Heating element 4000W/VR 400V 303-03-003-3 Heating element 6000W/VR 400V 193-03-004 Seal heating flange 303-06-025... - Page 15 Instruction Manual VARORMAT 308-00-003 Valve’s plug 303-03-041-4 Feedwater tank 20lt new model 303-03-041 Feedwater tank 25lt 193-03-042-1 Metal. seath of Water feed tank's 20lt VR/ECO 303-03-043 Axel of main switch 3X25 303-06-013 T 1/4" Χ 1/4" Χ 1/4" 303-03-045 Clamp 10-16 193-03-046 Electrode No 1 193-03-047...
-
Page 16: Wiring Diagram
Instruction Manual VARORMAT Wiring diagram... -
Page 17: List Of Spare Parts Of Wiring Diagram
Water pump 0,5HP/ Water pump 0,7HP Water level electrode (max) Water level electrode (min) Heating protection electrode Electronic circuit card -all functions control ,typ.VAPORMAT 1098 Keyboard electronic card. Heat stop thermostat Timer (0-24 hours) for the work beginning time adjustment Cabel of power supply 3x2.5mm... -
Page 18: Technical Assistant
Tel.: +30 23940 71 215 Fax : +30 23940 71 438 E-mail : info@primula.gr All specifications have been made to the best of our knowledge. Primula S.A preserves the right to make changes to the system and its parts without prior notice.
