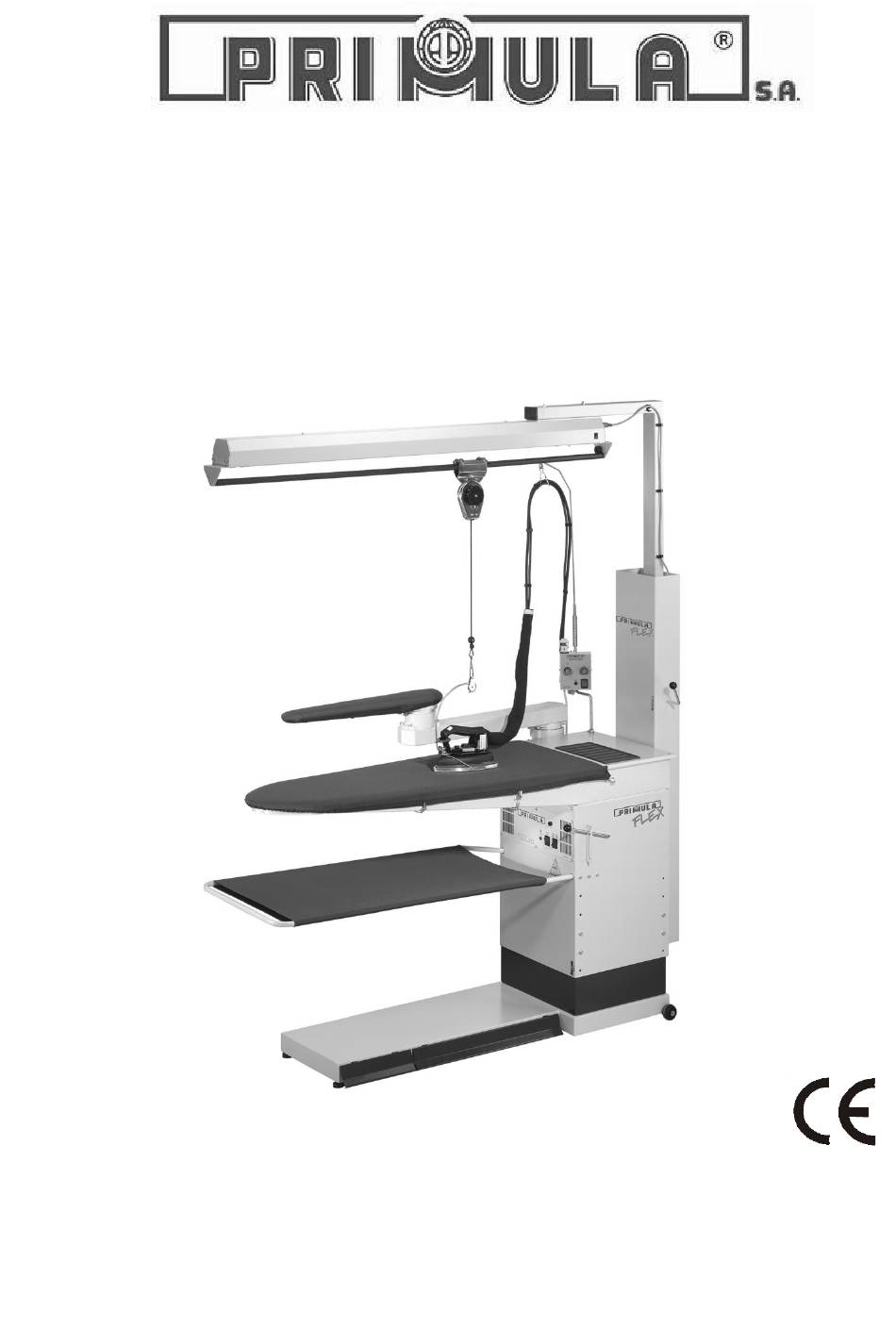

- Page 1 IRONING PRESSING MACHINERIES - FUSING PRESSES Instruction Manual FLEX DOB...
-
Page 2: Table Of Contents
Instruction Manual Table of Contents 1. ATTENTION!!!..........................3 2. Technical Details…………………………………………………………………………………………………………..4 2.1 Identification Data…..………………………………………………………………………………………………………4 2.2. Use of the instruction Manual…………………………………………………………………………………………4 2.3 Technical Characteristics………………………………………………………………………………………………….5 2.4 Technical Description……………………………………………………………………………………………………….5 3. General rules and Warnings………………………………………………………………………………………………5 3.1. General rules of using the Ironing Table………………………………………………………………………….5 3.2. Warning marks placed on the Ironing table.………………………………………….……………………….6 4. -
Page 3: Attention
The customer by purchasing this product declares that he is fully aware, and accepts everything mentioned in this operating manual. Primula SA assumes neither responsibility for any errors herein, nor for incidental nor for resulting damage in connection with the performance or use of this operating manual. -
Page 4: Technical Details
2. Technical Details 2.1 Identification Data The Ironing Table “FLEX DOB” is a machine of high advanced technology with many advantages, unique in its kind. It is manufactured according to International and European safety standards by a company with experience, since 1969, in this sector. Congratulations... -
Page 5: Technical Characteristics
FLEX DOB1242 S+B with automatic suction/blowing adjustment through two pedals. FLEX DOB1242 M S+B blowing with manual suction/blowing adjustment through a lever. 2.4 Technical Characteristics Model FLEX DOB FLEX DOB S+B FLEX DOB M S+B Working surface 120X42cm(standard) 120X42cm(standard) 120X42cm(standard) Height adjustment... -
Page 6: Warning Marks Placed On The Ironing Table
Instruction Manual It is strictly forbidden to do any modification to the technical specifications of the machine (electrical or mechanical) by third persons. Please contact your dealer or the manufacturer for any malfunction or further information requests. 3.2 Warning marks placed on the Ironing Table Each Ironing Table has the following attention marking: The operator of the system has the obligation to be informed regarding the dangers which may occur during usage, so that he/she can avoid them or minimize their occurrence as best... - Page 7 Instruction Manual Picture 2: Assembly 1. Put base No 01 in the inverted position. Screw the base No 02 to the base of the table No 04 to the base Nο 02 after you have connected first the wires to the terminal block No 03. 2.
-
Page 8: Instructions For Installation
Instruction Manual 5. Instructions for Installation For the instructions mentioned in the current section please see the above drawing (Picture 5.1 Installation Put the Ironing Table in the designated area of your choice and align the machine by increasing/decreasing the height of its feet No 14. Make sure that the ironing Table is stable and the ironing surface flat. -
Page 9: Maintenance
Instruction Manual (approximately 5cm). After finishing ironing unhook the steam iron from the balancer and put it on the iron rest mat. * * In case your table disposes a blowing system of air: Adjust the volume of the blowing air with the lever according to the requirements of the fabric (weight, quality , etc.) from the knob which is placed in the main body of the machine ... -
Page 10: The Machine Operates Loudly
Check the impeller to be sure, that there is no dust which could cause the vibration. 8.5 The blowing of air does not function (If you have purchased the FLEX DOB S+B) Check if the blowing’s bouton pedal No 09 is damaged. -
Page 11: Drawing Of The Spare Parts
Instruction Manual Drawing of spare parts... -
Page 12: List Of Spare Parts
Fan wheel Ø180 192-22-004 Metallic flange of metallic shell vacuum 192-21-005 Base of table 1242 192-26-022 Suction pedal 1242 ( for FLEX DOB) 192-21-006 Blowing pedal 1242 (only for FLEX DOD 1242 S+B) 192-21-007 Suction pedal 1242 302-22-008 Terminal block for the connection of the button pedal... - Page 13 Indicator light overheating motor 308-00-006 Switch ON-OFF 16A 302-00-017 Double switch ON-OFF 302-22-078 Cover of micro switch 192-22-065 Metallic base of electronic circuit 192-22-047 Bearing of arm 302-21-081 Cover for FLEX DOB tray 302-22-004 Vacuum 0.75Hp 400V complete 302-22-004-1 Vacuum 0.75Hp 230V complete...
-
Page 14: Wiring Diagram Of Motor
Instruction Manual Wiring Diagram of Motor... -
Page 15: Wiring Diagram Of The Machine
Instruction Manual Wiring Diagram of the machine... -
Page 16: List Of Spare Parts Of Wiring Diagram Of The Machine
Instruction Manual List of Spare Parts of Wiring Diagram of the machine Symbol Articel Description 302-22-018 Electronic circuit 302-03-006 Flap motor 302-01-071 Brass terminal block of grounding 302-22-020 4-poles socket of working surface 302-02-009 Socket 302-27-004 Socket for buck with cable 302-22-072 Power supply terminal block 302-22-073... -
Page 17: Technical Assistant
E-mail : info@primula.gr All specifications have been made to the best of our knowledge. Primula S.A preserves the right to make changes to the system and its parts without prior notice. 23940 71 438 E-mail : info@primuthe best of our knoTECHNICAL ASSISTANCE...
