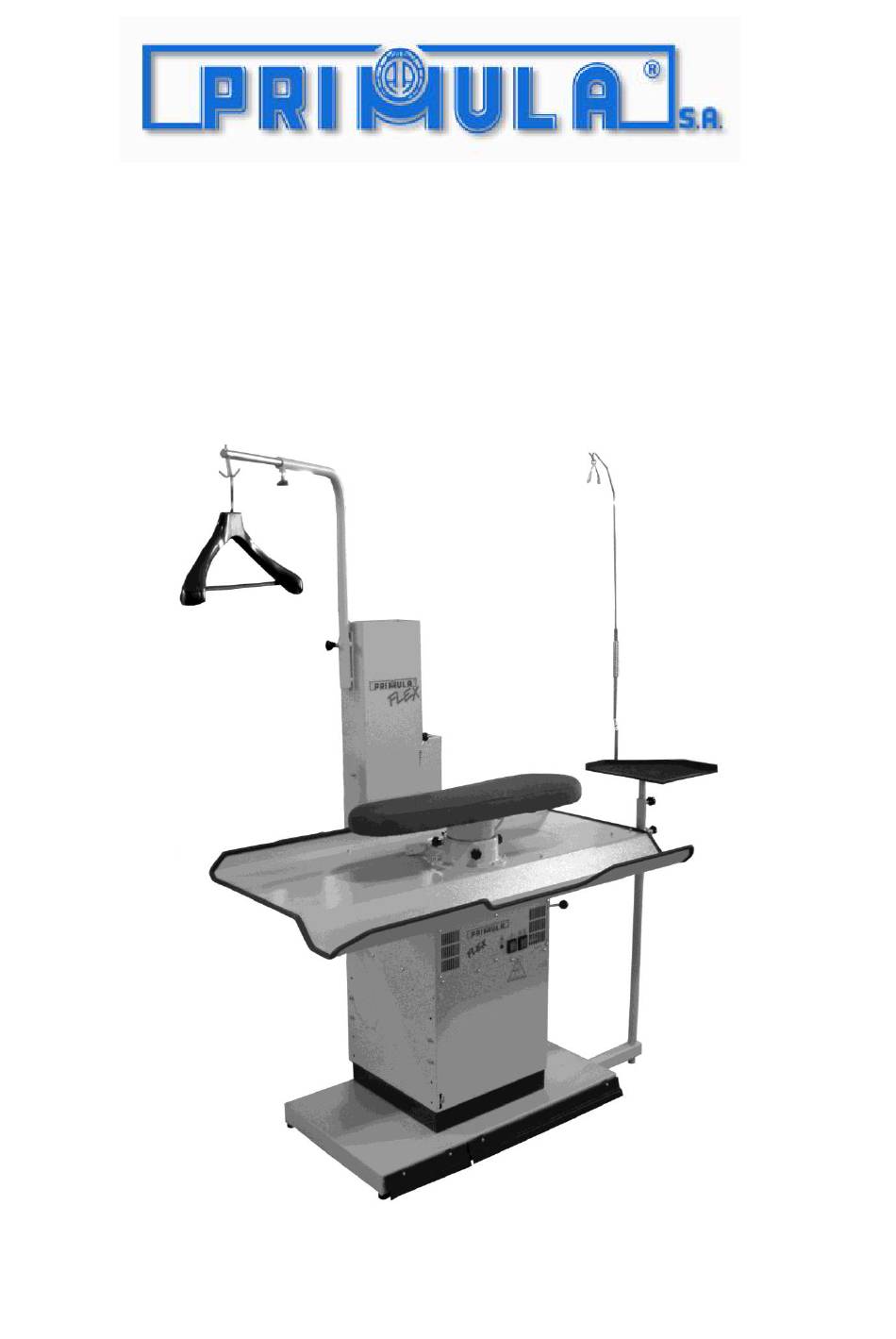

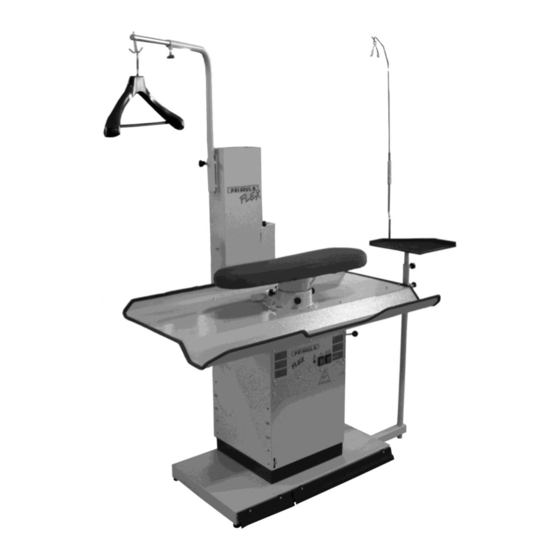

  • Page 1 IRONING PRESSING MACHINERIES – FUSING PRESSES INSTRUCTION MANUAL FLEX FS S+B...

  • Page 3: Installation

    A FEW WORDS FROM THE MANUFACTURER The ironing table “FLEX FS”is a machine of high advanced technology, unique in its kind. It is manufactured according to the International and European technical specifications and safety standards from a company with experience since 1969 in its sector. Congratulations for your choice! INSTALLATION Put the table in the required place and adjust the little foot Νο...

  • Page 4: Maintenance

    06 07 08 05 OPERATING INSTRUCTIONS  Turn on the main switch No. 06  Switch the thermostat No. 04 to temperature 110°C during the winter and to 90°C during the summer.  Whenever you want to use the suction just press the left pedal No 22. ...

  • Page 5: Troubleshooting

    TROUBLESHOOTING The vacuum does not function properly - Check if there is power supply - Check if the power feeding cable is for some reason cut off - Check the fuse 12Α which is inside the fuse case No 05 - Check if the suction’s button pedal No 9 is faulty - Check if motor No 01 is for some reason damaged Νο...
  • Page 6 PRIMULA FLEX FS SPARE PARTS...
  • Page 7 Spare parts list FLEX FS Νο CODE DESCRIPTION 302-22-001 Electric Motor 0,75ΗΡ/400V/50HZ - 3 N Electric Motor 0,75ΗΡ/230V/50ΗΖ - 1 Ν 302-22-001-1 Electric Motor 0,75ΗΡ/220V/60ΗΖ - 1 Ν 302-22-001-2 Electric Motor 0,75ΗΡ/110V/60HZ –1 N 302-22-001-3 302-22-002 Metallic cup Fan wheel Ø180 302-00-003 302-22-004 Vacuum complete...
  • Page 8 Νο CODE DESCRIPTION 302-22-038-1 Vacufix layer 1365 302-22-038-2 Felt molletone 1365 302-22-039 Cover Fabric of board blue TPF-POL Safety thermostat 145ºC 302-01-010 Corner’s tamper 192-22-041 Swivel arm’s corner 192-22-042 Swivel arm’s bronze gasket 192-22-043 192-22-046 Bearing of swivel arm Swivel arm’s bronze gasket 192-22-043 192-22-044 Female bearing of arm...
  • Page 10 ELECTRICALL CIRCUIT Symbol Articel Description 302-22-018 Electronic circuit 302-03-006 Flap Motor 12V/DC 302-22-071 Brass terminal block of grounding 302-22-020 4-poles socket of working surface 302-03-029 Socket 302-22-020 4-poles socket of buck 302-22-072 Power supply terminal block 302-22-073 Flap motor terminal block 192-22-008 Button pedal terminal block 302-22-022 Cable of power supply 3Χ1.5mm with plug...
  • Page 11 MONO FASE 230V 50Hz / 110V 60Hz LINE TRIFASE MOTORE MONOFASE 400V 3 N 50 Hz LINE FUSE MOTOR 3FASE 400V 3 N 50Hz LINE PRIMULA WARNING DIAGRAM FUSE FLEX FL1365 FLEX DOB 1242...

  • Page 12: Technical Assistance

    For any advice about the operation of the machine or the spare parts, please contact our agents in your territory ---------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------- ------------------------------------------- or directly us in the below address: 14 km. Thessaloniki-Kilkis (Liti) Τel: 2394071245 Fax: 2394071438 E-mail: info@primula.gr http: www.primula.gr Specifications may be subject to change without any prior notice!
