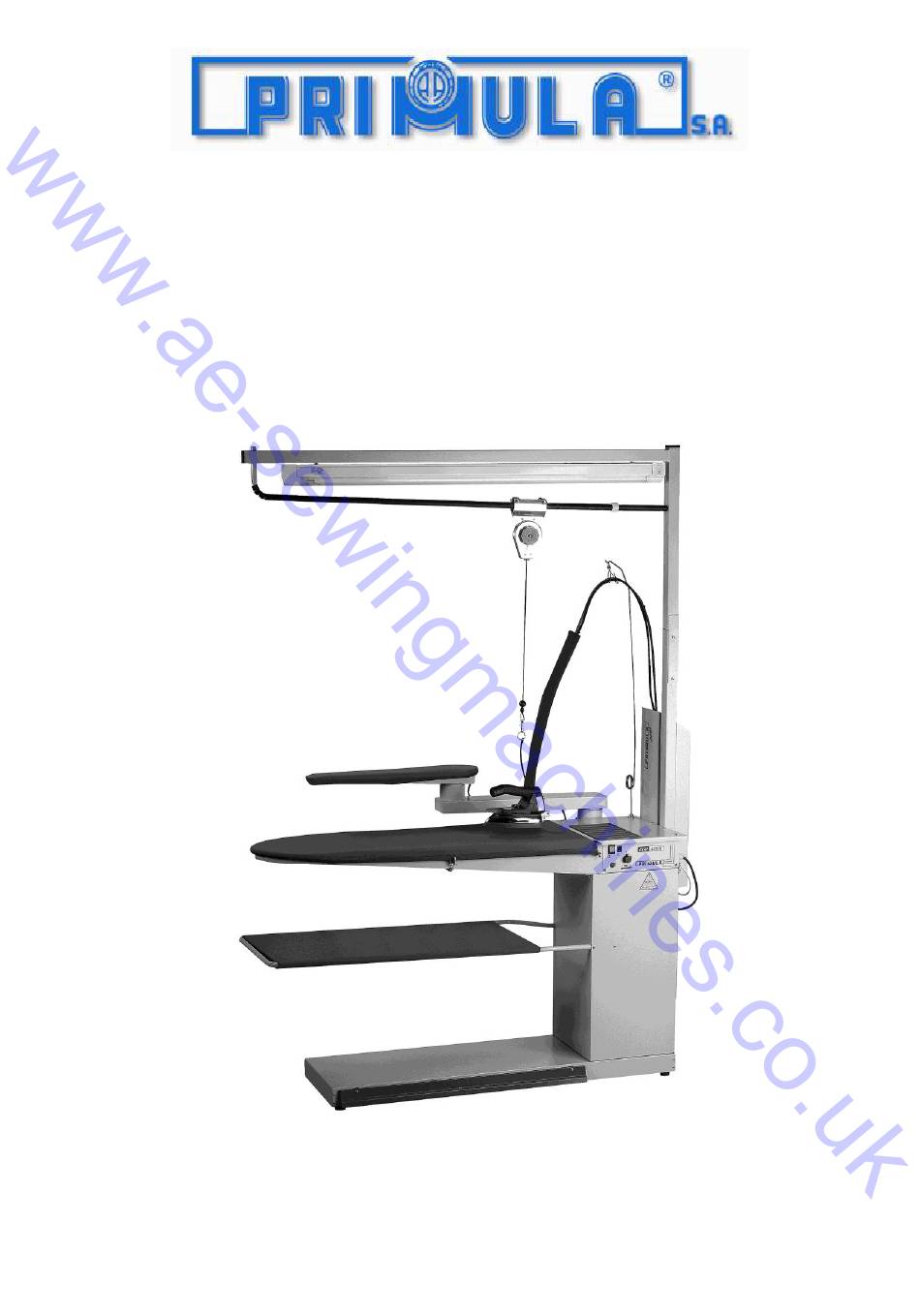

- Page 1 IRONING PRESSING MACHINERIES - FUSING PRESSES Operating Manual ECO DOB 3711 & ECO DOB 3711 E...
- Page 3 The customer by purchasing this product declares he is fully aware and accepts everything mentioned in this operating manual. Primula SA assumes no responsibility for any errors herein, nor for incidental or resulting damage in connection with the performance or use of this operating manual.
- Page 4 10. It is strictly forbidden to remove any protective device. 11. It is strictly prohibited to intervene in the control units of the Ironing Table. Primula S.A preserves the right to make changes to the Ironing Table and its parts without prior notice.
-
Page 5: Electrical Connection
Ironing table and the electrical diagram on pages 12 for the ECO DOB 3711 E, and page 13 for the ECO DOB 3711. Connect the plug of the power feeding cable to a proper grounded socket plug 230V, 16 Amber. - Page 6 OPERATING INSTRUCTION ECO DOB 3711 Switch on the main switch (nr.1) Switch on the thermostat knob (nr.3) at a temperature of 110°C during the winter and at 90°C during the summer. Whenever you want to use suction/vacuum, just press the food pedal with your foot.
- Page 7 OPERATING INSTRUCTION ECO DOB 3711 E Switch on the main switch (nr.1) Switch the thermostat knob (nr 2) in its MAX position during the winter and in its MIN position during the summer. The red led lamp (nr 3), will indicate when the heating is on.
-
Page 8: Maintenance
MAINTENANCE Make sure that the covers of the ironing table and its buck(s) remain clean. Wash the blue polyester fabric and the blue foam underneath, once a week in the washing machine (30-40 In case you use felt molletone instead of blue foam, do not put it in the washing machine, but wash by hand. -
Page 9: Technical Assistance
Thessaloniki – Kilkis, 57200 Liti, Thessaloniki, Greece Tel.: +30 23940 71 215 Fax : +30 23940 71 438 E-mail : info@primula.gr All specifications have been made to the best of our knowledge. Specifications may be subject to change without any prior notice. - Page 10 Spare parts list for ECO DOB 3711 & ECO DOB 3711 E...
- Page 11 ECO DOB 3711 & ECO DOB 3711 E- Spare parts list Article nr. Description 302-26-001 Motor 0,50HP 230V Ιmpeller 160 302-26-002 192-26-003 Metallic shell 302-26-004 Thermostat’s knob 306-11-045 Thermostat’s knob only for Eco DOB E 302-26-005 Power feeding cable with plug 3X1,5...
- Page 12 Wiring Diagram ECO DOB 3711 E Symbol code Description 302-00-006 Main switch 16A 302-22-054 Buck’s switch ON-OFF 302-26-005 Power feeding cable with plug 3X1,5 302-26-026 Vacuum button pedal MV45 302-04-045 3-poles plug for form connection 302-01-010 Safety thermostat 145°C 302-26-001 Motor 0,50HP 230V...
