Communication Ports

The RUGGEDCOM RS940GF can be equipped with various types of communication
ports to enhance its abilities and performance. To determine which ports are
equipped on the device, refer to the factory data file available through RUGGEDCOM
RUGGEDCOM RS940GF . For more information on how to access the factory data file,
refer to the RUGGEDCOM RUGGEDCOM RS940GF User Guide for the RUGGEDCOM
RS940GF.

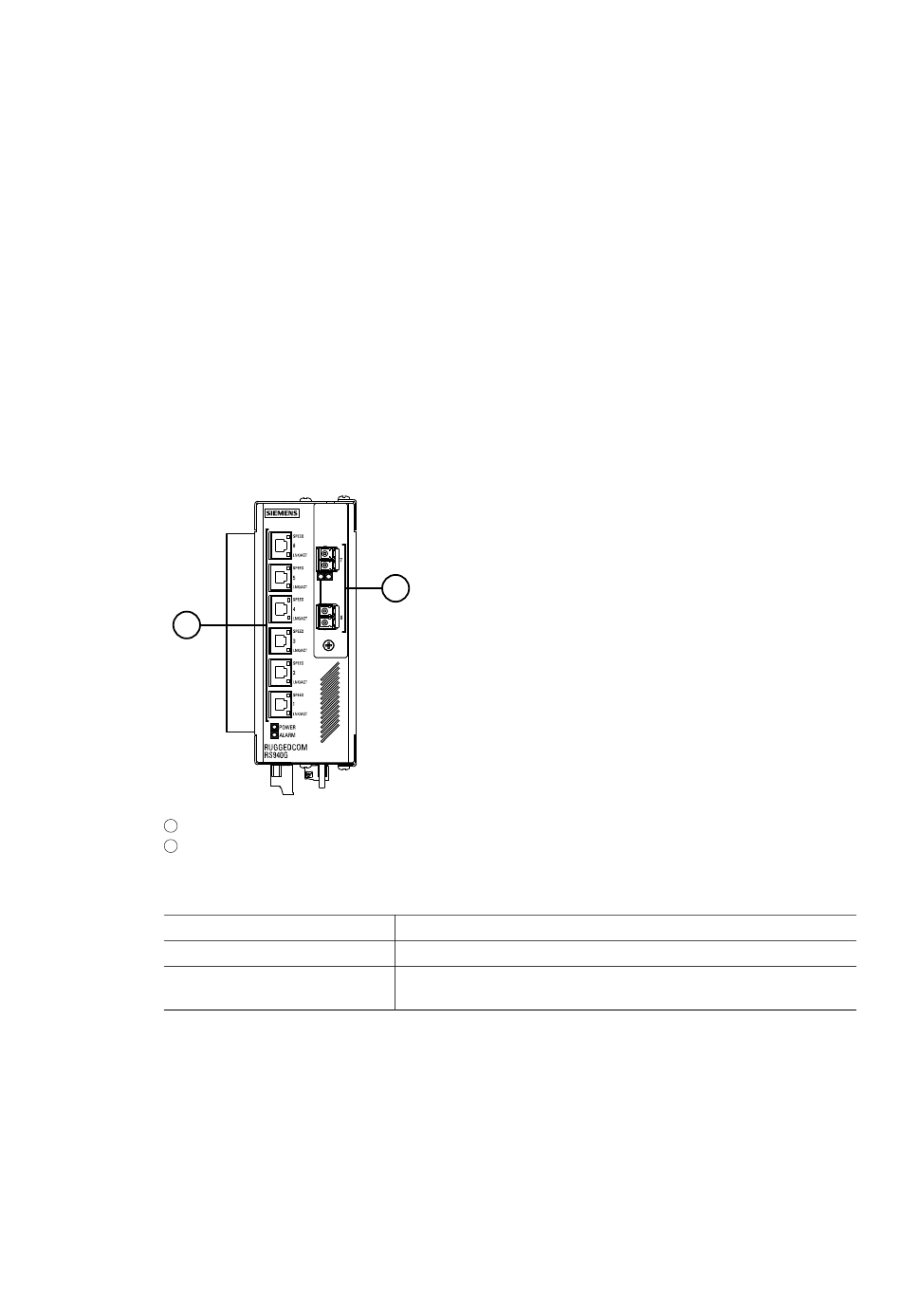

Each communication port type has a specific place in the RUGGEDCOM RS940GF
chassis.
1
1
2
Figure 4.1
4.1

Copper Ethernet Ports

The RUGGEDCOM RS940GF supports several 10/100/1000Base-TX Ethernet ports
that allow connection to standard Category 5 (CAT-5) unshielded twisted-pair (UTP)
cables with RJ45 male connectors. The RJ45 connectors are directly connected to
RUGGEDCOM RS940GF
Installation Manual, 01/2021, C79000-G8976-1356-04
Ports 1 to 6
Ports 7 to 8
Port Assignment
Port
1 to 6
7 to 8
2
Copper Gigabit Ethernet Ports (10/100/1000Base-TX)
Fixed, SFP or GBIC Gigabit Ethernet Ports (1000Base-SX or
1000Base-LX)
Type
