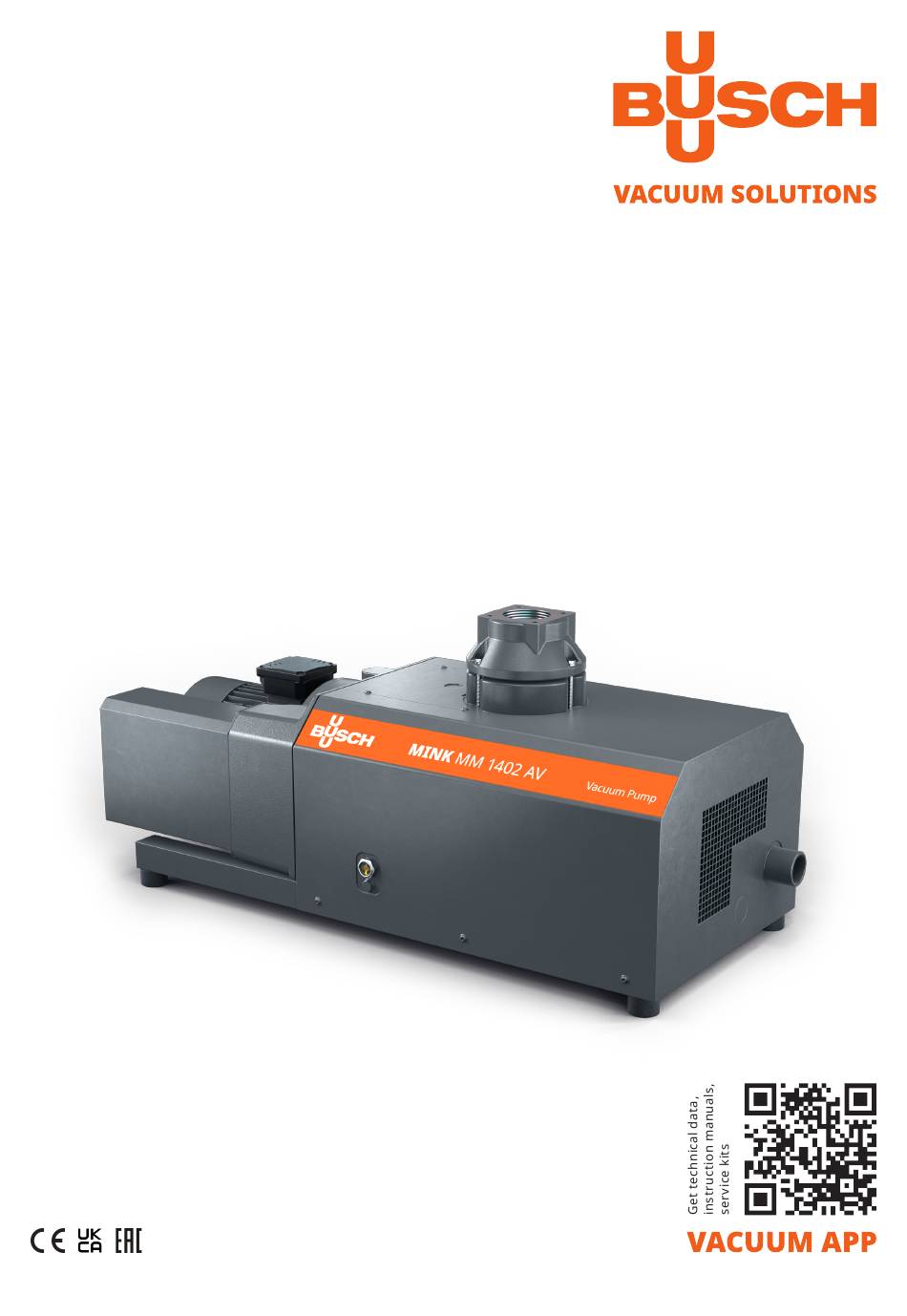

- Page 1 Instruction Manual MINK Claw Vacuum Pumps MM 1402 AV MM 1502 AV 0870156906/B0004_en / Original instructions / Modifications reserved 13/12/2021...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Operating Principle ......................5 2.2 Application........................5 2.3 Design Options ........................ 5 2.3.1 Gas Tight Version ....................6 2.3.2 Aqua Version......................6 2.4 Start Controls ........................6 2.5 Optional Accessories ...................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description

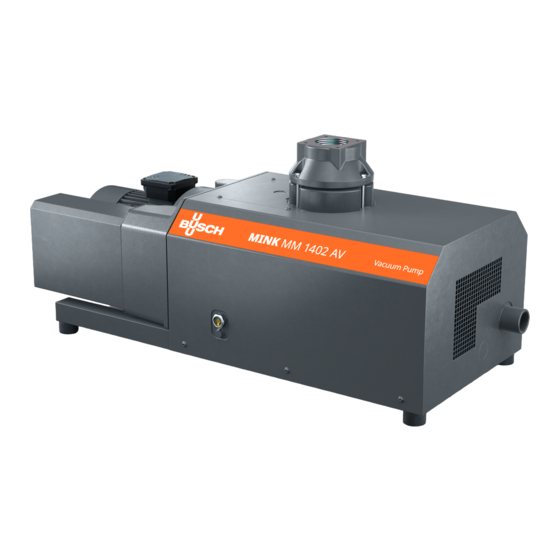

2 | Product Description Product Description Gas tight version Aqua version Suction connection Oil drain plug Discharge connection Cooling air inlet Oil sight glass Cooling air outlet Nameplate Eye bolt Condensate drain (optional) Motor terminal box Non-return valve (integrated) Pressure relief line Directional arrow NOTE Technical term. -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is capable of maintaining ultimate pressure, see Technical Data [► 24]. -
Page 6: Gas Tight Version
2 | Product Description 2.3.1 Gas Tight Version WARNING Media potentially dangerous. Risk of poisoning! Risk of infection! • Wear appropriate personal protective equipment in case of high concentration of the medium in the ambient atmosphere of the machine. The gas tight version is a design option for applications where the process gas remains in the machine and does not escape to the environment. -
Page 7: Optional Accessories
Product Description | 2 2.5 Optional Accessories 2.5.1 Inlet Filter The inlet filter protects the machine against dust and other solids in the process gas. The inlet filter is available with a paper or polyester cartridge. 2.5.2 Vacuum Relief Valve The ultimate pressure is limited by a vacuum relief valve. -
Page 8: Transport
3 | Transport Transport WARNING Suspended load. Risk of severe injury! • Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! • Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. -
Page 9: Installation
~1 m ~1 m ~1 m Other values may apply after Busch approval • Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [► 24]. • Make sure that the environmental conditions comply with the protection class of the motor and the electrical instruments. -
Page 10: Connecting Lines / Pipes
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 11: Filling Oil
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 24] and Oil [► 24]. 4 mm hex key Check oil level The oil level should stay constant over the lifetime of the oil. -
Page 12: Electrical Connection
• Busch recommends installing a D-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. - Page 13 Installation | 5 Delta connection (low voltage): Star connection (high voltage): Double star connection, multi-voltage Star connection, multi-voltage motor motor with 9 pins (low voltage): with 9 pins (high voltage): Double star connection, multi-voltage Star connection, multi-voltage motor motor with 12 pins (low voltage): with 12 pins (high voltage): Delta connection, multi-voltage motor with 12 pins (middle voltage):...
-
Page 14: Commissioning
The Aqua version is a design option for conveying condensable vapours (water). Water vapour within the gas flow is tolerated within certain limits. The conveyance of other vapours shall be agreed upon with Busch. If condensable vapours are to be conveyed: Before process: •... -
Page 15: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. • Shut down the machine and lock against inadvertent start up. • Vent the connected lines to atmospheric pressure. -
Page 16: Maintenance Schedule
5000 operating hours. Other oils may re- duce the change interval. Every 6 years • Have a major overhaul on the machine (contact Busch). 7.2 Oil Level Inspection • Shut down the machine. • When the machine is stopped, wait 1 minute before checking the oil level. -
Page 17: Cleaning From Dust And Dirt
Maintenance | 7 7.3 Cleaning from Dust and Dirt 4 mm hex key Clean the ventilation grilles, cooling fins and inlet screen (IS) Instruction Manual MINK MM 1402-1502 AV_EN_en 17 / 28... -
Page 18: Oil Change
Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. Cleaning cloth Drain pan For oil type and oil capacity see Technical Data [► 24] and Oil [► 24]. -
Page 19: Pressure Relief Lines Maintenance (Gas Tight Version Only)
Maintenance | 7 7.5 Pressure Relief Lines Maintenance (Gas Tight Version Only) WARNING Media potentially dangerous. Risk of poisoning! Risk of infection! • Wear appropriate personal protective equipment in case of high concentration of the medium in the ambient atmosphere of the machine. •... - Page 20 Risk of damage to the machine! • Adjust the pressurised air to 0.2 bar(g) by means of a pressure regulator. In case of clogged pressure relief lines: • Remove the clogging or have the machine repaired (contact Busch). Remove the upper cover Unscrew plugs...
-
Page 21: Overhaul
• Decontaminate the machine as much as possible and state the contamination sta- tus in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 22: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no. - Page 23 • Replace the inlet filter car- tional) is partially clogged. tridge. Internal parts are worn or • Repair the machine (con- damaged. tact Busch). The machine runs very noisily. Worn coupling (CPL). • Replace the coupling (CPL). Oil level too low. • Top up oil.
-
Page 24: Technical Data
Oil capacity Weight approx. (50Hz / 60Hz) ~ 290 / 320 ~ 325 - / ~705 ~716 * In case of higher or lower temperatures, please consult your Busch representative. 13 Oil VS 150 VSB 100 ISO-VG Part number 1 L packaging... -
Page 25: Eu Declaration Of Conformity
14 EU Declaration of Conformity This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 26: Declaration Of Conformity
This Declaration of Conformity and the UKCA-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the UKCA-mark. - Page 27 Note...
