- Page 1 MINK Claw Vacuum Pumps MM 1104 CVM, MM 1102 CVM Instruction Manual 0870214421 | B0005_en-US | Original instructions 8/31/2022...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. Intended Use ............................... Design Options ..............................2.3.1 Aqua Version............................Start Controls ............................... Optional Accessories............................2.5.1 Inlet Filter ............................... 2.5.2 Non-return Valve........................... 2.5.3 Vacuum Relief Valve..........................Transport ................................Storage .................................. -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description

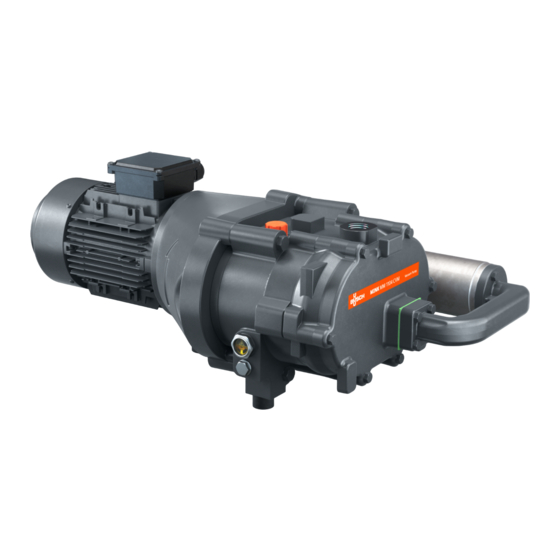

2 | Product Description Product Description NP OFP EB SI/OUT MM 1104 C VM Silencer variant 1 OSG ODP MM 1102 C VM Silencer variant 2 Description Inlet connection Discharge connection Oil fill plug Oil drain plug Oil sight glass Motor terminal box Silencer Condensate drain (optional) -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch rep- resentative in order to take specific precautions. -
Page 6: Design Options
2 | Product Description ● Provide an additional manual or automatic operated non-return valve in the suction line. Permitted environmental conditions, see Technical Data [➔ 25]. Design Options The design options described in the following chapters might be combined. The machine is available in Standard-Version and Aqua-Version. Please refer to the nameplate (NP) to identify the corresponding design option of your machine. -
Page 7: Transport
Transport | 3 Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the machine using the motor eye bolt. Risk of severe injury! ● Do not lift the machine using the eye bolt fitted to the motor. Only lift the machine as shown. ●... -
Page 8: Storage
4 | Storage Storage ● Seal all apertures with adhesive tape or reuse provided caps. If the machine is to be stored for more than 3 months: ● Wrap the machine in a corrosion inhibiting film. ● Store the machine indoors, dry, dust free and if possible in original packaging preferably at temperatures between 0 ... -
Page 9: Installation
● Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 10: Optional Mounting Positions: Silencer Assembly Group
In case of long connection lines it is advisable to use larger line sizes in order to avoid a loss of effi- ciency. Seek advice from your Busch representative. 10 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en... -
Page 11: Suction Connection
Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [➔ 25] and Oil [➔ 26]. Instruction Manual MINK MM 1102-1104 C VM_EN_en... - Page 12 5 | Installation The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. 12 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en...
-
Page 13: Electrical Connection
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 14: Wiring Diagram Three-Phase Motor
● Provide a lockable disconnect switch on the power line so that the machine is completely secured during maintenance tasks. ● Provide an overload protection according to EN 60204-1 for the motor. ● Busch recommends installing a D-curve circuit breaker. ● Connect the protective earth conductor. ● Electrically connect the motor. -
Page 15: Commissioning
Commissioning | 7 Commissioning NOTICE Lubricating a dry running machine (compression chamber). Risk of damage to the machine! ● Do not lubricate the compression chamber of the machine with oil or grease. CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. Risk of burns! ●... -
Page 16: Maintenance
Risk of injuries! Risk of premature failure and loss of efficiency! ● Maintenance work must only be executed by qualified personnel. ● Respect the maintenance intervals or ask your Busch representative for service. NOTICE Using inappropriate cleaners. Risk of removing safety stickers and protective paint! ●... -
Page 17: Maintenance Schedule
5000 operating hours. Other oils may reduce the change interval. Every 6 years ● Have a major overhaul on the machine (contact Busch). Oil Level Inspection ● Shut down the machine. ● When the machine is stopped, wait 1 minute before checking the oil level. -
Page 18: Cleaning From Dust And Dirt
Oil Change NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! ● Only use an oil type which has previously been approved and recommended by Busch. 18 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en... - Page 19 Maintenance | 8 For oil type and oil capacity see Technical Data [➔ 25] and Oil [➔ 26]. The oil level should stay constant over the lifetime of the oil. If the level does fall, this indicates a leak and the machine requires repair. Instruction Manual MINK MM 1102-1104 C VM_EN_en 19 | 32...
-
Page 20: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 21: Decommissioning
Decommissioning | 10 Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 22: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare part Description Part no. -
Page 23: Troubleshooting
● Replace the inlet filter car- the usual pressure on the suc- tional) is partially clogged. tridge. tion connection. Internal parts are worn or ● Repair the machine (contact damaged. Busch). Instruction Manual MINK MM 1102-1104 C VM_EN_en 23 | 32... - Page 24 Tech- nical Data [➔ 25]. Oil level too low. ● Top up oil. For the solution of problems not mentioned in the troubleshooting chart contact your Busch repre- sentative. 24 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en...
-
Page 25: Technical Data
Ambient pressure Atmospheric pres- Atmospheric pressure sure Oil capacity Weight approx. (SI variant 1) (SI variant 2) * In case of higher or lower temperatures, please consult your Busch representative. Instruction Manual MINK MM 1102-1104 C VM_EN_en 25 | 32... -
Page 26: Oil
14 | Oil VS 150 ISO-VG Part number 0.5 L packaging 0831 168 695 Part number 1 L packaging 0831 164 883 Part number 5 L packaging 0831 164 884 Remark 1 = Single-phase motor; 2 = Three-phase motor; 3 = Standard oil for non-demanding applications; 4 = Food applications (H1); 5 = Anti-corrosion; 6 = Suitable for continuous operation;... -
Page 27: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 28: Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 29 Notes Instruction Manual MINK MM 1102-1104 C VM_EN_en 29 | 32...
- Page 30 30 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en...
- Page 31 Instruction Manual MINK MM 1102-1104 C VM_EN_en 31 | 32...
- Page 32 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
