8/16-point ac discrete output module
Hide thumbs
Also See for 2500 Series:
- Installation and operation manual (52 pages) ,
- Product bulletin (2 pages) ,
- Quick start manual (2 pages)
Advertisement
2598 8/16-Point
AC Discrete Output Module
User
User
AC Power
AC Power
CHANNEL
CHANNEL
1
1

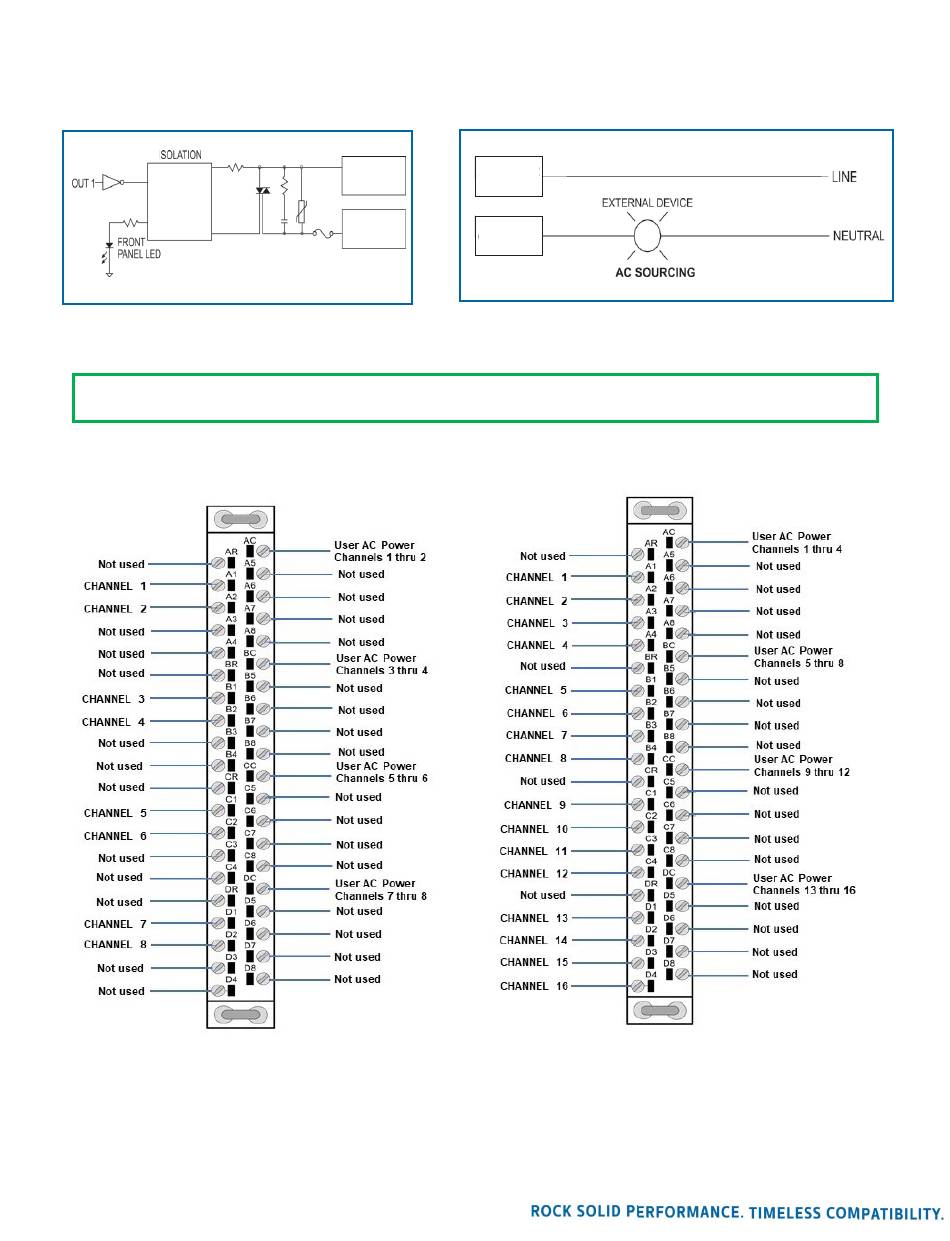

Figure 4. Typical Internal Circuit
Figure 5. Typical External Wiring Diagram
Note: The 2598 uses the 2500-40F removable wiring connector. This connector is ordered separately.
2598 Selector in 16 pt Login
2598 Selector in 8 pt Login
4 Outputs per Common Wiring Connector
2 Outputs per Common Wiring Connector
Copyright© 2021 Control Technology Inc.
All Rights Reserved
25 October 2021
