EXAMPLE: S0 INTERFACE ON J3 AND S0 INTERFACE ON J4

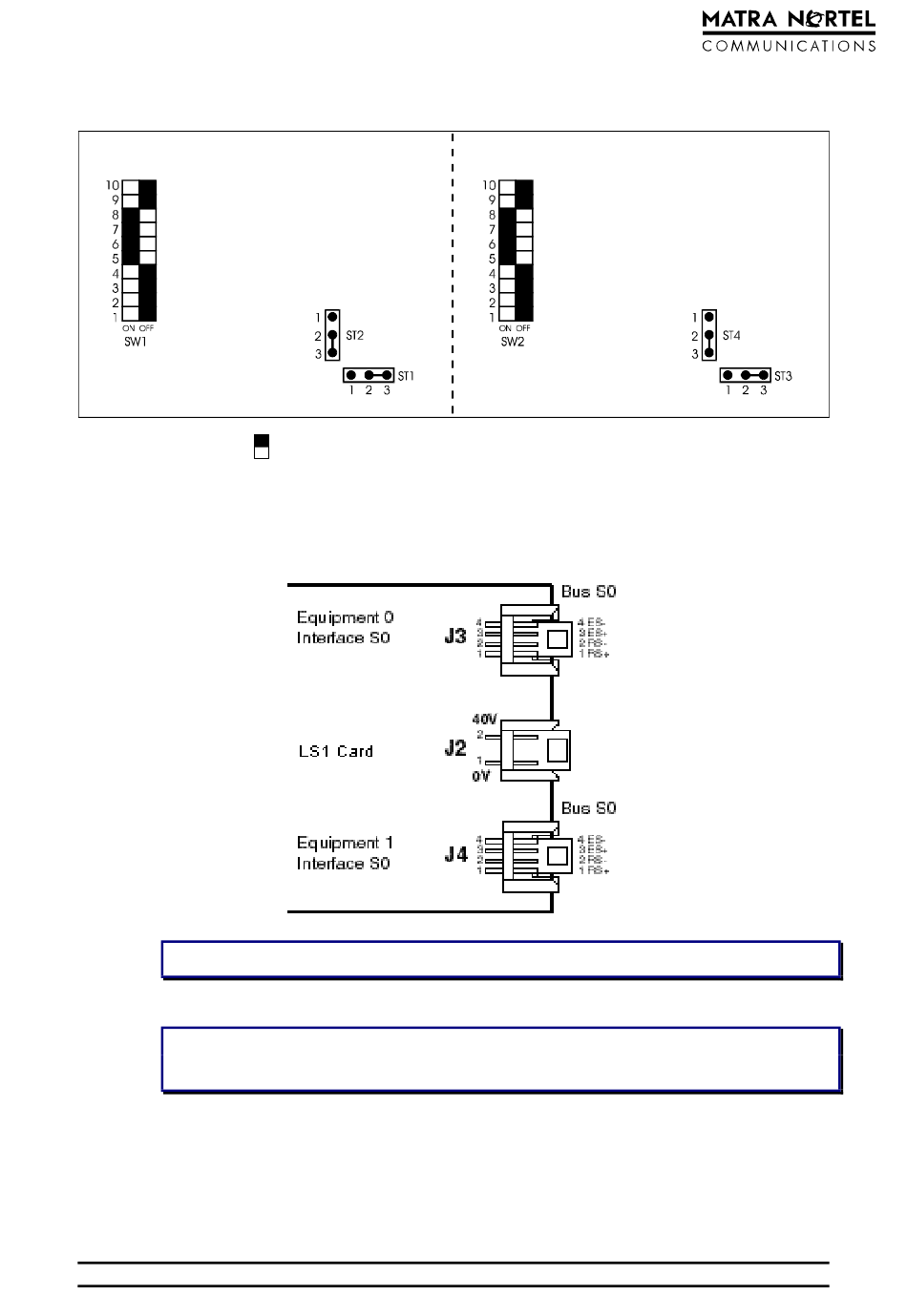

Figure 17: Configuration of the S0 interface switches and straps on J3 and J4
Connection on J3 and J4:
Note:
In this case, connector J2 will receive the power supply for the two S0 interfaces.
Note:
RT: T-interface (receive)
AND: T-interface (transmit)
LCAH-30521-001-05=01/EN
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONSet ne doit pas être reproduit ou communiqué sans autorisation.
The black square corresponds to the switch position
RS: S-interface (receive)
ES: S-interface (transmit)
PAGE
63/171
