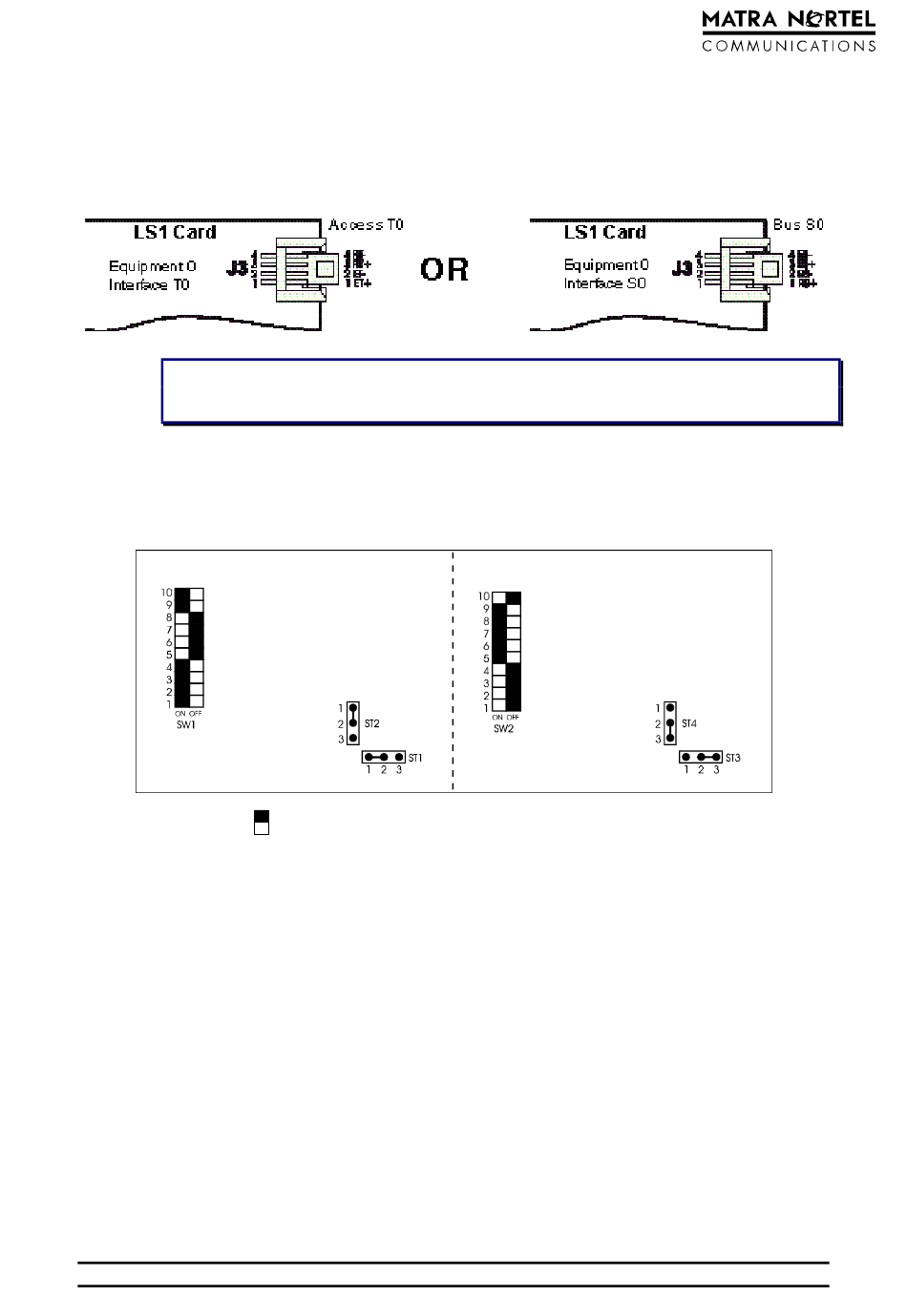

PRESENTATION OF CONNECTORS J3 AND J4
Depending on whether LS1 card is declared as T0 or S0 interface, the designation of J3
and J4 output pins will vary. Consequently, the wiring will be different.
Example: equipment 0 on connector J3
Note:
RT: T-interface (receive)
AND: T-interface (transmit)
4.4.2
CONFIGURING THE SWITCHES AND STRAPS
EXAMPLE: T0 INTERFACE ON J3 AND S0 INTERFACE ON J4
LCAH-30521-001-05=01/EN
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONSet ne doit pas être reproduit ou communiqué sans autorisation.
The black square corresponds to the switch position
RS: S-interface (receive)
ES: S-interface (transmit)
PAGE
61/171
