4.3.2

CONFIGURATION

Note: The minimum reference of the LD4 card is HJ4054AD02.
4.3.2.1 SWITCH SETTINGS (COMPONENT SIDE)
Two jumpers (SW7 and SW8) are used to select the remote power supply voltage (48 V
DECT base station or 40 V ISDN line interface circuits). The 48 V is supplied by the PBX
back panel while the ISDN 40 V is supplied by a 2-pin stocko connector fitted to the LD4
card face plate.
! ! ! !
Use 48 V remote power supply with DECT radio base stations. The use of 48 V
remote power supply is mandatory with S0 sets.
Two jumpers per ADAPT channel are used to set the adaptation resistors on the Tx/Rx
pairs. For DECT, these jumpers must be set to the ON position.
Power supply switches (ALIM), SW3, SW4, SW5, SW6: when connecting a 2-or 4-channel
DECT base station in S0 mode, the two jumpers must be configured to allow remote
powering of the access from the PBX.
Programming jumper (PROG) must be set to 1-2 (as delivered from the factory) to prevent
permanent damage.
J1
ADPCM

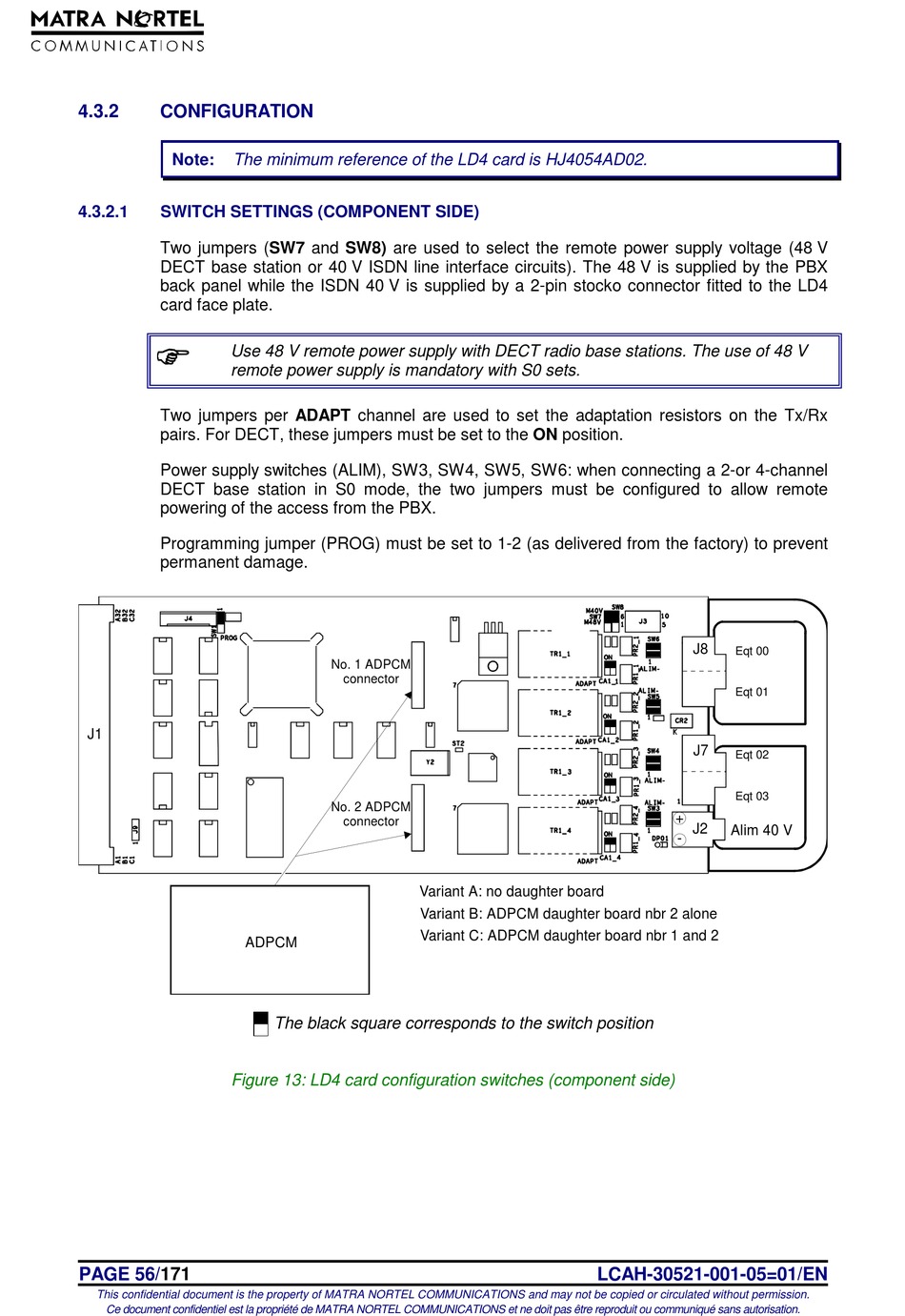

Figure 13: LD4 card configuration switches (component side)

PAGE 56/171
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONS et ne doit pas être reproduit ou communiqué sans autorisation.
No. 1 ADPCM
connector
No. 2 ADPCM
connector
Variant A: no daughter board
Variant B: ADPCM daughter board nbr 2 alone
Variant C: ADPCM daughter board nbr 1 and 2
The black square corresponds to the switch position
J8
Eqt 00
Eqt 01
J7
Eqt 02
Eqt 03
+
J2
Alim 40 V
-
