NEW DISTRIBUTION FRAMES

3.4.1

NEW ROCZ MAIN DISTRIBUTION FRAME FOR C1/C6 (INFRA + FOR FRANCE)

Simultaneous use
of the S0 and T0
interfaces is not
possible.

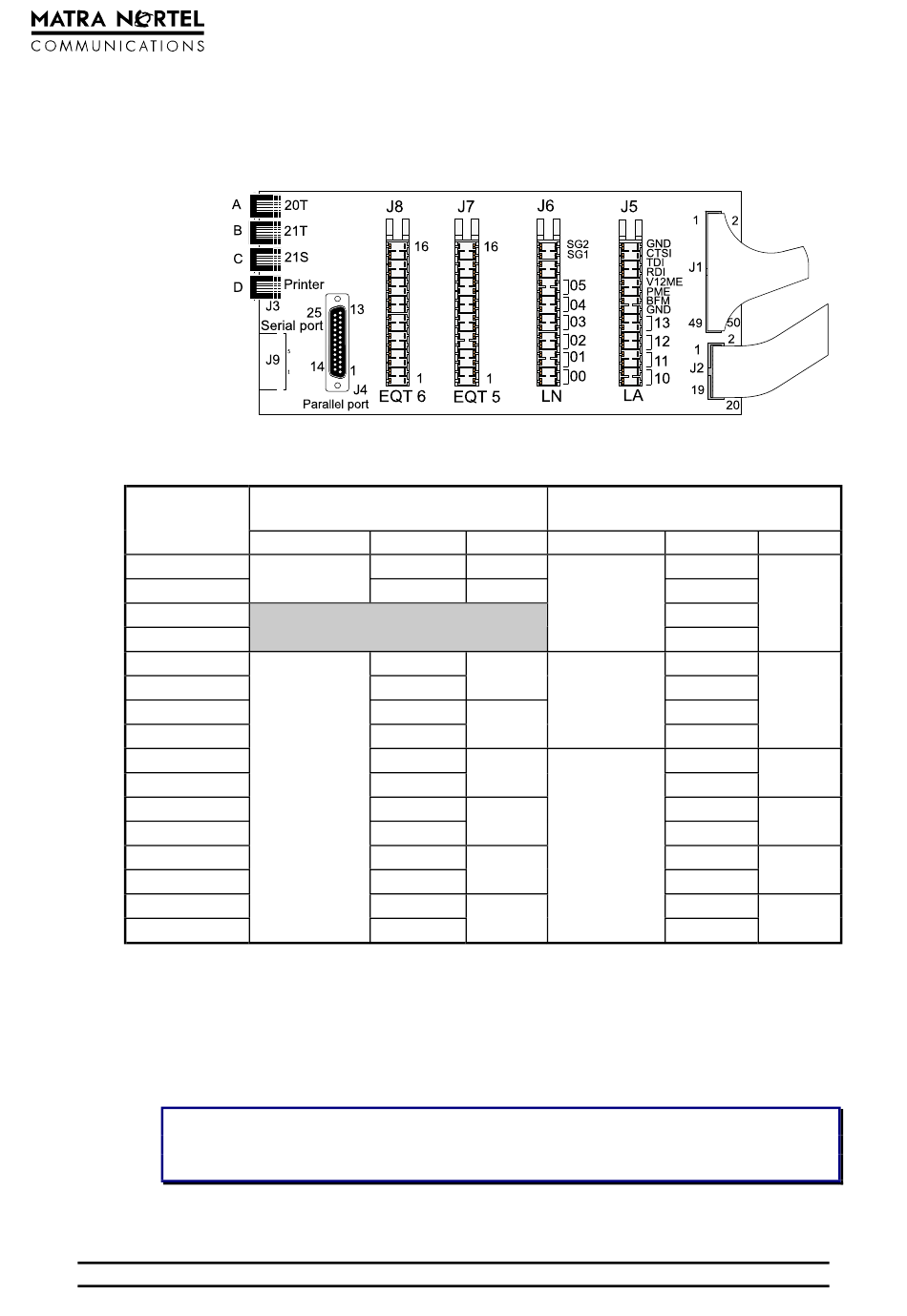

OCZ card equipment wiring:
Connection
point
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Connection point legend:
BFM
PME
V12ME : 12V voltage
Note: loop V12ME on PME to simulate presence of external music.
Note: The new main distribution frame does not allow synchronization by additional
pair. If more than one base station is installed, it is therefore necessary to have
an EOCU card and to use m-bit synchronization.
