3.2.7 CONNECTING RADIO BASE STATIONS TO EOCT AND OCY2 CARDS

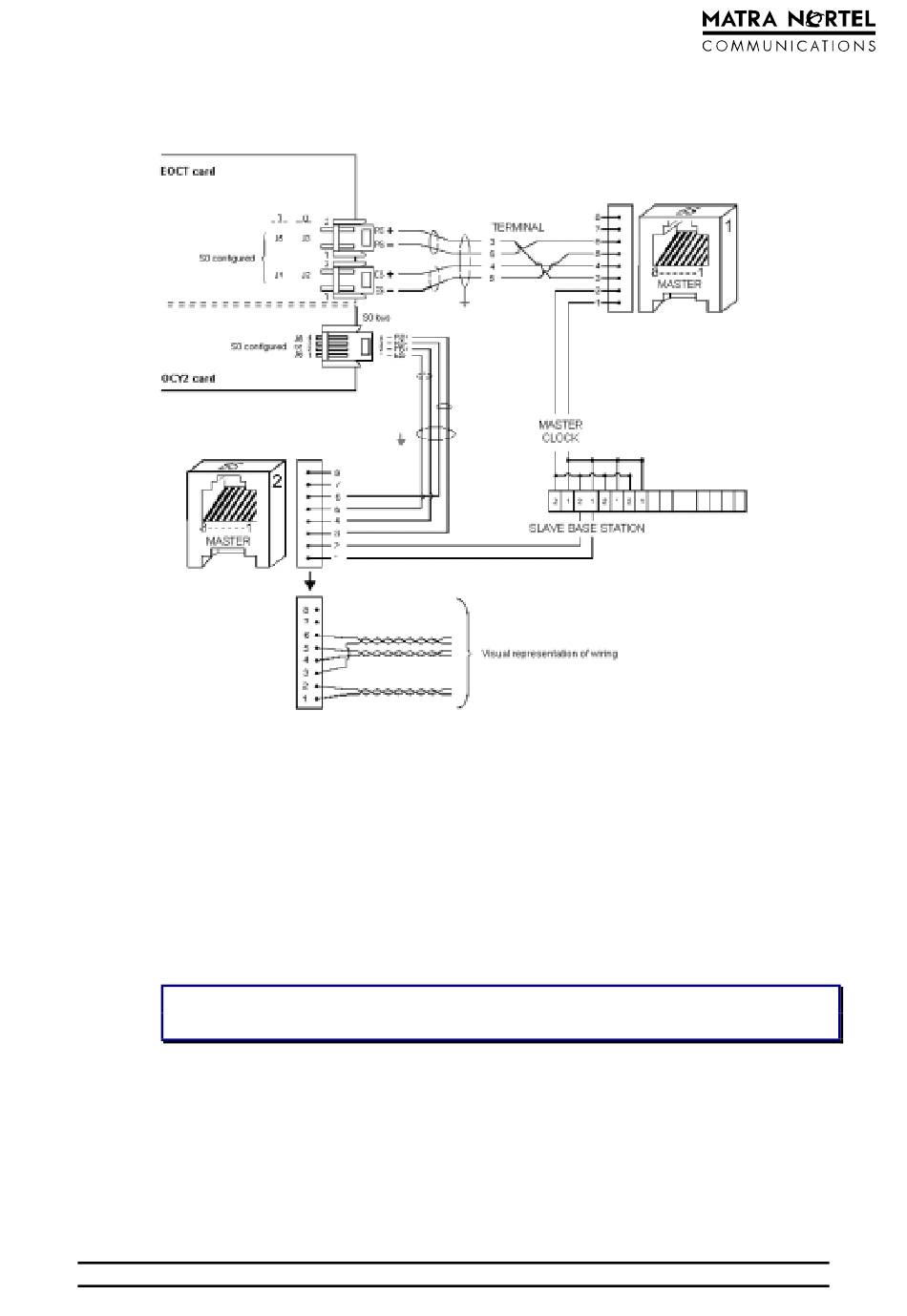

Figure 6: Connecting radio base stations to EOCT and OCY2 cards

3.2.8

BASE STATION POWER SUPPLY

Base stations are powered using a 40 V or 48 V remote power supply selected on the
OCY2 card.
See section 3.3.9. A 40 V remote power supply is mandatory for the EOCT card.
For DECT radio base stations, select (preferably) the 48 V power supply. The 40 V supply
voltage is mandatory for the S0 interfaces providing a remote power supply voltage.
Note: Base stations can be used in 4-channel mode with software release 11.5 or later,
with the EOCU interface card and its ADPCM daughter cards.
