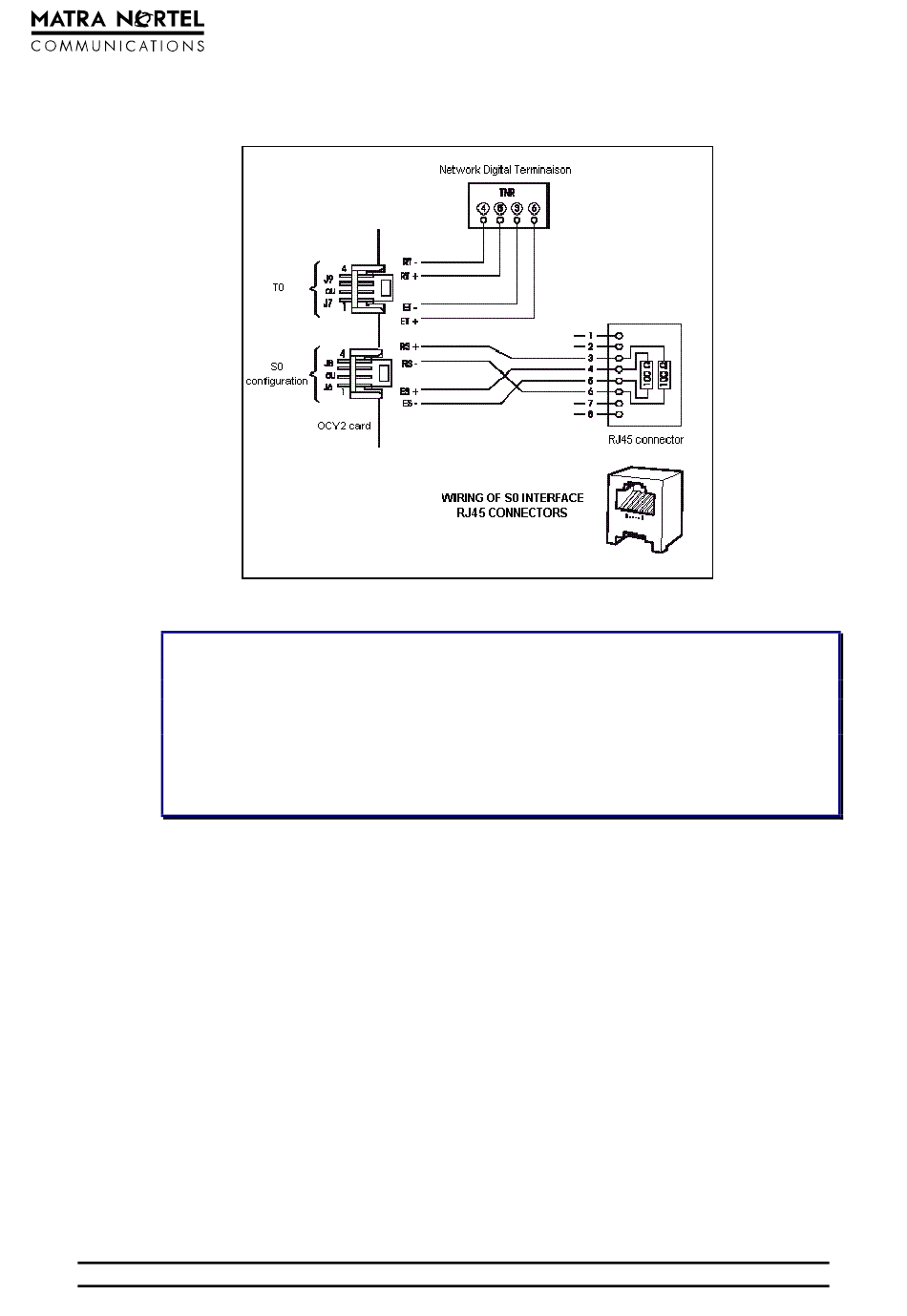

WIRING RADIO BASE STATIONS TO THE OCY2 CARD

Note: Remember to set the line termination adaptation resistors on the various S0
buses. This avoids reflection phenomena (100 Ω - 1/4 W - 5 % for series 278
cable); for other cables, please refer to the manufacturer instructions.
If Minibus type buses are used, these resistors are already installed.
Where configurable buses are configured as T0 (CA5 switch on the OCY2 card
set to the OFF position), ports J6 and J8 will be connected as specified above for
J7 and J9 ports.
3.2.5

EOCT CARD

The configuration and wiring of the EOCT card are the same as for the MC 6501-C1 PBX.
See section concerned.
3.2.6

EOCU CARD

The configuration and wiring of the EOCU card are the same as for the MC 6501-C1 PBX.
See section concerned.
