3.1.3 CONNECTING A RADIO BASE STATION TO THE EXPANSION DISTRIBUTION
FRAME
Note: No radio base station is wired to the main distribution frame.

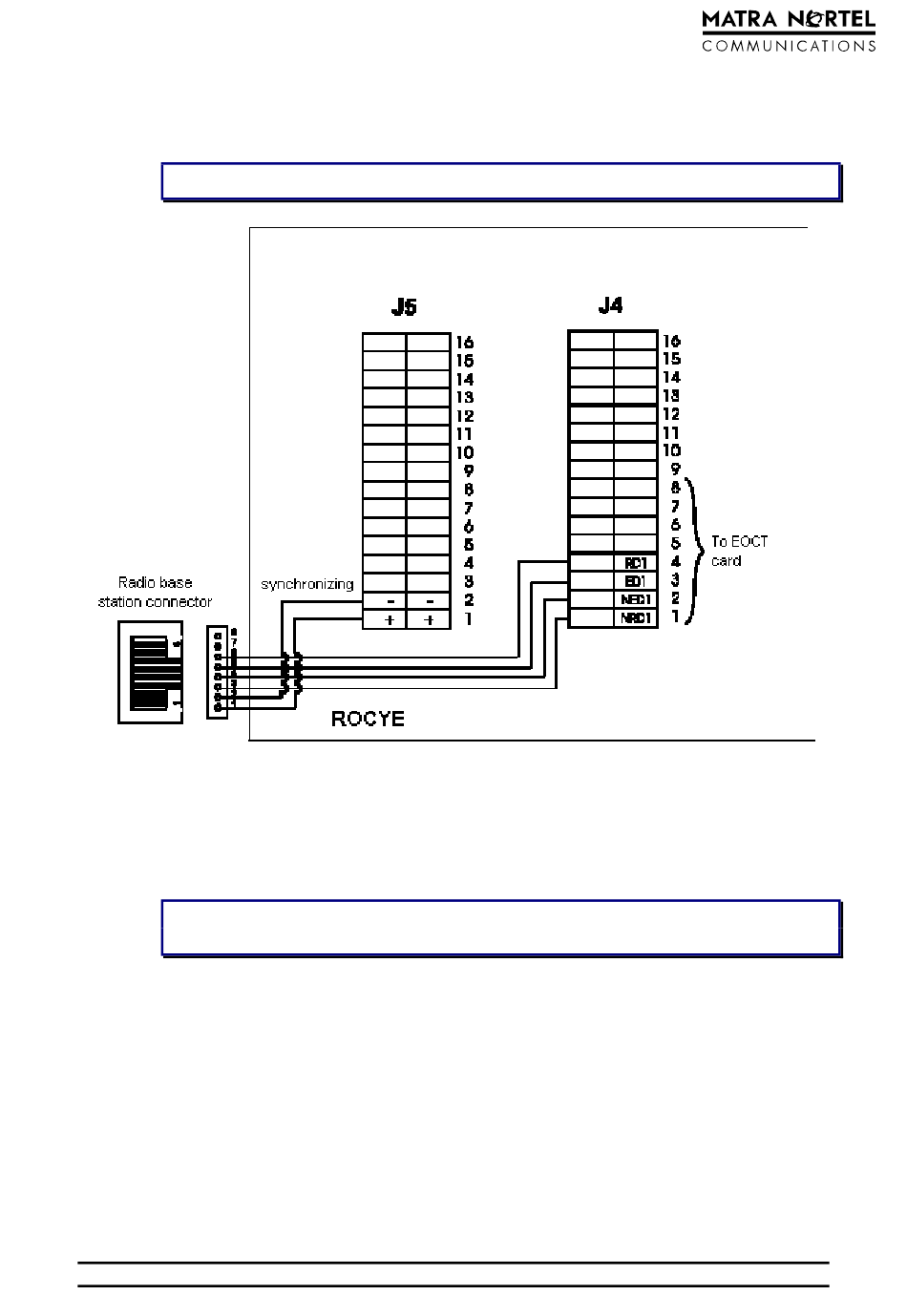

Figure 3: Connecting a radio base station to the expansion distribution frame

Connect the two pairs (Tx/Rx) directly to strip J4 (pins 1 to 4).
Connect the EOCT card to the other side of strip J4.
Note: Although the two synchro cables are not necessary for this setup, you are
recommended to wire them in preparation for future expansion.
LCAH-30521-001-05=01/EN
