3.1.2

CONNECTING A BASE STATION TO THE MAIN DISTRIBUTION FRAME

Each radio base station is wired using three pairs (Transmission - Reception - Sync).
The synchronization pair for a "master" radio base station can supply one "slave" radio
base station.
CAUTION: Check that the S0 equipment on the OCZ card is correctly configured (see
Note: Connect the base station to the ROCZB card using an 8-pin ribbon cable.
Radio base station
connector

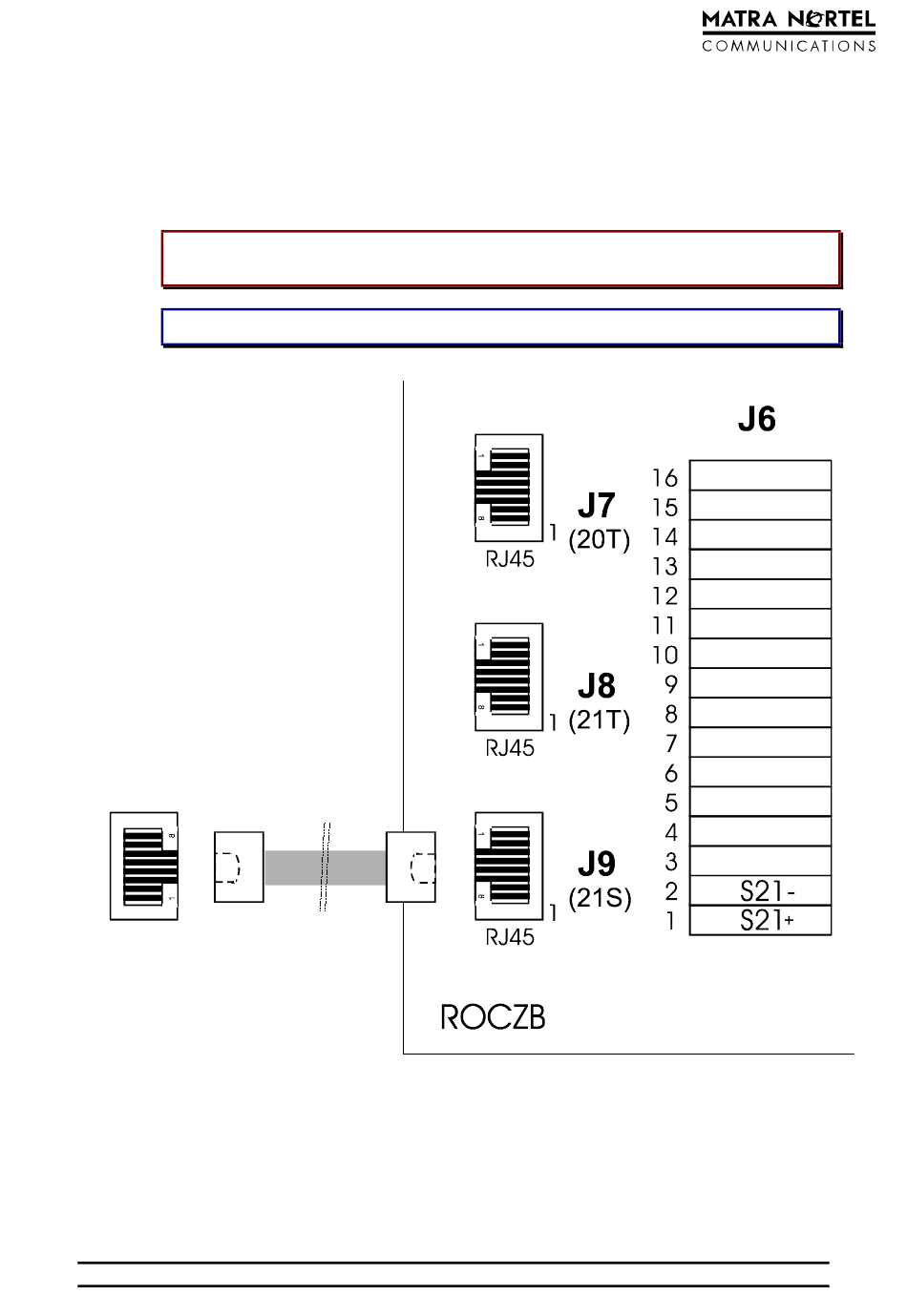

Figure 2: Connecting a radio base station to the main distribution frame

LCAH-30521-001-05=01/EN
This confidential document is the property of MATRA NORTEL COMMUNICATIONS and may not be copied or circulated without permission.
Ce document confidentiel est la propriété de MATRA NORTEL COMMUNICATIONSet ne doit pas être reproduit ou communiqué sans autorisation.
section 3.1.1 for switch settings) and declared by MMC.
Ribbon cable
