Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995

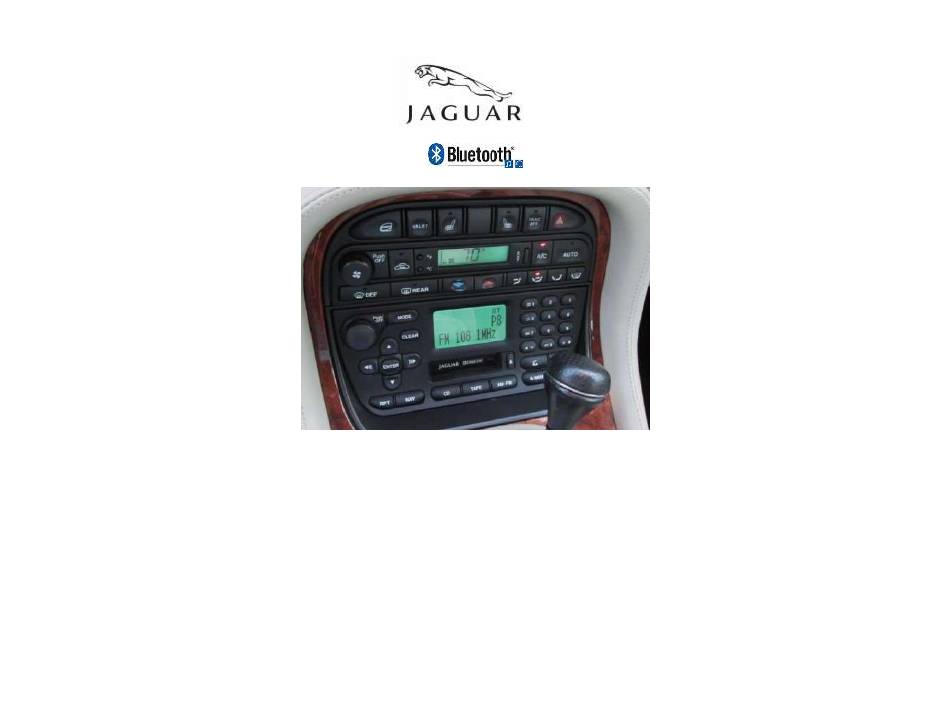

BT45-JAG
QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT JAGUAR XK AND XJ WITH CD CHANGER
1998-03 XJ (X308) and 1997*-06 XK (X100)
Created December 21, 2015
Revised: October 29, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT45-JAG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Discount Car Stereo BT45-JAG

Summary of Contents for Discount Car Stereo BT45-JAG

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT45-JAG QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT JAGUAR XK AND XJ WITH CD CHANGER 1998-03 XJ (X308) and 1997*-06 XK (X100) Created December 21, 2015 Revised: October 29, 2021...
  • Page 2 Fig. 1 Safety comes first when you’re on the road, so having an intuitive and easy to use Bluetooth kit is essential to reducing driver distraction. The BT45-JAG kit is Locate short CD pigtail. Connects CD changer to radio (Standard systems) compatible with virtually all Bluetooth phones, and sounds great whether you are or to amplifier (Premium system).
  • Page 3 Remove cable from holding tab Disconnect CD changer by gently pulling apart (Don’t wiggle or twist) You should not have cable as seen in Fig. 2. Female connector (right) – from CD changer, male plug (left) – to amplifier or radio Fig.
  • Page 4 Routing audio cable (X308) Use pry tool or similar to open gap between window pillar and rear deck as seen in Fig. 5. From trunk, fish audio cable (See Fig. 4) through and into vehicle cabin. (See Fig. 6) Fig. 9 Continue to use pry tool or fingers to fish wire under center glove box and 20 ft.

  • Page 5: Wiring Diagram

    Wiring diagram Microphone installation Note: If vehicle has factory mic in overhead console (See Fig. 12) you may use it instead of mic included with kit. To use factory mic, simply connect 3.5mm plug from installation (See Fig. 15) to module “MIC” input jack (See Fig. 11). Fig.
  • Page 6 Fig. 14 Fig. 19 Fig. 18 (18-pin Male connector) (10-pin Female plug) WARNING!! Factory phone plug is required to install this kit. It is vital you provide us the plug/connector size/gender for your vehicle. The plug/connector is located under storage bin. Go to page 5 to learn how to remove storage bin.

  • Page 7: Bluetooth Pairing And Connection

    Twist remote control bottom cap to open This is a one-time process that will not have to be repeated. After initial pairing, Remove battery’s protective clear film the BT45-JAG will automatically reconnect with paired phone upon entering Close cap vehicle.

  • Page 8: Remote Control Operation

    Remote Control Operation Media streaming operation If 2 phones have been paired, music streaming is possible from either one: Set the radio to “CD/Bluetooth” mode Launch preferred music app Use wireless remote control to adjust volume, change tracks etc. To switch between phones, simply pause first phone and press play on second and vice versa Answering and ending calls.

  • Page 9: Feature Comparison

    ✓ BT45-JAG does not require radio removal. Module installs in storage bin. Voice Recognition ✓ ✓ ✓ 3. Which model/year Jaguars will the BT45-JAG work and where do I Requires phone plug ✓ Plug-n-play installation ✓ connect AUX adapter? Smart media button ²...
  • Page 10 Email support@discountcarstereo.com © 1995-Oct-21 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
