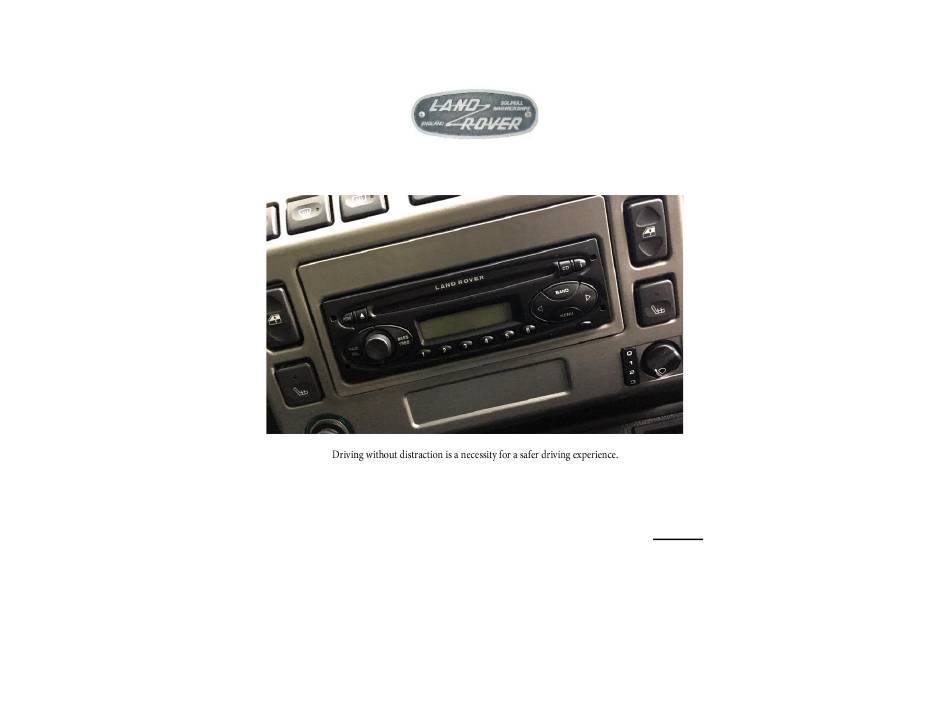

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT3-LRDF QUICK START INSTALLATION GUIDE FOR SELECT 1987-06 LAND ROVER WITH VISTEON RADIO Created: January 2011 Revised October 14, 2024...
- Page 2 Visteon radio. Most car stereo shops suggest and FM modulator, replacing radio or have no offering, but those adamant about keeping the original radio, we offer the BT3-LRDF Bluetooth module. The BT3-LRDF works on Visteon radio model XQE 000160PMA in select 1987-06 Landrover (Discovery, Defender, Freelander) to provide hands-free calls (HFP), streaming (A2DP) and charging (5V/2.1A) allowing users to make/receive calls, stream favorite audio...
- Page 3 Fig. 5 Fig. 3 Connect harness 10-pin plug (See Fig.4) to radio 10-pin chamber vacated in step 3- See Fig. 3. Fig. 6 Connect installation harness 16-pin plug (See Fig. 7) to module 16-pin connector (See Fig. 8) Fig. 4 Tap/splice the accessory wire (red) from module harness (See Fig.
- Page 4 Optional USB extension cable installation Note: 1. Optional 6 ft. USB dash mount extension cable is not required for operation, however it extends USB charging port (See Fig. 12) to dashboard, glovebox etc. The USB port supports charging only Drill a ¾” hole to dash or panel using a step drill bit or equivalent (See Fig. 10) Fig.
- Page 5 Pairing module Bluetooth operation: Pairing varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated Turn ignition to ACC and radio “ON” Press the “CD” button to enter CD changer (Bluetooth) mode. Turn Ignition and radio “ON”...
- Page 6 •We recommend professional installation. Email support@discountcarstereo.com © 1995-Oct-24 Discount Car Stereo All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
