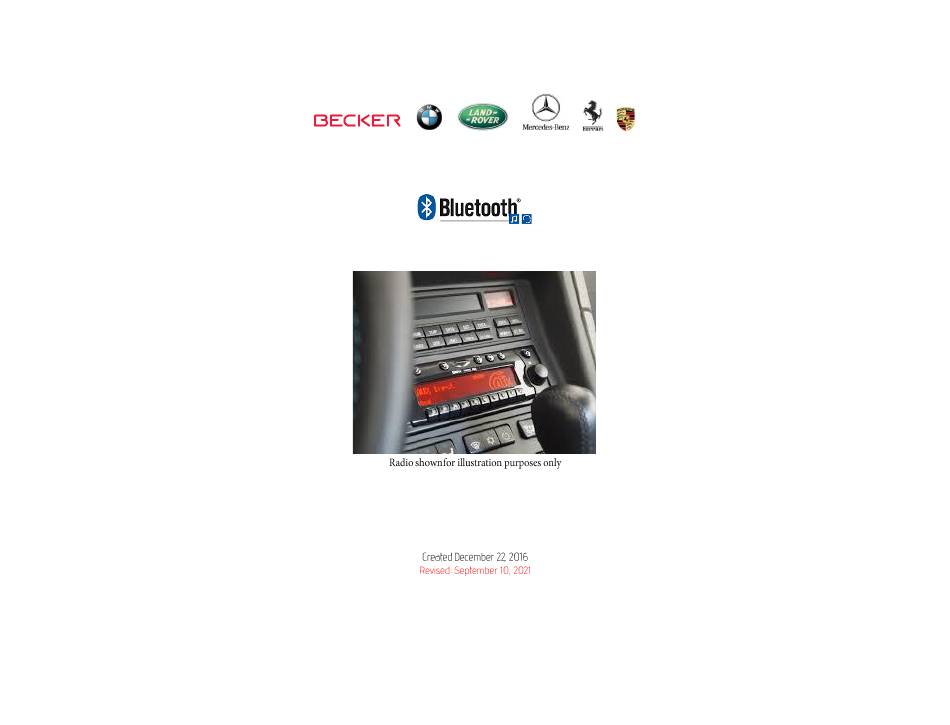

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BT45-BKR QUICK START BLUETOOTH INSTALLATION GUIDE FOR BECKER AUX READY RADIOS...
-
Page 2: Installation
Introduction Safety comes first when you’re on the road, so having an intuitive and easy to use Bluetooth kit is essential to reducing driver distraction. The new BT45-BKR kit is compatible with virtually all Bluetooth phones, and sounds great whether using it for mobile conversations or streaming music. - Page 3 Fig. 5 Fig. 3 Radio connectors 3. Connect BLUE plug from installation harness (See Fig. 4) to C-3 on radio. Fig. 6 power harness 5. Connect 8-pin plug from power harness to radio chamber (vacated in step 4) Connect 3.5mm plug from installation harness (See Fig. 7) to module “AUX1”...
- Page 4 9. Connect 6-pin plug from installation harness to module “Radio/Power” port (See Fig. 10 and 11) Fig. 8 Fig. 10 Fig. 11 Module 7. Install microphone (See Fig. 9) to visor and route plug down side pillar, 10. Twist remote control battery cover (bottom) and open to remove clear under dash to radio cavity.
-
Page 5: Initial Radio Setup
Radios with ☼ button: (e.g., BE6104) Initial radio setup Most Becker radios are pre-programmed to recognize optional CD Changer connection and because of that you must perform the following steps and change setting from CD Changer to “AUX” otherwise module will not perform as Turn Radio “ON”... - Page 6 Nav Traffic radios Sound 5 (BE7077 Sprinter Van) Press “Radio" button to enter radio mode. Turn radio ON. Press "Navi" and "F10" simultaneously Press the repeatedly until EXT menu appear. Press "Next" until AUX input, changer Res screen Turn Rotary control knob clockwise and select EXT AUX. Press AUX to enable/disable.
- Page 7 Becker BE7801 Infotainment (Ferrari, Maserati) Enable phone function This option must be enabled otherwise callers voice will not be heard on car speaker. To enable simply open radio phone menu and set PH to “ON” Press TP button for more than 2 seconds Press multifunction button “AUX”...
-
Page 8: Bluetooth Pairing
Bluetooth pairing Remote control Pairing varies among phones but the basic steps are the same. This process is If not already done, twist open remote control bottom cap (turn done upon initial install and does not have to be repeated counterclockwise) Remove battery’s protective clear film so battery negative terminal Enable Bluetooth on device (e.g., smartphone) -
Page 9: Placing Calls
Enable/disable voice prompt + caller Placing calls announcement Tap the button on remote control to initiate voice command or make call directly from phone Stop all active calls and or media streaming Press button on remote control to end call Press button on remote control to enable feature: you will hear “Voice Enabled”... -
Page 10: Comparison Chart
Email support@discountcarstereo.com © 1995-2021-09-10 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
