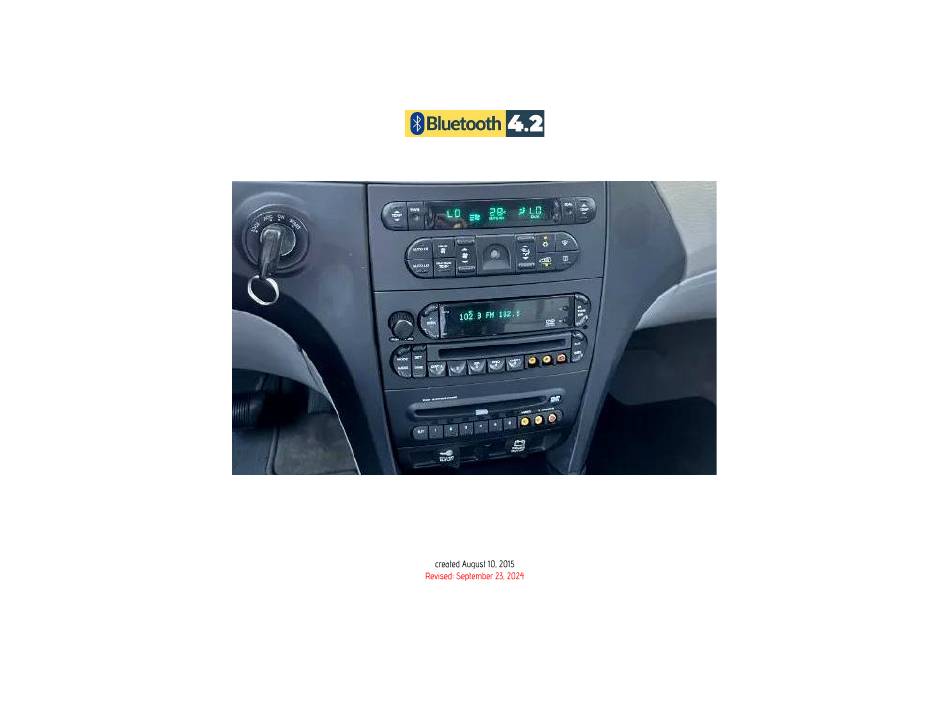

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BTA-CHRY02 BLUETOOTH INSTALLATION GUIDE FOR CHRYSLER WITH REMOTE CD CHANGER, RSE OR ACTIVE SIRIUS SUBSCRIPTION...
- Page 2 If vehicle has a remote/external CD changer, RSE (DVD) or Sirius radio (active subscription); the BTA-CHRY02 (formerly A2D-CHRY02) module will provide a wireless music streaming solution and charging for any smartphone, tablet, Fig.
- Page 3 Fig. 3 Fig. 5 female connector Connect installation harness 16-pin plug (See Fig. 6) to module 16-pin Connect/Tap Red Acc. Wire (See Fig. 4) to switched supply in vehicle. socket (See Fig. 7) One possible option is pin 12 (usually white or pink) on radio power/speaker plug (See Fig.
- Page 4 Optional USB extension cable installation Pairing Please note: Optional USB dash mount extension cable is not required for operation; however, it extends USB charging port (See Fig. 10) to dashboard, Pairing process varies from phone to phone but basic steps are the same. This glovebox etc.
- Page 5 Bluetooth operation Turn ignition and radio “ON” Press “MODE” button (See Fig. 13) Fig. 10 Snap header (See Fig. 11) to surface until flush (See Fig.12) Fig 13 If emulating a remote CD changer, ensure that at least one “DISC” is loaded to magazine and remain loaded.
- Page 6 •We recommend professional installation Email support@discountcarstereo.com © 1995-Sep-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
