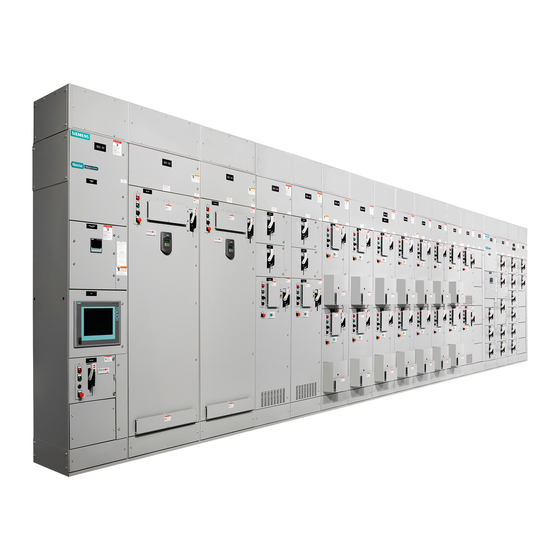

Siemens Tiastar LV MCC Instruction Manual

Gateway unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction manual
Siemens tiastar
Gateway Unit
™
www.usa.siemens.com

Advertisement

Table of Contents
loading

Related Manuals for Siemens Tiastar LV MCC

Summary of Contents for Siemens Tiastar LV MCC

  • Page 1 Instruction manual Siemens tiastar Gateway Unit ™ www.usa.siemens.com...

  • Page 2: Table Of Contents

    Contents 1. Introduction 2. Configure Profibus Network for Gateway 2.1. STEP 1: Create a new project 2.2. STEP 2: Add the master unit 2.3. STEP 3: Configure the master 2.4. STEP 4: Add a Simocode Pro to the hardware configuration 2.5. STEP 5: Add an RVSS to the hardware configuration 2.6.

  • Page 3: Introduction

    Configure the profibus network configuration for the MCC,and configure the gateway itself for operation. This involves the following steps: • Connect to the gateway using HYPERTERMINAL and configuring operation • Create the Profibus network configuration of the MCC Download Download the Profibus configuration to the gateway. Verify Verify the proper operation of the gateway. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 4 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 5: Configure Profibus Network For Gateway

    2. Configure Profibus Network for Gateway The program we will be using is: Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 6: Step 1: Create A New Project

    2.1. Step 1: Create a new project Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 7: Step 2: Add The Master Unit

    2.2. Step 2: Add the Master Unit Select the Anybus Master object and drag it over to the network area. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 8: Step 3: Configure The Master

    2.3. Step 3: Configure the Master Double-click to configure the master You will then get this default configuration Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 9 Select the MULTI-MASTER DP configuration setting Then save it by pressing OK Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 10: Step 4: Add A Simocode Pro To The Hardware Configuration

    Important Note: Always choose the <Basic Type 1> version of the unit for Pro V. Only <Basic Type 2> is available for Pro C. This is what the simocode device looks like after being added to the network configuration … Select the device type and drag it over to the slot configuration. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 11 This is what the simocode device looks like after being added to the network configuration and having the slot configured. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 12: Step 5: Add An Rvss To The Hardware Configuration

    2.5. Step 5: Add an RVSS to the hardware configuration Important Note: Please review the section on adding a SIMOCODE to the hardware configuration prior to reading this section. The SIMOCODE shows additional steps that are deliberately not shown here for brevity. Select the SIRIUS 3RW44 object from the device tree and drag to the network line on the master Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 13 Select the device type and drag it over to the slot configuration. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 14: Step 6: Add An Mm440 To The Hardware Configuration

    Please review the section on adding a SIMOCODE to the hardware configuration prior to reading this section. The SIMOCODE shows additional steps that are deliberately not shown here for brevity. Select the MICROMASTER 4 object from the device tree and drag to the network line on the master Important Note: Always choose the <(PPO 1)> version of the unit. Select the device type and drag it over to the slot configuration. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 15: Step 7: Save File

    The final configuration of the network and device should look something like this. 2.7. Step 7: Save file After all the nodes have been added to the network configuration, you must save the file. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 16: Configure Gateway

    3. Configure Gateway 3.1. Step 1: Configure the Network Nodes You must complete the following steps prior to configuring and testing the gateway. • Download unit configuration files to each smart device that does not allow configuration via keypad. • Enter node addressing to each smart device via keypad that does not receive downloaded unit configuration files from above Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 17: Step 2: Launch Gateway Configuration Software

    3.2. Step 2: Launch Gateway Configuration Software The Program we will be using is: Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 18 Open the .xml gateway configuration file. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 19: Step 3: Review The Network Addressing

    3.3. Step 3: Review the Network Addressing Record these numbers for later use: Input = 24 (23 + 1) Output = 18 (17 + 1) Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 20: Step 4: Connect To The Profibus Configuration Port

    3.4. Step 4: Connect to the Profibus Configuration Port On the Profibus Master side of the Anybus X Gateway connect your RS-232 DB9FF Null Modem Cable to the Master Config Port and the serial port on your computer. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 21: Step 5: Download The Profibus Configuration

    3.5. Step 5: Download the Profibus Configuration Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 22: Step 6: Connect To Gateway Configuration Port

    3.6. Step 6: Connect to Gateway Configuration Port This is NOT the same port used to download the Master Configuration in Step 3.4. 1. On the DeviceNet side of the Anybus X Gateway connect your RS-232 DB9FF Null Modem Cable to the Gateway Config Port and the serial port on your computer. 2. On the EtherNet/IP or Modbus TCP/IP side of the Anybus X Gateway connect your RS-232 DB9FF Null Modem Cable to the Gateway Config Port and the serial port on your computer. 3. On the Modbus RTU side of the Anybus X Gateway connect your RS-232 DB9FF Null Modem Cable to the Gateway Config Port and the serial port on your computer. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 23: Step 7: Launch Hyperterminal

    3.7. Step 7: Launch HyperTerminal The Program we will be using is: Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 24 Enter the name of the connection and then select ICON. Select the COM port to connect with. (Dependant upon machine) Press the CONFIGURE button to set up the communication parameters of the port to connect with the gateway Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 25 When the Hyper Terminal setup is complete this blank screen should appear. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 26: Step 8: Cycle Power To The Gateway

    3.8. Step 8: Cycle Power to the Gateway You should see this screen promptly after cycling power to the gateway. If you don’t see this display, recheck the cable (step 6) or the communications settings (step 7) and cycle power again. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 27: Step 9: Configure The Gateway

    3.9. Step 9: Configure the Gateway You should see this screen. Press ESC Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 28: Choose Option 4 : Show Fieldbus System Configuration

    3.9.1. Choose Option 4 : Show fieldbus system configuration Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 29: Choose Option 6 : Change Configuration

    3.9.2. Choose Option 6 : Change configuration This is from the downloaded profibus configuration Refer to step 3 and verify the numbers match Press ESC to continue. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 30 Press “Y” Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 31 Enter the input and output byte sizes IMPORTANT: Notice how the input & output byte sizes are swapped from option 4. This is required for proper operation. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 32 Press “Y” Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 33 Press “Y” Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 34: Step 9: Tesing The Gateway Configuration

    3. Connect the serial cable to profibus configuration port. (Refer to step 4) Press this button for online monitoring The color of the device border indicates the connection of the unit: Green: The unit is connected and communicating to the master Red: The unit is not connected or communicating to the master. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 35: Modbus Mapping

    401046 400023 401047 400024 401048 400025 401049 400026 401050 400027 401051 400028 401052 400029 401053 400030 401054 400031 401055 400032 401056 400033 401057 400034 401058 400035 401059 400036 401060 400037 401061 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 36 401090 400067 401091 400068 401092 400069 401093 400070 401094 400071 401095 400072 401096 400073 401097 400074 401098 400075 401099 400076 401100 400077 401101 400078 401102 400079 401103 400080 401104 400081 401105 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 37 401134 400111 401135 400112 401136 400113 401137 400114 401138 400115 401139 400116 401140 400117 401141 400118 401142 400119 401143 400120 401144 400121 401145 400122 401146 400123 401147 400124 401148 400125 401149 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 38 401178 400155 401179 400156 401180 400157 401181 400158 401182 400159 401183 400160 401184 400161 401185 400162 401186 400163 401187 400164 401188 400165 401189 400166 401190 400167 401191 400168 401192 400169 401193 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 39 401222 400199 401223 400200 401224 400201 401225 400202 401226 400203 401227 400204 401228 400205 401229 400206 401230 400207 401231 400208 401232 400209 401233 400210 401234 400211 401235 400212 401236 400213 401237 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 40 401265 400242 401266 400243 401267 400244 401268 400245 401269 400246 401270 400247 401271 400248 401272 400249 401273 400250 401274 400251 401275 400252 401276 400253 401277 400254 401278 400255 401279 400256 401280 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 41: Device Data

    5. Device Data 5.1. SIMOCODE Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 42 Note: Table B-5 and B-6 display typical data. Information located in the Presetting column may vary dependant upon device configuration. See the Simocode Pro System Manual for more detail. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 43: Rvss (3Rw44)

    5.2. RVSS (3RW44) Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 44 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.

  • Page 45: Vfd (Mm440)

    5.3. VFD (MM440) Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 46 Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 47 What this essentially means that the cyclic data (space occupied on the profibus network for this unit) will be 12 bytes in and 12 bytes out. Bytes Out Meaning Chart Ref 0 1 Control word (defined above) STW1 2-3 Frequency reference to the VFD (0 -6000) Bytes In Meaning Chart Ref 0 1 Status word (defined above) 2-3 Speed feedback in HZ (0 – 6000) The rest of the bytes (8) are used by the PLC program to transfer parameters and data between the drive and the PLC. Instruction manual - tiastar Gateway Unit © Siemens Industry Inc. 2011. All rights reserved.
  • Page 48 Norcross, GA 30092 terms of contract. All product designations may be trademarks or product names of Siemens AG or supplier companies whose use by www.usa.siemens.com third parties for their own purposes could violate the rights of the owners.
