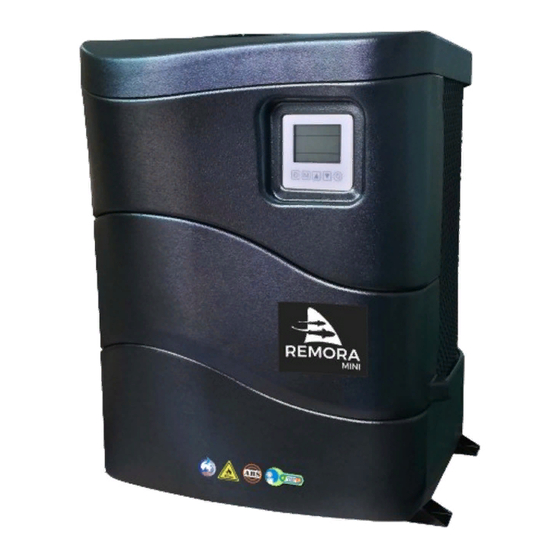

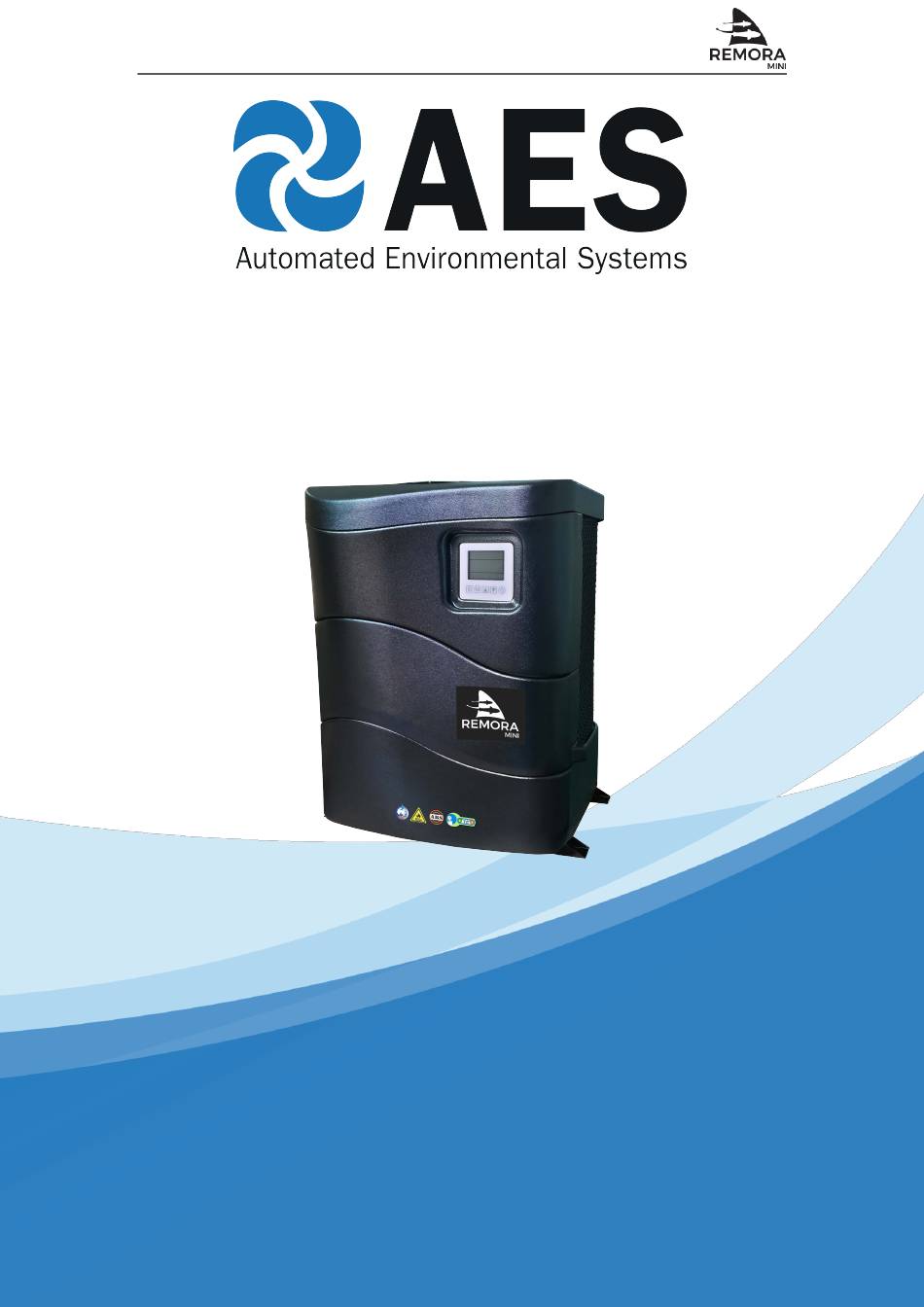

- Page 1 MANUAL POOL HEAT PUMP Remora Mini Swimming Pool Heat Pump Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1. PREFACE …………...…………………………………………………….…………………………………………..…………..2 2. CARTON CONTENTS …………...………………………….…………….…………………………………..…..………..5 3. OVERVIEW OF THE UNIT ……………………………………………………………………………..……………….……6 4. EXPLODED VIEW …………………………..……………………………………………………………..……………….……7 5. INSTALLATION AND CONNECTION …………………………………………..………..………..……………….……8 5.1 Installation Illustration …………………………………………………..…………………..……………….……8 Swimming Pool Heat Pumps Location ….…………………………..…………………..……………….……8 How Close to Your Pool? ….…………..……………………………………………………..……………….……9 Swimming Pool Heat Pumps Plumbing …….………………………………………..….…………….……9... -
Page 3: Preface
1. PREFACE In order to provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacture of this product will not be held responsible if someone is injured or the unit is damaged, as a result of improper installation, debugging, or unnecessary maintenance. - Page 4 WARNING Do not use means to accelerate the defrosting process to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.) Do not pierce or burn.
- Page 5 Caution & Warning 1. Please make sure that the unit and power connection have good earthing, otherwise may cause electrical shock. 2. Directive 2002/96/EC (WEEE): The symbol depicting a crossed-out waste bin that is underneath the appliance indicates that this product, at the end of its useful life, must be handled separately from domestic waste, must be taken to a recycling centre for electric and electronic devices or handed back to the dealer when purchasing an equivalent appliance.
-
Page 6: Carton Contents
2. CARTON CONTENTS Before starting the installation, please make sure that all following items are found inside the box. Carton Box Item Image Quantity Swimming pool heat pump Operation and Installation Manual Winter Cover Accessories 1 (Set) - 5 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk... -
Page 7: Overview Of The Unit
3. OVERVIEW OF THE UNIT Model Remora m3, Remora m5, Remora m7 647mm 480mm 98mm 257mm 530mm 506mm 180mm 102mm - 6 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk... -
Page 8: Exploded View
4. EXPLODED VIEW - 1 - Top cover 11 Plastic bottom panel Fan grill 12 Metal bottom plate Pressure gauge (Not available for mini units) 13 Front panel Support frame 14 Wired controller Fan blade 15 Electrical control box Fan motor 16 Compressor Evaporator 17 4-way valve... -
Page 9: Installation And Connection
5. INSTALLATION AND CONNECTION 5.1 Installation Illustration Installation items: The factory only provides the main unit, the other items in the illustration are necessary spare parts for the water system, that provided by users or the installer. Attention: Please follow these steps when using for the first time 1. -
Page 10: How Close To Your Pool
5.3 How Close To Your Pool? Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the distance from the pool, the greater the heat loss from the piping. 5.4 Swimming Pool Heat Pumps Plumbing The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass. -
Page 11: Swimming Pool Heat Pumps Electrical Wiring
Condensation: Since the Heat pump cools down the air about 4 -5 , water may condense on the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as several litres an hour. The water will run down the fins into the basepan and drain out through the barbed plastic condensation drain fitting on the side of the basepan. -
Page 12: Operating The Unit
6. OPERATING THE UNIT This is achieved via the Digital Controller. Basic controller functions Turning the heat pump ‘ON’/’OFF’. 24 hour time clock. Timer ‘ON’ and timer ‘OFF’. Parameter adjustment. 6.1 User interface NEVER LET THE DIGITAL CONTROLLER GET WET. THIS MAY CAUSE AN ELECTRIC SHOCK OR FIRE. NEVER PRESS THE BUTTONS OF THE DIGITAL CONTROLLER WITH A HARD, POINTED OBJECT. -
Page 13: Buttons
6.2 Buttons Unit ON/OFF button Under unit unlock status, press this button for 1 second to switch unit ON/OFF. Under other setting status, press this button to return back to main interface. Under locked screen status, press this button for 5 seconds to unlock screen. ... - Page 14 After setting “minute” digit, press to confirm clock settings and go back to main operation interface. Under clock setting interface, if there is no any press on buttons within 30 seconds, will automatically confirm current clock settings and go back to main operation interface.
- Page 15 Cooling mode Press for 5 seconds, can switch different modes: cooling or heaing. Forced defrosting Under unit ON status, press for 5 seconds to enter into forced defrosting. Press for 1 seconds until unit turns off, to cancel defrost. ...
-
Page 16: Parameter Checking And Adjustment
6.4 Parameter checking and adjustment Unit running status query table 1. On main interface, press to check unit running status, use buttons to check each parameter. Please refer to a list of relevant unit running parameters below. 2. Press to go back to main interface screen. Code Parameter Name Description... - Page 17 Parameter settings User parameters (can be adjusted by users.) 1. On main interface screen, press for 5 seconds to enter into user parameter query interface, press buttons to check each parameter. Please refer to the relevant parameter list below. 2. On user parameter query interface, press to enter into parameter setting interface, press buttons to modify parameter value, press...
-
Page 18: System Protections/ Error Codes
7. SYSTEM PROTECTIONS/ ERROR CODES When an error occurs or the protection mode is set automatically, the wired controller will display an error code as below. Code Failure Possible reasons Remedy 1) Reverse position of 2 live Er01 Phase dislocation Wrong connection of live wires wires(3-Phase units only). - Page 19 1) Check sensor 1) Sensor open circuit connection Er16 Coil temp sensor failure 2) Sensor short circuit 2) Replace the sensor 3) Main PCB damaged 3) Replace the main PCB 1) Check sensor 1) Sensor open circuit Compressor exhaust gas temp. connection Er18 sensor failure...
-
Page 20: Maintenance And Inspection
8. MAINTENANCE AND INSPECTION Check the water supply device and release often. You should avoid the condition of no water or air entering into system, as this will influence unit's performance and reliability.You should clear the pool/spa filter regularly to avoid damage to the unit as a result of the dirty of clogged filter. ... - Page 21 No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe- work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
- Page 22 Initial safety checks shall include: . That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking. . That there no live electrical components and wiring are exposed while charging, recovering or purging the system. .
- Page 23 Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. Leak detection methods The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.
- Page 24 Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely.
- Page 25 d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions.
-
Page 26: Wiring Diagram & Electrical Connection
9. WIRING DIAGRAM & ELECTRICAL CONNECTION 9.1 Wiring diagram Please refer to the wiring diagram on the electric box. Models: Remora m3, Remora m5, Remora m7 - 25 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk... -
Page 27: Electrical Connection
9.2 Electrical connection - 26 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk... -
Page 28: Cable Specification
10. CABLE SPECIFICATION The Electrical supply must correspond to that indicated on the appliance. All supply cables have to be sized according to the appliance power and installation requirements. Please refer to table below: Cable Size Heat Pump Model 3 x 1.5mm Remora m3, Remora m5, Remora m7 The above are for references only. - Page 29 NOTES - 28 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
- Page 30 NOTES - 29 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
- Page 31 NOTES - 30 - Automated Environmental Systems Ltd., Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
