PROTEAM G-Silent Inverter
User Manual
Automated Environmental Systems Ltd.
Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk, IP27 0NZ
01842 819130 | sales@automatedenvironmentalsystems.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROTEAM G-Silent G108 and is the answer not in the manual?

Questions and answers

Summary of Contents for AES PROTEAM G-Silent G108

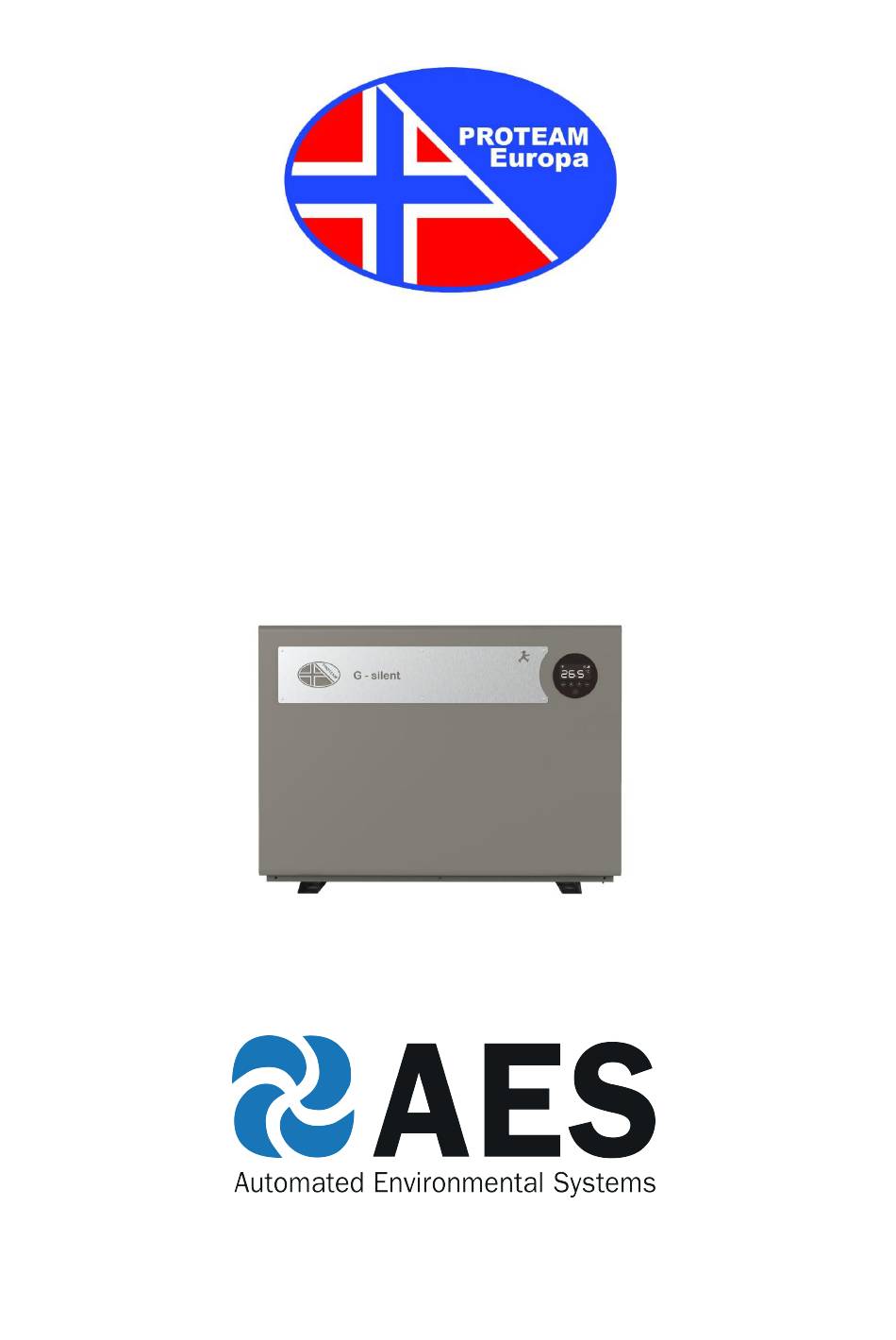

  • Page 1 PROTEAM G-Silent Inverter User Manual Automated Environmental Systems Ltd. Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk, IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
  • Page 2: Table Of Contents

    Table of contents Foreword B. Safety Precautions Warning Attention Safety C. About your heat pump Transportation Accessories Features Operating range Operating modes Technical parameters Dimension D. Installation guidance Installation reminder Wiring Electrical wiring diagram References for protecting devices and cable specification Instructions for Operation Key Function Operation Instruction...
  • Page 3: Foreword

    A. Foreword Thank you for choosing our inverter pool heat pump, which is designed to be more silent and more energy-efficient than all previous models. We hope you'll be able to enjoy your pool for longer now! Thank you! G-Model Inverter Heat Pump...
  • Page 4: Safety Precautions

    B. Safety Precautions Safety Precautions This manual contain important safety instructions. This manual contain important safety instructions. Please always read and obey all safety instructions. Please always read and obey all safety instructions. Environmentally- friendly R32 Refrigerant is used for this heat pump friendly R32 Refrigerant is used for this heat pump 1.
  • Page 5: Attention

    2. Attention a. Please read the following instructions before installation, use and maintenance. b. Installation must be done by professional staff only in accordance with this manual. c. Leakage test must be performed after installation. d. Please don’t stack substances close or on the heat pump, which will reduce efficiency or damage the heat pump.
  • Page 6: About Your Heat Pump

    C. About your heat pump 1. Transportation a. Always keep upright b. Do not lift at or position the heat pump by holding the water connection/union (Otherwise the titanium heat exchanger may be damaged) 2. Accessories Connection of the condensate drainage kit: G-Model Inverter Heat Pump...
  • Page 7: Features

    3. Features DC Twin-rotary inverter compressor (Mitsubishi) DC Brushless fan motor EEV Technology Reverse-cycle defrosting with 4-way valve High efficiency twisted titanium heat exchanger Sensitive and accurate temp control and water temp display High-pressure and low-pressure protection Full protection on electrical system 4.
  • Page 8: Technical Parameters

    6. Technical parameters Model G108 G110 G112 G115 G117 G120 G125 G130 G130T G135T PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating 11.0 13.0 15.0 17.5 21.0 28.0 28.0 35.2 capacity(kW) COP Range 14.0~7.2 14.0~7.2 14.0~7.0 14.5~7.0 15.0~7.0 15.6~7.0 14.8~7.1 16.0~7.2 15.8~7.1...
  • Page 9: Dimension

    7. Dimension Size(mm) Name Model G108 G110 G112 G115 G117 G119 1060 G125 1060 G130 1060 G130T 1060 G135T 1314 ※ Above data is subject to modification for technical improvements/ reasons without notice. Note: The picture above is the specification diagram of the pool heat pump, for technician’s installation and layout reference only.
  • Page 10: Installation Guidance

    D. Installation guidance 1. Installation reminder Only professionals are allowed to install the heat pump. End users who are not qualified professionals should not install by themselves, otherwise the heat pump could be damaged and risky for users’ safety. a. Location and water pipe connection The heat pump should be installed in a well-ventilated place.
  • Page 11: Wiring

    1) The frame must be fixed with bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and secure; the brackets must be strong enough and have antirust treatment. 2) Please don’t place objects that could block the air flow near the inlet or outlet area; there should be no obstructions within at least 50cm (500mm / 20”) of the back, and sides of the unit (see figure above), or the efficiency of the heat pump could be reduced or it could even not work at all;...
  • Page 12: Electrical Wiring Diagram

    3. Electrical wiring diagram a. For power supply: 230V 50Hz Distribution Box (provided by customer) Swimming Pool Heat Pump Wiring Board Power Cable Power Supply Fuse Breaker 230V 50Hz Earthing For power supply: 400V 50Hz Distribution Box (provided by customer) Swimming Pool Heat Pump Wiring Board Power Cable Power Supply...
  • Page 13: Instructions For Operation

    E. Instructions for Operation 1. Key Function Symbol Heating & cooling models 1. Power On/Off 2. Wi-Fi setting 1. Lock/Unlock Screen 2. Heating mode (18-40°C) 3. Cooling mode (12-30°C) 4. Auto mode (12-40°C) 1. Boost 2. Silence Temperature Setting Attention: i.
  • Page 14: Operation Instruction

    2. Operation Instruction a. Screen Lock 1) Press “ ” for 3 seconds to lock or unlock the screen 2) Automatic Lock Period: 30 seconds if no operation b. Power On Press “ ” for 3 seconds to unlock screen. Press “ ”...
  • Page 15 e. Wi-Fi “ ” (refer to instructions at the back of the manual) When the screen is on, press “ ”for 3 seconds; when “ ” is flashing, enter Wi-Fi connection. Connect the Wi-Fi on your mobile phone and enter a password, then it will be possible to control the unit by Wi-Fi using the APP.
  • Page 16: Testing

    F. Testing 1. Inspect heat pump before use a. The ventilating device and outlets are operating adequately and are not obstructed. b. It is prohibited to install refrigeration pipe or components in corrosive environment. c. Inspect the electrical wiring according to the electrical wiring diagram and ground connection.
  • Page 17: Trial

    3. Trial The user must “Start the swimming pool filtration pump before the unit and turn off the unit before stopping the pool filtration pump”, or the machine will be damaged. Before starting the heat pump, please check for any water leakage. In order to protect itself, the heat pump is equipped with a time lag starting function: the fan will start working 1 minute before the compressor when starting the machine, and it will stop running 1 minute after the compressor when the machine is switched off.
  • Page 18: Maintenance

    G. Maintenance “CUT OFF” power supply to the heat pump before cleaning, examination and repair 1. In winter, when the heat pump is not in use: a. Cut off power supply to prevent any damage to the unit. b. Drain all water clear from the unit. Make sure all water is out. c.
  • Page 19: Trouble Shooting For Common Faults

    H. Trouble shooting for common faults 1. Repairing Guidance ----------------------------------------------------------------------------------------------------------------------------------------- WARNING: If repair or disposal of the unit is required, please contact the nearest authorized service center. Requirements for Service Personnel Technicians involved with any kind of work involving the refrigerant circuit should hold a current valid certificate/qualification from an industry-accredited authority, which authorizes them to handle refrigerants safely in accordance with industry-recognized standards and regulations.
  • Page 20 2. Failure solution and code ---------------------------------------------------------------------------------------------------------------------------------------- Failure Reason Solution No power Wait until the power is back on Power switch is off Switch on the power Heat pump doesn’t run Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker Evaporator blocked Remove obstructions...
  • Page 21 Protection & Failure code Display Protection code description No water protection Power supply exceeds operating range Excessive temp difference between inlet and outlet water (insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure code description High-pressure protection Low-pressure protection 3-phase sequence protection (three-phase only)
  • Page 22: Water Pump Control Connection

    I. Water pump control control connection Water pump: 230V voltage, >500W capacity Water pump: 230V voltage, Breaker/fuse Breaker/fuse Power cable (Customer prepare) (Customer prepare) Earthing Power Supply 230V~/50Hz Customer remote Customer remote control control switch switch connector connector Breaker/fuse Water Water Pump (Customer prepare) (Customer prepare)
  • Page 23 Water pump: 230V voltage, >500W capacity Water pump: 230V voltage, Breaker/fuse Breaker/fuse Power cable (Customer prepare) (Customer prepare) Earthing Power Supply 230V~/50Hz Customer remote control switch connector Breaker/fuse Water Pump (Customer prepare) (Customer prepare) Contactor Power Supply 230V~/50Hz Earthing G-Model Inverter Heat Pump...
  • Page 24 Water pump: 400 400V voltage Breaker/fuse (Customer prepare Breaker/fuse (Customer prepare Power Supply Power cable 230V~/50Hz Earthing Customer remote control switch connector Water Pump Breaker/fuse (Customer prepare) (Customer prepare) Contactor Power Supply 400V~/50Hz Earthing Load on connection to the heat pump over 500 Watt must have an external contactor Load on connection to the heat pump over 500 Watt must have an external contactor Load on connection to the heat pump over 500 Watt must have an external contactor which is operated by the heat pump.
  • Page 25 Water pump control and timer connection Water pump control and timer connection 1: Water/filtration pump timern 2: Water/filtration pump wiring of Heat Pump 2: Water/filtration pump wiring of Heat Pump Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, Note: The installer should connect 1 parallel with 2 (as above picture).
  • Page 26: Wi-Fi Operation

    J. Wi-Fi operation G-Model Inverter Heat Pump Inverter Heat Pump...
  • Page 27 G-Model Inverter Heat Pump...
  • Page 28 G-Model Inverter Heat Pump...
  • Page 29 G-Model Inverter Heat Pump...
  • Page 30 G-Model Inverter Heat Pump...
  • Page 31 G-Model Inverter Heat Pump...
  • Page 32 AQ05MC-R32 Automated Environmental Systems Ltd. Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk, IP27 0NZ 01842 819130 | sales@automatedenvironmentalsystems.co.uk...
