Multirall™ 200
Overhead lift
Instructions for Use
Liko
Multirall
200 overhead lift
TM
TM

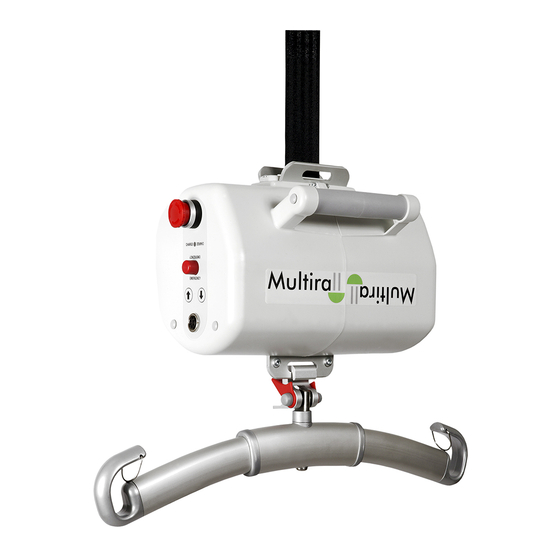

Multirall™ 200 overhead lift is a general-purpose lift
with the intended use in; health care, intensive care and
rehabilitation. Multirall 200 overhead lift is easy to move
between facilities and useful for room-to-room transitions.
Multirall™ 200 overhead lift can be mounted to the
rail carriage in two different ways;

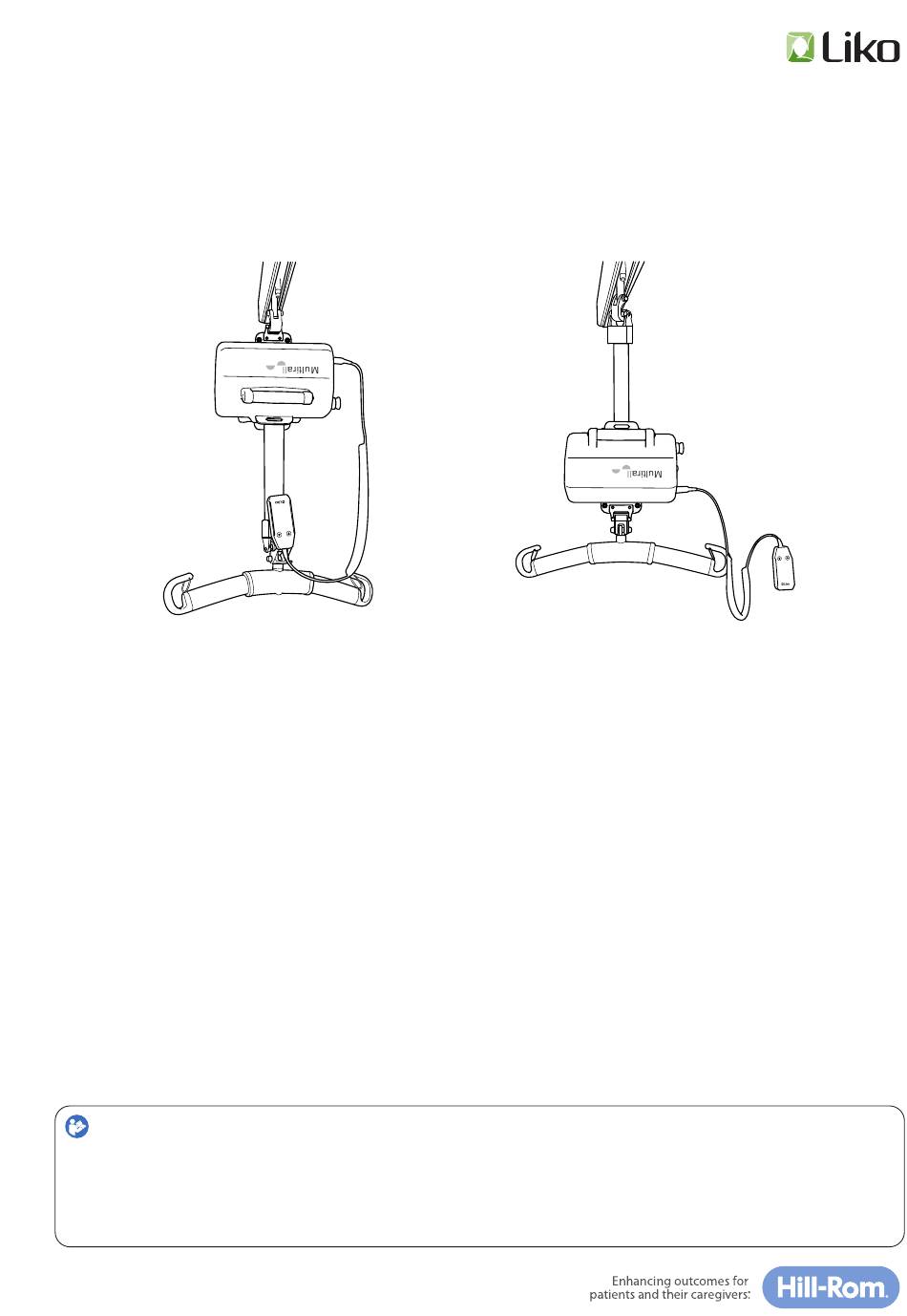

- mounted with the lift strap under the lift unit (fig. 1), or
- mounted with the lift strap above the lift unit (fig. 2).
Intended for use in all common lift and transfer situations,
for example, between bed/wheelchair, to/ from floor,
toilet visits, gait training, and for horizontal lifts with
stretchers.
In this document, the person being lifted is referred to as the patient, and the person helping is referred to as the caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient lift and
lifting accessories before use. It is important to completely understand the contents of the instructions for use. The equipment
should only be used by trained personnel. Ensure that the lifting accessories are suitable for the lift used. Exercise care and caution
during use. As a caregiver, you are always responsible for the patient's safety. You must be aware of the patient's ability to make it
through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN125103 Rev. 13
ENGLISH 2020
Prod. No. 3130001
Multirall
fig. 1
Product Description
Multirall
fig. 2
Accessories
The Liko™ product range includes several sling models
in many sizes and different designs. Also available as an
accessory is a practical trolley for transfer and storage
of the lift, as well as an Extension Arm, for use when
connecting the liftstrap to the rail carriage.
Multirall™ 200 overhead lift is adapted to Liko
Release System for safe and easy changing of lifting
accessories.
Quick
TM
Advertisement
Table of Contents
Related Manuals for Hill-Rom Liko Multirall 200
Summary of Contents for Hill-Rom Liko Multirall 200
- Page 1 Multirall™ 200 Overhead lift Instructions for Use Liko Multirall 200 overhead lift Prod. No. 3130001 Multirall Multirall fig. 1 fig. 2 Product Description Accessories Multirall™ 200 overhead lift is a general-purpose lift with the intended use in; health care, intensive care and The Liko™...
-
Page 2: Table Of Contents
Table of Contents Symbol Description .......................... 3 Safety Instructions ........................... 4 Definitions ............................5 ........................... 5 Technical Data ............................6 Dimensions EMC Table ............................6 ............................10 Assembly ............................15 Operation ........................17 Charging the Batteries ........................18 Room-to-Room transfer .......................... -
Page 3: Symbol Description
Symbol Description These symbols can be found in this document and/or on the product. Symbol Description For indoor use only. The product has extra protection against electric shock (Insulation Class II). Protection level against electric shock Type B. Warning; this situation requires extra care and attention. Read instructions for use before use. -
Page 4: Safety Instructions
This product is used as a means to perform the lift but is not in contact with the patient; therefore we do not go into the various patient conditions in this instruction for use. Contact your Hill-Rom representative for support and advice. Installation of carriages for Multirall... -
Page 5: Definitions
Definitions 1. Carriage Hook (S65 Carriage with Single Hook) 2. Q-Link II (quick fastener) 3. Q-Link (quick fastener) 4. Emergency stop Multirall 5. End cover 6. Mechanical Emergency Lowering 7. Electrical Emergency Lowering/Raising 8. Contact for hand control 9. Hand control Multirall 10. -
Page 6: Dimensions
Dimensions Ceiling Lateral view (Central Suspension Point) L*** Overhead view Measurements in mm. L*** 1600 Measurements in inch. L*** 10.4 11.6 17.4 12.1 63.0 Min. distance from ceiling to CSP at max. lifting height. Installation dimensions: the distance between the attachment point for the lift unit on the carriage and the CSP at max. lifting height. Lifting interval: the distance between max. - Page 7 Guidance and manufacturer’s declaration – electromagnetic immunity The overhead lift is intended for use in the electromagnetic environment specified below. The custo- mer or the user of the overhead lift should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The hoist shall not move unintentionally while being submitted to disturbances.”...
- Page 8 Guidance and manufacturer’s declaration – electromagnetic immunity The overhead lift is intended for use in the electromagnetic environment specified below. The custo- mer or the user of the overhead lift should assure that it is used in such an environment. ”Essential performance according to the manufacturer: The hoist shall not move unintentionally while being submitted to disturbances.”...
- Page 9 Recommended separation distances between portable and mobile RF communications equipment and the overhead lift The overhead lift is intended for use in an electromagnetic environment in which radiated RF distur- bances are controlled. The customer or the user of the overhead lift can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the overhead lift as recommended below, according to the maximum output power of the communications equipment.
-
Page 10: Assembly
Assembly Approved combinations See individual combinations 1, 2 and 3, below. Note! no other combinations are allowed, whether the parts are Liko products or products from another company. Combination 1: Q-Link or Q-Link II, # 3136015, # 3136016, # 3136040 Q-Link: Available as a service part only... - Page 11 Assembly to Carriage Hook for MR/LR: Before the first use, • Charge the lift’s battery for at least 8 hours, see chapter “Charging the Batteries”. • Connect the Handcontrol MR-2 (Prod. No. 3136001) to the contact for handcontrol on the lift unit. Multirall™...
- Page 12 Alt. B, with the lift strap under the lift unit This alternative is recommended in cases where the lift is to be installed in the same rail system for a longer period of time without being moved. 1. Insert the Adapter MR/LR in to the universal Connect the Adapter MR/LR in to the Carriage Hook for MR/LR.
- Page 13 Assembly to Carriage S65 with single hook Before the first use, • Charge the lift’s battery for at least 8 hours, see chapter “Charging the Batteries”. • Connect the Handcontrol MR-2 (Prod. No. 3136001) to the contact for handcontrol on the lift unit. Multirall™...
- Page 14 4. Multirall™ overhead lift is now properly mounted and Before lifting it is important to ensure that the Q-Link ready for use. or Q-Link II is securely fastened to the carriage hook. If this is not the case, repeat steps 1-4 before starting a lift. Remove the lift strap from the carriage hook S65, using the: Extension Arm Multirall Art.
-
Page 15: Operation
Operation Operating Hang-up HandControl Hanger Multirall™ 200 overhead lift is operated by lightly pressing the buttons on the When not in use, the hand control hand control. The arrows indicate the direction of movement. The movement can be hung on the Hang-up stops when the buttons are released. - Page 16 Activate Reset Emergency Stop Charge Indicator Enable the emergency stop: press the red button. Two indicators will warn when the battery has a low charge: Reset the emergency stop: turn the button in the direction indicated • buzzer that sounds when lifting by the arrows on the button.
-
Page 17: Charging The Batteries
Charging the Batteries In order to ensure maximum battery life, it is important to charge the batteries regularly. We recommend that you charge the batteries after use or every night. The batteries are fully charged after approximately 8 hours. When fully charged, batteries in good condition are sufficient for approximately 60 lift cycles. -
Page 18: Room-To-Room Transfer
Room-to-Room transfer The Liko R2R (Room-to-Room) system is an effective solution for safe and easy transfer of patients between two or more rooms. The R2R system is mounted without making openings in walls over doors, and full isolation is therefore retained between the rooms supported by the system. - Page 19 Lower the Multirall™ 200 overhead lift Disconnect the lift strap from the carriage/extension belt in room 1 until the Room-to-Room Strap carries and connect it to the carriage/extension belt in room 2. To prevent the lift strap the full weight of the patient. Then run from twisting, which in turn may cause the SSP limit switch to activate out an extra 10 cm (4 in) of lift strap to (see p.
-
Page 20: Maximum Load
300 kg (660 lbs). In this case, the maximum load of 200 kg (440 lbs.) applies to the assembled lift system. Check the markings on the lift and lifting accessory or contact your Hill-Rom representative if you have any questions. - Page 21 3156074 - 3156076). The Quick-Release Hook TDM fits the Sling Cross-bar 450 and 670 Prod. No. 3156502 Prod. No. 3156508 (prod. no. 3156021 and 3156018) and Universal TwinBar 670 (prod. no. 3156077). Contact your Hill-Rom representative for more information. Stretchers Multirall can be used for horizontal lifting in combination with Liko OctoStretch Prod.
- Page 22 Parking Panel 1500, LR/MR Prod. No. 3126080 Complete the Parking Panel with appropriate Quick Reference Guide, Hook for SlingBar, Hook for Accessories, charger and, if necessary, Bracket for Charger. Contact your Hill-Rom representative for more information. www.hillrom.com 7EN125103 Rev. 13 • 2020...
-
Page 23: Simple Troubleshooting
4. Try to lower the lift, the limit switch might be engaged. 5. If the lift still does not work satisfactorily, please contact Hill-Rom. The lift emits a repeated sound or 1. Charge the battery immediately. light signal. If the lift still does not work satisfactorily, please contact Hill-Rom. -
Page 24: Recycling Instructions
Recycling Instructions Lead battery (Pb) Waste of Electrical and Electronic Equipment (WEEE) Old batteries are to be deposited at the nearest recycling station or given to personnel authorized by Hillrom. Multirall overhead lift comply with the Directive 2012/19/EEC on waste electrical and electronic equipment. Hillrom evaluates and provides guidance to its users on the safe handling and disposal of its devices to aid in the prevention of injury, including, but not limited to: cuts, punctures of the skin, abrasions, and any required cleaning and disinfection of the medical device after use and prior to its disposal. - Page 25 The trainer should supervise the trainee until the trainee can clean and disinfect the lift as instructed. Hill-Rom recommends to clean and disinfect the lift between patient use and regularly during extended patient stays.
- Page 26 Step 1: Cleaning 1. As necessary, first remove visible soil from the lift with a cloth moistened with warm water and a neutral, approved cleaner/disinfectant. See "Application of commonly used Cleaning / Disinfectants on Liko products." Do not use a cloth that is dripping wet. •...
- Page 27 www.hillrom.com 7EN125103 Rev. 13 • 2020...
-
Page 28: Inspection And Maintenance
Hill-Rom and using original Liko spare parts. Service activities are not allowed with the patient in the lift. Service Agreement Hill-Rom offers the opportunity to enter into service contracts for the maintenance and periodic inspection of your Liko products. Expected Service Life (Life Time) The product has an expected life time of 10 years when correctly handled, serviced and periodically inspected in accordance with Liko instructions.
